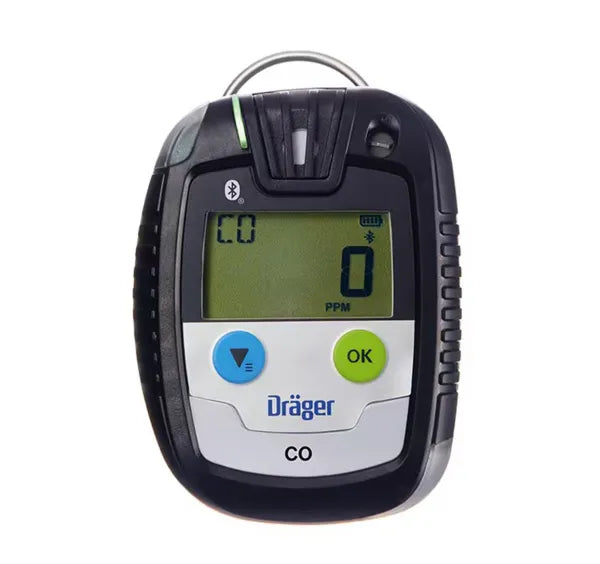

Draeger Pac 6500 Single Gas Detector
The Draeger Pac 6500 is a highly reliable single-gas detection device designed for continuous monitoring in industrial environments. It provides fast, accurate alerts for hazardous gases such as Carbon Monoxide (CO), Hydrogen Sulphide (H₂S), Sulfur Dioxide (SO₂), or Oxygen (O₂). With customizable alarm thresholds for both short-term and time-weighted exposures, the Pac 6500 adapts to workplace safety requirements. Its rugged IP68-rated housing protects against dust, water, and impacts, making it ideal for extreme conditions.
Equipped with responsive sensors, the Pac 6500 offers a broad measurement range (e.g., CO: 1–1,999 ppm, H₂S: 0.4–100 ppm). A D-Light indicator confirms device readiness, while color-coded housings reduce the risk of errors. The large, backlit display provides continuous visibility of gas concentrations, battery status, and device condition. In hazardous environments, 360° visual, audible, and vibrating alarms ensure immediate awareness. Data logging with Bluetooth connectivity enables real-time monitoring, downloadable reports, and worker tracking via Dräger Gas Detection Connect.
Standard Features
- Reliable single-gas detection for CO, H₂S, SO₂, or O₂
- Fast and precise alerts with broad measurement ranges
- Durable, shock-resistant housing with IP68 protection
- D-Light readiness indicator and color-coded housings
- Large backlit display showing gas levels and battery life
- 360° alarms: audible, vibrating, and dual LED visual alerts
- Customizable alarm thresholds for workplace compliance
- Data logging with timestamps for safety analysis
- Bluetooth support for real-time transmission and tracking
- Replaceable external membrane filter for dust and liquid protection
Testing & Calibration
- Compatible with Dräger X-dock calibration station
- Automated bump testing with low gas consumption
- Fast, cost-efficient function checks
- Streamlined calibration record management
Specifications
| Type | Single-Gas Detector |
| Gas Types | CO, H₂S, SO₂, O₂ |
| Weight | Approx. 3.7 oz (106 g) / 4.0 oz (113 g with clip) |
| Dimensions (inches) | 2.5 x 3.3 x 0.8 in (64 x 84 x 20 mm) |
| Operating Temperature | -22°F to 131°F (-30°C to +55°C), briefly -40°F (-40°C) |
| Humidity Range | 10–90% RH (non-condensing) |
| Alarms | Visual, Vibrating, Audible (360°) |
| Battery Life | Min. 2 years (O₂ sensors: 12 months) |
| Air Pressure Range | 700 to 1,300 hPa |
| Protection Rating | IP68 (dust and water resistant) |
| Approvals | ATEX, IECEx, CSA (Canada & USA), EAC, MED |
Service Life: Minimum 2 years from first activation
Please Note: Once activated, the device operates continuously for its service life and cannot be shut down. Activated units are non-returnable. Unactivated units may be eligible for return.
