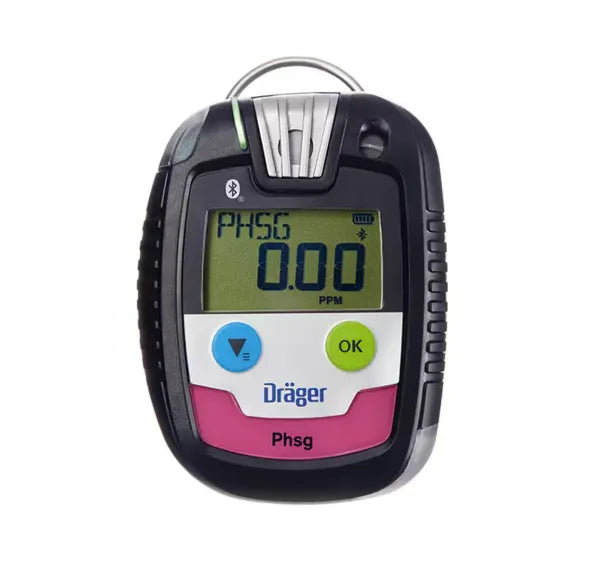

Draeger Pac 8000 Single Gas Detector
The Draeger Pac 8000 is a reliable and robust personal gas detector designed for demanding industrial environments. Built to detect a wide range of hazardous gases, including special gases such as ozone, phosgene, chlorine, hydrogen cyanide, ammonia, nitrogen dioxide, and phosphine, it offers dependable protection for workers in high-risk areas. With advanced sensor technology, the Pac 8000 ensures quick response times even in extreme conditions, providing critical alerts when gas concentrations exceed safe levels.
Its IP68-rated housing makes it shockproof, chemical-resistant, and water/dust resistant, while the replaceable membrane filter provides extra protection for sensors. A large, backlit display clearly shows gas concentrations, battery life, and operating status. In hazardous situations, a 360° alarm system—visual, audible, and vibrating—ensures alerts are noticed immediately. With a robust data logger and Bluetooth connectivity, the Pac 8000 supports real-time monitoring, event recording, and integration with the Dräger Gas Detection Connect system.
Standard Features
- Wide detection capability for standard and special gases
- Fast response time with advanced sensor technology
- Customizable alarm thresholds for TWA and STEL limits
- Durable IP68 housing – shockproof, chemical- and water-resistant
- Large backlit display for clear readings
- 360° alarms: audible, visual, and vibrating alerts
- Comprehensive event and peak value data logging
- Bluetooth support for real-time monitoring and worker tracking
- Replaceable external membrane filter for dust/liquid protection
- Low operating costs with long-life sensors and battery
Testing & Calibration
- Compatible with Dräger X-dock calibration station
- Automated bump tests with minimal gas consumption
- Efficient calibration and function test management
- Streamlined compliance record storage
Specifications
| Type | Single-Gas Detector |
| Gas Types | CO₂, Cl₂, HCN, NH₃, NO₂, PH₃, O₃, COCI₂, and more |
| Weight | Approx. 3.7 oz (106 g) / 4.0 oz (113 g with clip) |
| Dimensions (inches) | 2.5 x 3.3 x 0.8 in (64 x 84 x 20 mm) |
| Operating Temperature | -22°F to 131°F (-30°C to +55°C), briefly -40°F (-40°C) |
| Humidity Range | 10–90% RH (non-condensing) |
| Alarms | Visual, Vibrating, Audible (360°) |
| Battery Life | Min. 2 years (O₂/dual sensors: 12 months) |
| Air Pressure Range | 700 to 1,300 hPa |
| Protection Rating | IP68 (dust and water resistant) |
| Approvals | cCSAus, IECEx, ATEX, CE |
Service Life: Minimum 2 years from first activation
Please Note: Once activated, the device operates continuously for its service life and cannot be shut down. Activated units are non-returnable. Unactivated units may be eligible for return.
