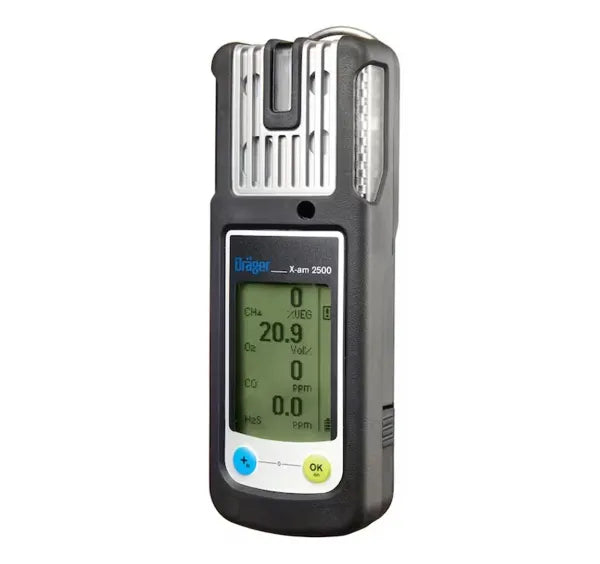

Draeger X-AM 2500 Multi Gas Detector
The Draeger X-AM 2500 is a compact and reliable multi-gas detector, designed for monitoring up to four gases simultaneously, including oxygen, carbon monoxide, hydrogen sulfide, sulfur dioxide, nitrogen dioxide, and explosive gases. With its durable electrochemical sensors and poison-resistant Ex sensor, it delivers accurate readings and a long service life, ensuring maximum safety in demanding industrial environments such as refineries, chemical plants, and confined spaces.
Lightweight, ergonomic, and IP67-rated for water and dust resistance, the X-AM 2500 ensures high comfort and durability. Its intuitive interface with a clear display, combined with audible, visual, and vibration alarms, provides quick alerts to hazardous conditions. Compatible with Dräger’s Bump Test Station and X-dock, it allows efficient testing and calibration with minimal gas usage, reducing maintenance costs while enhancing worker safety.
Standard Features
- Monitors up to 4 gases simultaneously (O₂, CO, H₂S, SO₂, NO₂, and flammable gases)
- Durable electrochemical sensors with long service life (O₂ sensor > 5 years)
- Poison-resistant catalytic Ex sensor (over 4 years lifespan)
- Approved for Zone 0 use in explosion-hazard areas
- Switch easily between diffusion and pump modes (up to 45m hose)
- IP67 protection against water and dust
- Clear display with intuitive interface
- Lightweight, ergonomic design with high wearing comfort
- Audible, visual, and vibration 360° alarms
- Compatible with Dräger Bump Test Station and X-dock
- Rechargeable or alkaline batteries with >12 hours runtime
Advanced Technology Benefits
- Silicone- and H₂S-resistant Ex sensor for extended reliability
- Efficient testing with minimal bump test gas consumption
- Large memory with optimized data compression for event logging
- Optional external pump ideal for confined space entry and leak detection
- Smart configuration via Dräger Gas Detection Connect
Specifications
| Dimensions (W x H x D) | 48 x 130 x 44 mm (1.85″ x 5.12″ x 1.73″) |
| Weight | 220 – 250 g (8 – 9 oz) |
| Operating Temperature | -20 °C to +50 °C (-4 °F to +122 °F) |
| Operating Pressure | 700 – 1,300 hPa |
| Humidity Range | 10 – 95% RH (non-condensing) |
| Protection Class | IP67 |
| Alarms | Visual (360°), Audible (>90 dB), Vibrating |
| Operating Time | > 12 h with alkaline or NiMH, > 250 h without Ex sensor |
| Charging Time | < 4 h |
| Pump Operation | Max. hose length 45 m (148 ft) |
| Data Logger | High-capacity with optimized data compression |
| Approvals | ATEX, IECEx, USA/Canada, CE, MED, MER, EAC |
Additional Information: X-am Pump ✓ | Bump Test Station ✓ | X-dock Station ✓ | Smart Configuration ✓ | Bluetooth ✗ | Dual Sensor ✗
Please contact us for inquiries or bulk orders in UAE, Saudi Arabia,Canada,USA, Bahrain, Oman, Kuwait & Qatar.
