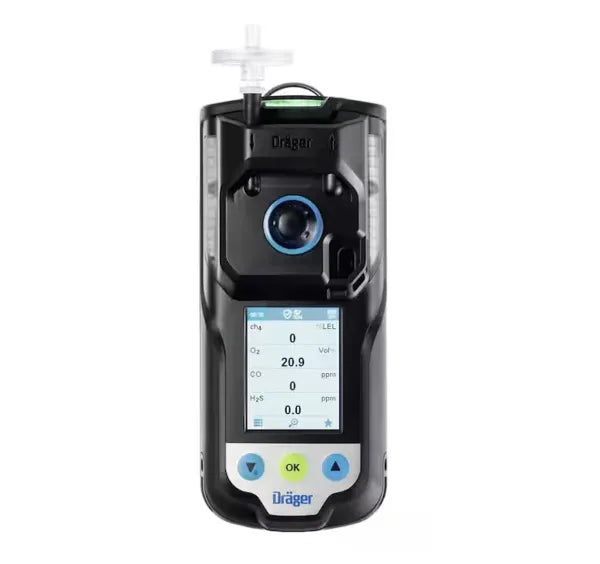

Draeger X-AM 3500 Multi Gas Detector
The Draeger X-AM 3500 is a versatile and reliable multi-gas detector designed for industrial environments and confined space applications. It can simultaneously monitor up to four gases, including flammable gases, vapors, oxygen, carbon monoxide, hydrogen sulfide, and other hazardous substances. With advanced sensor technology, the X-AM 3500 delivers fast and precise detection, ensuring workers are alerted to dangers quickly and effectively.
Engineered with a powerful pump for clearance measurements, it supports hoses up to 45 meters long. Its compact and ergonomic design allows single-handed operation, while the high-contrast color display provides clear readings in challenging conditions. With Bluetooth connectivity, inductive charging, and rugged IP68 protection, the X-AM 3500 combines durability with efficiency for long-term reliability in demanding work environments.
Standard Features
- Simultaneous detection of up to 4 gases (O₂, CO, H₂S, and flammable gases)
- Optimized for pump-assisted clearance measurements with hoses up to 45 m
- Easy switch between diffusion and pump mode with pump adapter
- Color-coded signal lights: green (ready), red (gas alarm), yellow (device alarm)
- Bright LEDs, 100 dB horn, and vibration for unmistakable alarms
- Inductive charging system prevents corrosion and extends device life
- Compact, lightweight, and ergonomic design for single-handed operation
- Bluetooth connectivity for seamless integration with Dräger software
- Compatible with Dräger X-dock for bump tests and calibration
- Durable two-component housing with IP68 rating
Advanced Technology Benefits
- External validation of combustible gas sensor performance (EN 60079-29-1)
- Fleet management and reporting with Dräger Gas Detection Connect
- Barcoding and RFID options for efficient asset tracking
- Simultaneous charging and measuring outside Ex zones
- Large data logger capacity (up to 600 hours of readings)
- Fast startup – ready for measurement in under 60 seconds
- Extended operating times (up to 120 hours with 3 EC sensors)
Specifications
| Dimensions (H × W × D) | 179 x 77 x 42 mm |
| Weight | Approx. 550 g (depending on sensor configuration, without strap, with pump) |
| Housing | Durable two-component housing |
| Display | High-contrast color display |
| Temperature Range | -20 °C to +50 °C |
| Pressure Range | 700–1300 hPa (measuring), 800–1100 hPa (Ex zones) |
| Humidity Range | 10–90% RH (short-term up to 95%) |
| Alarms | Visual LEDs (red, yellow, green), acoustic multi-tone (100 dB at 30 cm), vibration |
| Ingress Protection | IP68 |
| Power Supply | Rechargeable lithium-ion battery (inductive charging) |
| Operating Times | 24 h (CatEx + 3 EC sensors), 120 h (3 EC sensors only) |
| Charging Time | Approx. 4 h |
| Startup Time | < 60 seconds |
| Data Storage | 24 MB (~600 hours of readings) |
| Pump Operation | Max. hose length 45 m |
| Approvals | ATEX, IECEx, EAC, cCSAus, ANZEx, EMV, RoHS, MED, DNV GL |
| Warranty | 3 years |
Additional Information: Internal Pump ✓ | X-dock ✓ | D-Light ✓ | X-am Pump ✗ | Bump Test Station ✗ | Bluetooth ✗ | Dual Sensors ✗ | Bodyguard Alarm ✗ | Smart Config ✗ | ConHub Support ✗
Please contact us for bulk orders or inquiries across UAE, Saudi Arabia, Canada, USA, Bahrain, Oman, Kuwait & Qatar.
Draeger X-AM 3500 Multi Gas Detector
The Draeger X-AM 3500 is a versatile and reliable multi-gas detector designed for industrial environments and confined space applications. It can simultaneously monitor up to four gases, including flammable gases, vapors, oxygen, carbon monoxide, hydrogen sulfide, and other hazardous substances. With advanced sensor technology, the X-AM 3500 delivers fast and precise detection, ensuring workers are alerted to dangers quickly and effectively.
Engineered with a powerful pump for clearance measurements, it supports hoses up to 45 meters long. Its compact and ergonomic design allows single-handed operation, while the high-contrast color display provides clear readings in challenging conditions. With Bluetooth connectivity, inductive charging, and rugged IP68 protection, the X-AM 3500 combines durability with efficiency for long-term reliability in demanding work environments.
Standard Features
- Simultaneous detection of up to 4 gases (O₂, CO, H₂S, and flammable gases)
- Optimized for pump-assisted clearance measurements with hoses up to 45 m
- Easy switch between diffusion and pump mode with pump adapter
- Color-coded signal lights: green (ready), red (gas alarm), yellow (device alarm)
- Bright LEDs, 100 dB horn, and vibration for unmistakable alarms
- Inductive charging system prevents corrosion and extends device life
- Compact, lightweight, and ergonomic design for single-handed operation
- Bluetooth connectivity for seamless integration with Dräger software
- Compatible with Dräger X-dock for bump tests and calibration
- Durable two-component housing with IP68 rating
Advanced Technology Benefits
- External validation of combustible gas sensor performance (EN 60079-29-1)
- Fleet management and reporting with Dräger Gas Detection Connect
- Barcoding and RFID options for efficient asset tracking
- Simultaneous charging and measuring outside Ex zones
- Large data logger capacity (up to 600 hours of readings)
- Fast startup – ready for measurement in under 60 seconds
- Extended operating times (up to 120 hours with 3 EC sensors)
Specifications
| Dimensions (H × W × D) | 179 x 77 x 42 mm |
| Weight | Approx. 550 g (depending on sensor configuration, without strap, with pump) |
| Housing | Durable two-component housing |
| Display | High-contrast color display |
| Temperature Range | -20 °C to +50 °C |
| Pressure Range | 700–1300 hPa (measuring), 800–1100 hPa (Ex zones) |
| Humidity Range | 10–90% RH (short-term up to 95%) |
| Alarms | Visual LEDs (red, yellow, green), acoustic multi-tone (100 dB at 30 cm), vibration |
| Ingress Protection | IP68 |
| Power Supply | Rechargeable lithium-ion battery (inductive charging) |
| Operating Times | 24 h (CatEx + 3 EC sensors), 120 h (3 EC sensors only) |
| Charging Time | Approx. 4 h |
| Startup Time | < 60 seconds |
| Data Storage | 24 MB (~600 hours of readings) |
| Pump Operation | Max. hose length 45 m |
| Approvals | ATEX, IECEx, EAC, cCSAus, ANZEx, EMV, RoHS, MED, DNV GL |
| Warranty | 3 years |
Additional Information: Internal Pump ✓ | X-dock ✓ | D-Light ✓ | X-am Pump ✗ | Bump Test Station ✗ | Bluetooth ✗ | Dual Sensors ✗ | Bodyguard Alarm ✗ | Smart Config ✗ | ConHub Support ✗
Please contact us for bulk orders or inquiries across UAE, Saudi Arabia, Canada, USA, Bahrain, Oman, Kuwait & Qatar.
