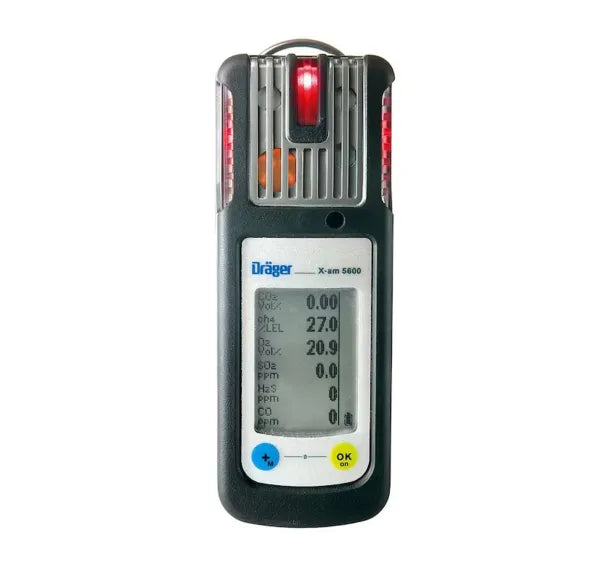

Draeger X-AM 5600 Multi Gas Detector
The Dräger X-am 5600 is a compact, advanced multi-gas detector capable of monitoring up to six gases simultaneously. Designed with infrared (IR) sensor technology, it provides accurate detection of combustible and toxic gases, carbon dioxide (CO2), hydrogen, and oxygen levels. Its lightweight, ergonomic design and two-button interface make it easy to use for extended periods, even in harsh industrial environments.
With infrared sensors lasting up to 8 years and reduced calibration requirements, the X-am 5600 lowers ownership costs while ensuring maximum safety. It is IP67-rated, resistant to water and dust, and suitable for Ex-zone 0 environments. The device can be combined with the Dräger X-zone 5000 for area monitoring, making it highly versatile for industrial safety applications.
Standard Features
- Small, lightweight, and easy to operate with one hand
- Durable infrared sensor technology with up to 8-year lifespan
- Low maintenance – calibration required only once every 12 months
- Detects explosive, combustible, and toxic gases plus oxygen
- Accurate CO2 monitoring with optional dual IR CO2/Ex sensor
- Hydrogen detection using IR Ex and electrochemical H2 sensors
- Water- and dust-resistant (IP67) with integrated rubber boot
- Optional external pump with up to 30 m hose for pre-entry checks
- Suitable for Ex-zone 0 (continuous explosive atmosphere)
- Compatible with Dräger X-zone 5000 for wireless area monitoring
Advanced Technology Benefits
- Infrared sensors provide poison-free, stable, and fast gas detection
- High-contrast display and intuitive interface for easy operation
- Data logging capability with over 1,000 hours of storage
- Integration with Dräger X-dock for calibration and compliance
- Configurable sensor setup using Dräger CC-Vision software
- Wireless area protection by linking up to 25 X-zone 5000 units
Specifications
| Type | Multi-Gas (up to 6 gases) |
| Dimensions | 48 x 130 x 44 mm |
| Weight | 220–250 g |
| Temperature Range | -20 to +50 °C (down to -40 °C for 15 mins) |
| Humidity Range | 10%–95% r.h. |
| Alarms | Visual 360°, Audible >90 dB, Vibrating |
| Operating Time | ~12 hrs (standard), >250 hrs without Ex sensor |
| Charging Time | < 4 hours |
| Data Logging | >1,000 hours with 6 gases (infrared download) |
| Ingress Protection | IP67 |
| Pump Operation | Up to 30 m hose (optional pump) |
| Approvals | ATEX, IECEx, CSA, CE, MED, EAC |
Please Note: Sensor configuration is customizable based on application needs. Performance and runtime may vary depending on selected sensors and operating conditions.
