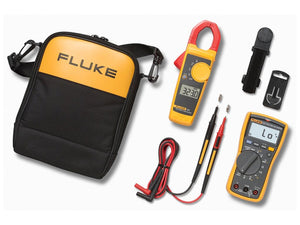

Fluke 117/323 - Electrician’s Combo Kit with 117 Multimeter and 323 Clamp Meter
UPC: 095969659222 | Model: Fluke 117/323
Fluke 117/323
Compare
TRUE-RMS ELECTRICIAN’S COMBO KIT
- Electrician’s combo package with Fluke 117 and 323

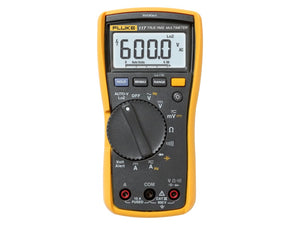

- Fluke 117: Compact true-RMS digital multimeter for electricians
- Fluke 117: Integrated VoltAlert non-contact voltage detection
- Fluke 117: LoZ low input impedance prevents false readings due to ghost voltage
- Fluke 117: Measures AC/DC voltage and current, resistance, capacitance, diode testing, frequency and more
- Fluke 117: Measure up to 600V / 10A AC/DC
- Fluke 323: Rugged, reliable True-RMS clamp meter
- Fluke 323: Measures AC current up to 400A (AC only)
- Fluke 323: Measures AC/DC voltage up to 600V
- Includes TPAK magnetic hanger, TL175 test leads, and soft carrying case
Description
Fluke 117/323 Electrician’s Combo Kit
The Fluke 117/323 combo kit provides two essential tools in one package: the Fluke 117 compact true-RMS digital multimeter and the Fluke 323 True-RMS clamp meter. Together, they cover most residential and commercial electrical testing needs.
The Fluke 117 offers VoltAlert™ non-contact voltage detection, LoZ low input impedance to prevent ghost voltage, AutoVolt automatic AC/DC voltage selection, and True-RMS accuracy for non-linear loads. It measures voltage, current, resistance, continuity, frequency, capacitance, and diode testing.
The Fluke 323 clamp meter delivers accurate True-RMS AC current measurements up to 400 A, and AC/DC voltage up to 600 V, with resistance measurement and continuity detection. Its slim ergonomic design fits easily in tight spaces.
Manufacturer Specifications
| Maximum voltage between any terminal and earth ground | 600 V |
|---|---|
| Surge protection | 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2 |
| Fuse for A input | 11 A, 1000 V FAST Fuse (Fluke PN 803293) |
| Display | Digital: 6,000 counts, updates 4/sec |
| Bar graph | 33 segments, updates 32/sec |
| Operating temperature | -10 °C to +50 °C |
| Storage temperature | -40 °C to +60 °C |
| Battery | 9V Alkaline, NEDA 1604A/IEC 6LR61 |
| Battery life | 400 hours typical, without backlight |
| Measurement Accuracy (Multimeter) | |
| DC millivolts | 600.0 mV / 0.1 mV / 0.5 % + 2 |
| DC volts | 6.000 V (0.001 V), 60.00 V (0.01 V), 600.0 V (0.1 V) |
| Auto volts | 600.0 V / 0.1 V / 2.0 % + 3 (dc, 45–500 Hz), 4.0 % + 3 (500 Hz–1 kHz) |
| AC millivolts (True-RMS) | 600.0 mV / 0.1 mV / 1.0 % + 3 (45–500 Hz), 2.0 % + 3 (500 Hz–1 kHz) |
| AC volts (True-RMS) | 6.000 V (0.001 V), 60.00 V (0.01 V), 600.0 V (0.1 V) |
| Continuity | 600 Ω / 1 Ω / Beeper on < 20 Ω, off > 250 Ω; detects opens/shorts ≥ 500 μs |
| Ohms | 600.0 Ω (0.1 Ω), 6.000 kΩ (0.001 kΩ), 60.00 kΩ (0.01 kΩ), 600.0 kΩ (0.1 kΩ), 6.000 MΩ (0.001 MΩ), 40.00 MΩ (0.01 MΩ) |
| Diode test | 2.000 V / 0.001 V / 0.9 % + 2 |
| Capacitance | 1000 nF (1 nF) to 9999 µF (1 µF) |
| AC amps (True-RMS) | 6.000 A (0.001 A), 10.00 A (0.01 A) / Accuracy: 1.5 % + 3 |
| DC amps | 6.000 A (0.001 A), 10.00 A (0.01 A) / Accuracy: 1.0 % + 3 |
| Frequency (V or A input) | 99.99 Hz (0.01 Hz), 999.9 Hz (0.1 Hz), 9.999 kHz (0.001 kHz), 50.00 kHz (0.01 kHz) / Accuracy: 0.1 % + 2 |
| Clamp Meter (Fluke 323) | |
| AC current | Range: 400.0 A / Accuracy: 2 % ± 5 digits (45–65 Hz), 2.5 % ± 5 digits (65–400 Hz) |
| AC voltage | 600.0 V / Accuracy: 1.5 % ± 5 digits |
| DC voltage | 600.0 V / Accuracy: 1.0 % ± 5 digits |
| Resistance | 400.0 Ω / 4000 Ω / Accuracy: 1 % ± 5 digits |
| Continuity | ≤ 7 Ω |
| Size (H × W × D) | 207 × 75 × 34 mm |
| Max wire diameter | 30 mm (600 MCM) |
| Weight | 265 g |
| Category rating | CAT III 600 V, CAT IV 300 V |
Tech Specs
| Clamp Meters / Clamp Meters Template | |
|---|---|
| True RMS | Yes |
| Maximum Current AC | 400 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 30 MM (1.18 IN) |
| Resistance | Yes |
| Capacitance | No |
| Auto Ranging/Manual | Manual |
| In-Rush Current | No |
| Multimeters Template | |
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Current AC | 10 A |
| Maximum Current DC | 10 A |
| Resolution DC Volts | 0.001 V |
| Resolution AC Volts | 0.001 V |
| Resolution AC Current | 0.001 A |
| Resolution DC Current | 0.001 A |
| # Digit Display | 3.5 |
| Counts | 6000 |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Frequency | Yes |
| Capacitance | Yes |
| Diode Testing | Yes |
| CAT Rating | III, IV |
| CAT Voltage | 600 V (CAT III), 300 V (CAT IV) |
Test Equipment General Attributes
| Unique Features |
Fluke 117 Multimeter: VoltAlert™ non-contact voltage detection, AutoVolt automatic AC/DC selection, LoZ low input impedance, True-RMS, Min/Max/Average recording, LED backlit display, one-handed operation, CAT III 600 V safety rated. Fluke 323 Clamp Meter: 400 A AC measurement, 600 V AC/DC, True-RMS, resistance measurement with continuity detection, slim ergonomic design, CAT III 600 V / CAT IV 300 V safety rated. |
|---|---|
| Warranty | 3 YEARS |
| Safety Approval | CE, CSA, UL |
| Interfaces I/O | Analog Output, Analog Input |
| IP Rating | IP42 |
| Product Weight | 0.58 LBS |
| Product Height | 1.82 IN |
| Product Length | 6.57 IN |
| Product Width | 3.31 IN |
| Data Logging | No |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Battery Type | 9V, AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Singapore |
| UPC | 095969659222 |
