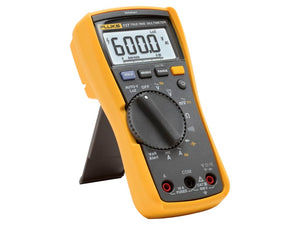

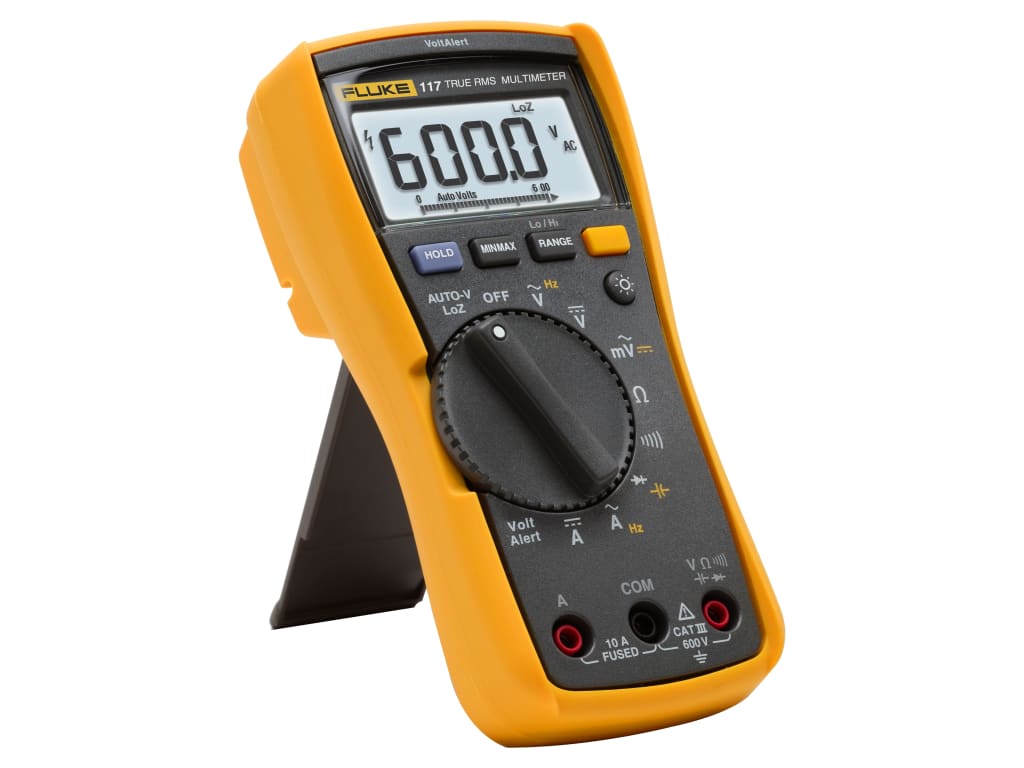

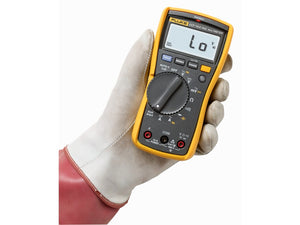

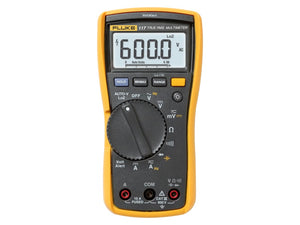

Fluke 117 - Electrician’s Multimeter with Non-Contact Voltage Detection
Rating: 5 (234 Reviews) | Catalog: 2538815 | UPC: 095969324205 | Model: Fluke 117
Fluke 117
Compare
🎉 Free Lead Set with Order - Use Code "ETL5" at checkout - Order yours today and get a free Elenco TL-5 Lead Set
Fluke 117 True-RMS AC/DC Electrician Multimeter with Non-Contact Voltage Detection
- Compact true-RMS digital multimeter for electricians
- Integrated VoltAlert non-contact voltage detection
- LoZ - Low input impedance prevents false readings due to ghost voltage
- AutoVolt feature for automatic AC/DC voltage selection
- Measures AC/DC voltage and current, resistance, capacitance, diode testing, frequency and more
- Measure up to 600V / 10A AC/DC
- 3.5 digits / 6000 counts
- Backlight for use in dimly lit areas
- Compatible with Fluke TPAK magnetic meter hanging kit (sold separately)
- CAT III 600V safety rating
Description
Fluke 117
The Fluke 117 is a compact, true-RMS digital multimeter designed specifically for electricians. With integrated VoltAlert™ non-contact voltage detection and LoZ mode for eliminating ghost voltage, it provides unmatched reliability in real-world conditions. Its AutoVolt function automatically detects AC/DC voltage, while built-in features such as resistance, capacitance, diode, and frequency testing expand versatility. Backlit for use in dimly lit environments, the Fluke 117 is CAT III 600 V safety rated and ergonomically designed for one-handed operation.
Tech Specs
Multimeters Template
| Style | Hand-Held |
|---|---|
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 600 V |
| Resolution AC Volts | 0.1 mV |
| Maximum Voltage DC | 600 V |
| Resolution DC Volts | 0.1 mV |
| Maximum Current AC | 10.0 A |
| Minimum Current AC | 0.001 A (1 mA) |
| Resolution AC Current | 0.001 A (1 mA) |
| Maximum Current DC | 10.00 A |
| Minimum Current DC | 0.001 A (1 mA) |
| Resolution DC Current | 0.001 A (1 mA) |
| Basic Accuracy V DC | 0.5% |
| # Digit Display | 3.5 |
| Counts | 6000 |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | No |
| Diode Testing | Yes |
| CAT Rating | III |
| CAT Voltage | 600 V |
| Overload Protector | Yes |
| Data Hold | Yes |
Test Equipment General Attributes
| Unique Features | • VoltAlert™ non-contact voltage detection • AutoVolt automatic AC/DC selection • Low input impedance (LoZ) to avoid ghost voltage • Large white LED backlight • True-RMS for non-linear loads • Measures 10 A (20 A overload for 30 sec) • Resistance, continuity, frequency, capacitance • Min/Max/Average with elapsed time • Compact ergonomic design • Compatible with ToolPak™ magnetic hanger • CAT III 600 V safety rated |
|---|---|
| Warranty | 3 YEARS |
| Safety Approval | CSA, UL |
| Interfaces I/O | Analog Output, Analog Input |
| IP Rating | IP42 |
| Product Weight | 1.34 LBS |
| Product Height | 1.82 IN |
| Product Length | 6.57 IN |
| Product Width | 3.31 IN |
| Data Logging | No |
| ECCN Number | 3A991 |
| Calibration Included | Factory Calibration |
| Battery Type | 9V |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Singapore |
| UPC | 095969324205 |
