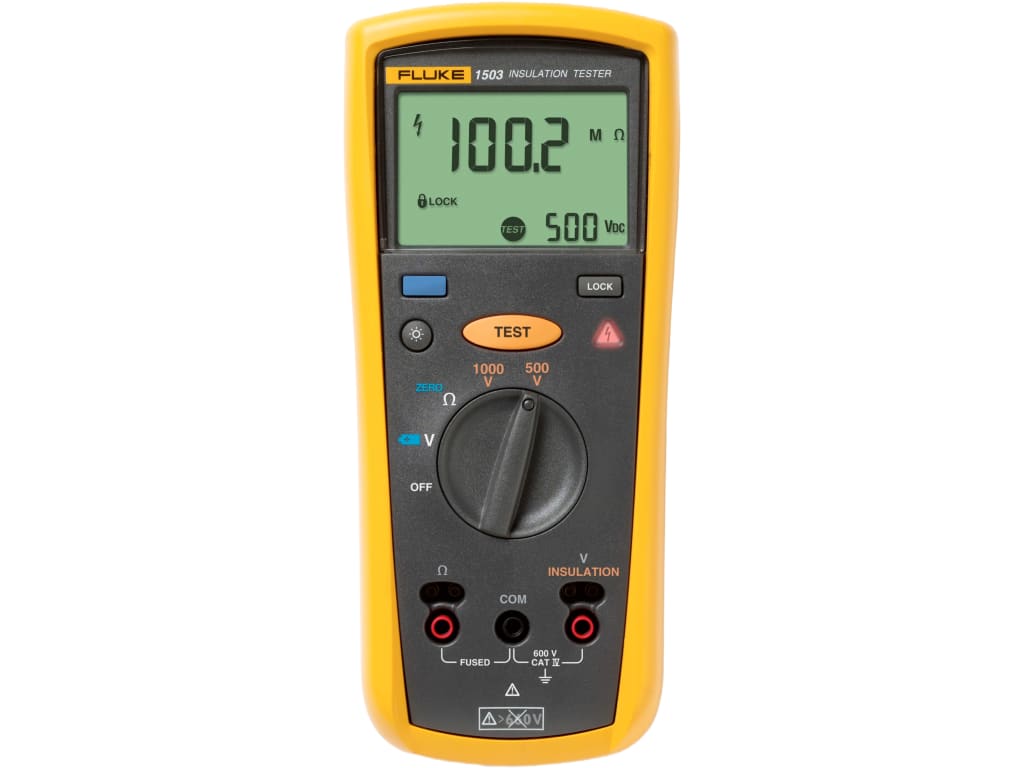

Fluke 1503 Megohmmeter / Insulation Resistance Tester, 600V, 0.1 MΩ – 2 GΩ
- Rugged, compact insulation resistance tester for residential and commercial electricians
- Same form factor as the Fluke 1507 but with fewer features – affordable and efficient
- Insulation test voltages: 500V, 1000V
- Insulation test resistance range: 0.1 MΩ – 2 GΩ
- Live circuit detection prevents insulation test if voltage > 30 V is present
- Measures resistance: 0.01 Ω – 20.00 kΩ
- Measures AC/DC voltage: 0.1 V – 600 V
- Automatic discharge of capacitive voltage for added user protection
- Lo-ohms earth-bond continuity (200 mA)
- Compatible with optional Fluke TPAK magnetic hanging system
Description

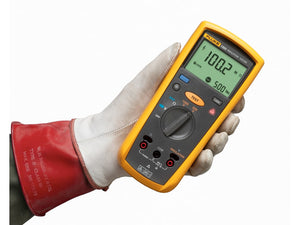

The Fluke 1503 Insulation Resistance Tester is a rugged and compact tool designed for residential and commercial electricians. It delivers reliable insulation resistance testing with a straightforward interface and safety features.
While sharing the same design as the Fluke 1507, the 1503 offers fewer features, making it an affordable choice for common testing needs. It provides live circuit detection, auto discharge of capacitive voltage, and a remote probe option to simplify repetitive or hard-to-reach testing.
Additional Features:
- AC/DC voltage measurement up to 600 V
- Continuity testing with 200 mA current
- Large, backlit display for clear results
- CAT IV 600 V safety rating
- Over 1000 insulation tests on a fresh set of AA batteries
Manufacturer Specifications
| AC/DC Voltage Measurements | |
|---|---|
| Range | 0.1 V – 600 V |
| Accuracy | ± (2% + 3) |
| Input Impedance | 3 MΩ nominal |
| Overload Protection | 600 V rms or DC |
| Earth Bond Resistance | |
| Range | 0.01 Ω – 20.00 kΩ |
| Accuracy | ± (1.5% + 3) |
| Short Circuit Current | > 200 mA |
| Insulation Testing | |
| Range | 0.01 MΩ – 2000 MΩ |
| Test Voltages | 500 V, 1000 V |
| Voltage Accuracy | +20% / -0% |
| Short Circuit Current | 1 mA nominal |
| Live Circuit Indicator | Inhibits test if > 30 V detected |
| Auto Discharge | < 0.5s for C ≤ 1 µF |
| General Specifications | |
| Operating Temperature | -20 °C to 55 °C |
| Storage Temperature | -40 °C to 60 °C |
| Relative Humidity | 0 – 95% (10–30 °C), 0 – 40% (40–55 °C) |
| Safety Rating | CAT IV 600 V |
| Certifications | CSA, TUV |
| Battery Life | ~1000 insulation tests or 2500 continuity tests |
| Dimensions | 5.0 × 10.0 × 20.3 cm (1.97 × 3.94 × 8.00 in) |
| Weight | 550 g (1.2 lbs) |
| IP Rating | IP40 |
| Altitude | 2000 m operating, 12000 m storage |

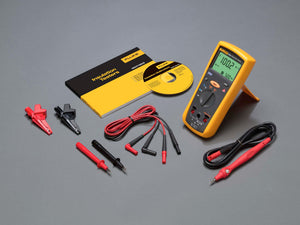

| Included Accessories | Remote probe, test leads, probes, clips, holster, documentation |
Tech Specs
| Megohmmeter / Insulation Resistance Tester Template | |
|---|---|
| IR Test Voltage | 500 V, 1000 V |
| Max Insulation Resistance | 2 GΩ |
| Min Insulation Resistance | 0.1 MΩ |
| Continuity Test | Yes (200 mA) |
| Live Circuit Detection | Yes (> 30 V) |
| Display | Digital |
| CAT Rating | IV |
| CAT Voltage | 600 V |
| Automated Test Results | Other |
| Power Supply | Battery (4 × AA) |
| Timer | Yes |
Test Equipment General Attributes
| Unique Features | Compact and rugged design, auto-discharge for safety, remote test probe, 200 mA continuity, insulation range up to 2 GΩ. |
|---|---|
| Warranty | 1 Year |
| Safety Approval | CSA |
| IP Rating | IP40 |
| Product Weight | 1.2 lbs |
| Product Height | 1.97 in |
| Product Length | 8.00 in |
| Product Width | 3.94 in |
| Data Logging | No |
| Calibration | None (Factory Calibrated) |
| Battery Type | AA |
| Power Supply | Battery Powered |
| Country of Origin | United States |
| UPC | 095969288668 |
