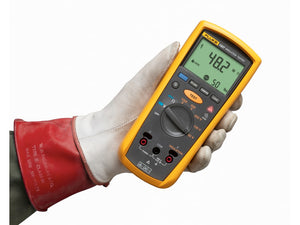

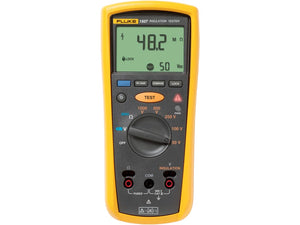

Fluke 1507 - Insulation Resistance Tester
Catalog: 5066006 | UPC: 095969288675 | Model: Fluke 1507
Fluke 1507
Compare
Fluke 1507 Megohmmeter / Insulation Resistance Tester, 600V, 0.01 MΩ – 10 GΩ
- Advanced insulation resistance tester for contractors and industrial/commercial electricians
- Insulation test voltages: 50, 100, 250, 500, 1000 V
- Insulation test resistance range: 0.01 MΩ – 10 GΩ
- Automatically calculates Polarization Index and Dielectric Absorption Ratio
- Compare function (pass/fail) for fast repetitive tests
- Live circuit detection prevents insulation test if voltage > 30 V
- Measures resistance from 0.01 Ω to 20.00 kΩ
- Measures AC/DC voltage from 0.1 V to 600 V
- Lo-ohms earth-bond continuity (200 mA)
- Automatic discharge of capacitive voltage for added safety
Description

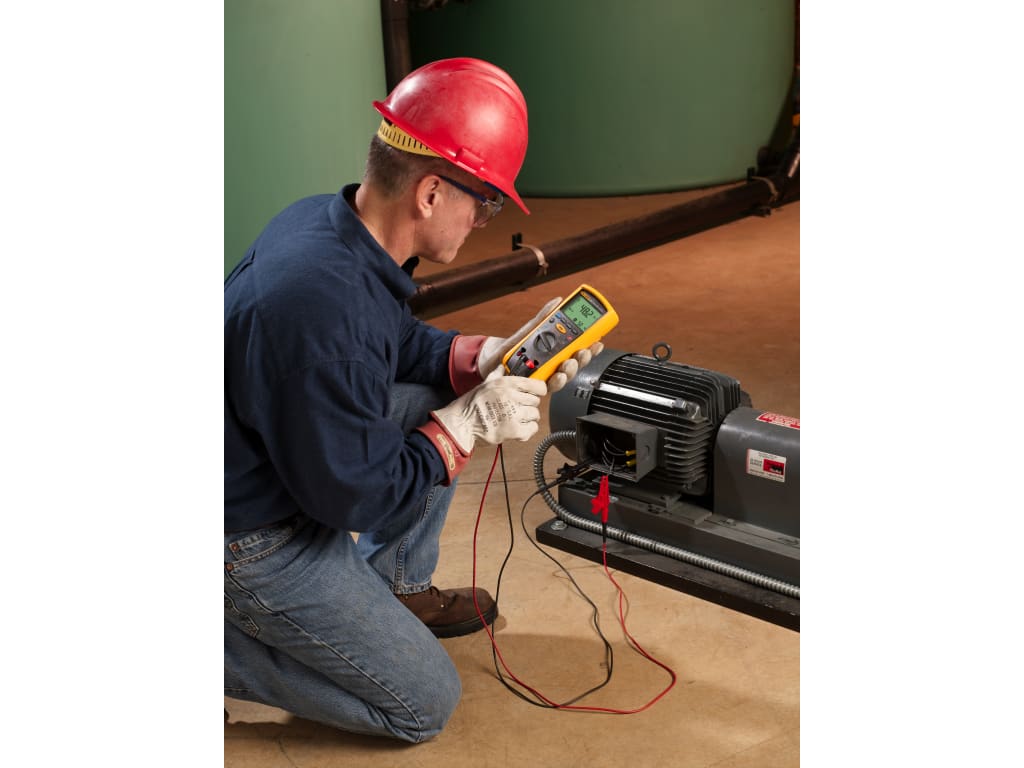

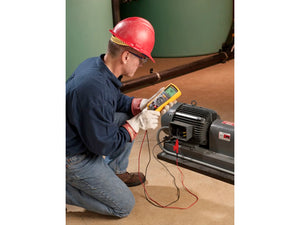

The Fluke 1507 Insulation Resistance Tester is a versatile, compact handheld tool designed for advanced industrial and electrical insulation testing. Its multiple test voltages make it suitable for troubleshooting, commissioning, and preventative maintenance applications.
The 1507 simplifies testing with features like automatic calculation of polarization index and dielectric absorption ratio, plus a pass/fail compare function for repetitive testing. It is rugged, lightweight, and provides CAT IV 600 V safety rating.
Additional Features:
- Performs insulation tests from 0.01 MΩ to 10 GΩ
- Includes auto-discharge of capacitive voltage
- Measures AC/DC voltage (0.1–600 V) and resistance (0.01–20 kΩ)
- Repetitive or hard-to-reach testing simplified with remote probe
- Large backlit display and auto power off
- Over 1000 insulation tests per set of AA batteries
Manufacturer Specifications
| AC/DC Voltage Measurements | |
|---|---|
| Range | 0.1 V – 600 V |
| Accuracy | ± (2% + 3) |
| Input Impedance | 3 MΩ nominal |
| Overload Protection | 600 V rms or DC |
| Earth Bond Resistance | |
| Range | 0.01 Ω – 20.00 kΩ |
| Accuracy | ± (1.5% + 3) |
| Short Circuit Current | > 200 mA |
| Insulation Testing | |
| Range | 0.01 MΩ – 10 GΩ |
| Test Voltages | 50 V, 100 V, 250 V, 500 V, 1000 V |
| Voltage Accuracy | +20% / -0% |
| Short Circuit Current | 1 mA nominal |
| Auto Discharge | < 0.5s for C ≤ 1 µF |
| Live Circuit Indicator | Inhibits test if > 30 V |
| General Specifications | |
| Operating Temperature | -20 °C to 55 °C |
| Storage Temperature | -40 °C to 60 °C |
| Relative Humidity | 0–95% (10–30 °C), 0–40% (40–55 °C) |
| Safety Rating | CAT IV 600 V |
| Certifications | CSA, TUV |
| Battery Life | ~1000 insulation tests, 2500 continuity tests |
| Dimensions | 5.0 × 10.0 × 20.3 cm (1.97 × 3.94 × 8.00 in) |
| Weight | 550 g (1.2 lbs) |
| IP Rating | IP40 |
| Altitude | 2000 m operating, 12000 m storage |
| Included Accessories | Remote probe, test leads, probes, clips, holster, documentation |
Tech Specs
| Megohmmeter / Insulation Resistance Tester Template | |
|---|---|
| IR Test Voltage | 50 V, 100 V, 250 V, 500 V, 1000 V |
| Max Insulation Resistance | 10 GΩ |
| Min Insulation Resistance | 0.01 MΩ |
| Automated Test Results | Polarization Index, Dielectric Absorption Ratio |
| Continuity Test | Yes (200 mA) |
| Live Circuit Detection | Yes (> 30 V) |
| Display | Digital |
| CAT Rating | IV |
| CAT Voltage | 600 V |
| Power Supply | Battery (4 × AA) |
| Timer | Yes |
Test Equipment General Attributes
| Unique Features | Pass/Fail compare function, automatic PI and DAR calculations, remote probe for repetitive testing, auto-discharge of capacitive voltage. |
|---|---|
| Warranty | 1 Year |
| Safety Approval | CSA |
| IP Rating | IP40 |
| Product Weight | 1.2 lbs |
| Product Height | 1.97 in |
| Product Length | 8.00 in |
| Product Width | 3.94 in |
| Data Logging | No |
| Calibration | None (Factory Calibrated) |
| Battery Type | AA |
| Power Supply | Battery Powered |
| Country of Origin | United States |
| UPC | 095969288675 |
