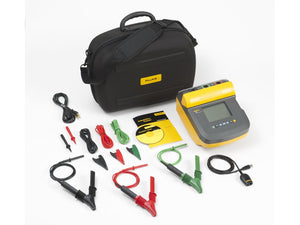

Fluke 1555/KIT - Insulation Resistance Tester Kit
Catalog: 3665111 | UPC: 095969550970 | Model: Fluke 1555/KIT
Fluke 1555/KIT
Compare
Fluke 1555/KIT Megohmmeter / Insulation Resistance Tester Kit, 10kV, > 2 TΩ
- Digital insulation testing up to 10 kV
- Resistance measurements up to 2 TΩ
- Selectable test voltages: 250 V – 10 kV
- Automatic DAR and PI calculation
- Guard system eliminates surface leakage effects
- Voltage breakdown detection up to 600 V
- Memory storage for up to 99 readings with labels
- Capacitance and leakage current measurement
- Ramp function for breakdown testing
- CAT III 1000 V, CAT IV 600 V safety rated
- 3-year warranty
- Includes rugged IP67 hard case and NIST calibration
Description
The Fluke 1555/KIT Insulation Resistance Tester provides digital insulation testing up to 10 kV, making it an excellent choice for high-voltage equipment including switchgear, motors, generators, and cables. Designed for predictive and preventative maintenance programs, it helps detect potential equipment failures before they occur.
The 1555/KIT includes ruggedized accessories, a Certificate of Calibration, and a protective IP67 hard case. With automatic DAR/PI calculation, ramp testing, and storage for up to 99 measurements, it’s both powerful and user-friendly. Long battery life supports up to 750 insulation tests between charges, and its CAT IV 600 V safety rating ensures operator protection.
Applications: High-voltage insulation testing for industrial, commercial, and utility environments in compliance with IEEE 43-2000 standards.
Manufacturer Specifications
| Insulation Resistance Measurement | |
|---|---|
| Test Voltages | 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V |
| Resistance Range | 200 kΩ to 2 TΩ (depending on test voltage) |
| Accuracy | ± 5% (main range), ± 20% (extended range) |
| Bar Graph Range | 0 to 1 TΩ |
| Voltage Accuracy | -0%, +10% at 1 mA load |
| Additional Measurements | |
| Leakage Current | 1 nA to 2 mA (± 5% + 2 nA) |
| Capacitance | 0.01 μF to 15 μF (± 15%) |
| Timer | 0–99 minutes |
| Live Circuit Warning | 30–660 V AC/DC |
| General Specifications | |
| Display | 75 × 105 mm LCD (digital + analog) |
| Power | 12 V lead-acid rechargeable battery (Yuasa NP2.8-12) |
| Charger Input | 85 V AC, 50/60 Hz, 20 VA |
| Operating Temperature | -20 °C to 50 °C |
| Storage Temperature | -20 °C to 65 °C |
| Humidity | 80% RH at ≤ 31 °C, 50% RH at 50 °C |
| Altitude | 2000 m |
| Safety Compliance | CAT III 1000 V, CAT IV 600 V |
| IP Rating | IP40 |
| Dimensions | 170 × 242 × 330 mm (6.7 × 9.5 × 13 in) |
| Weight | 3.6 kg (7.94 lbs) |
Tech Specs
| Megohmmeter / Insulation Resistance Tester Template | |
|---|---|
| IR Test Voltage | 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V |
| Maximum Resistance | 2 TΩ |
| Minimum Resistance | 200 kΩ |
| Automated Test Results | DAR, PI, Other |
| Variable Incremental Voltage | Yes (50 V steps up to 1 kV, 100 V steps above) |
| Display | Digital + Analog Bargraph |
| Continuity Test | No |
| Live Circuit Detection | Yes (30–660 V) |
| Timer | Yes (up to 99 minutes) |
| CAT Rating | CAT IV |
| CAT Voltage | 600 V (CAT IV), 1000 V (CAT III) |
| Power Supply | Rechargeable Battery |
Test Equipment General Attributes
| Unique Features | Includes IP67 hard case, Certificate of Calibration, and heavy-duty accessories. Stores up to 99 results with labels, ramp function, automatic DAR/PI, and long battery life (750 tests). |
|---|---|
| Warranty | 3 Years |
| Safety Approval | CSA |
| Interfaces I/O | IR, USB |
| IP Rating | IP40, IP67 |
| Product Weight | 8.2 lbs |
| Product Height | 6.3 in |
| Product Length | 10.6 in |
| Product Width | 10.9 in |
| Shipping Dimensions | 21 × 17.5 × 9 in |
| Data Logging | Yes |
| Calibration | NIST Calibration |
| Battery Type | 12 V Lead-Acid |
| Power Supply | 120/220 V AC Charger, Battery Powered |
| Country of Origin | United States |
| UPC | 095969550970 |
