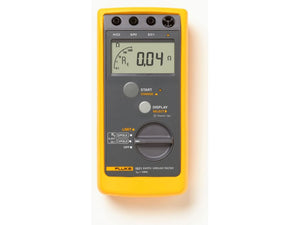

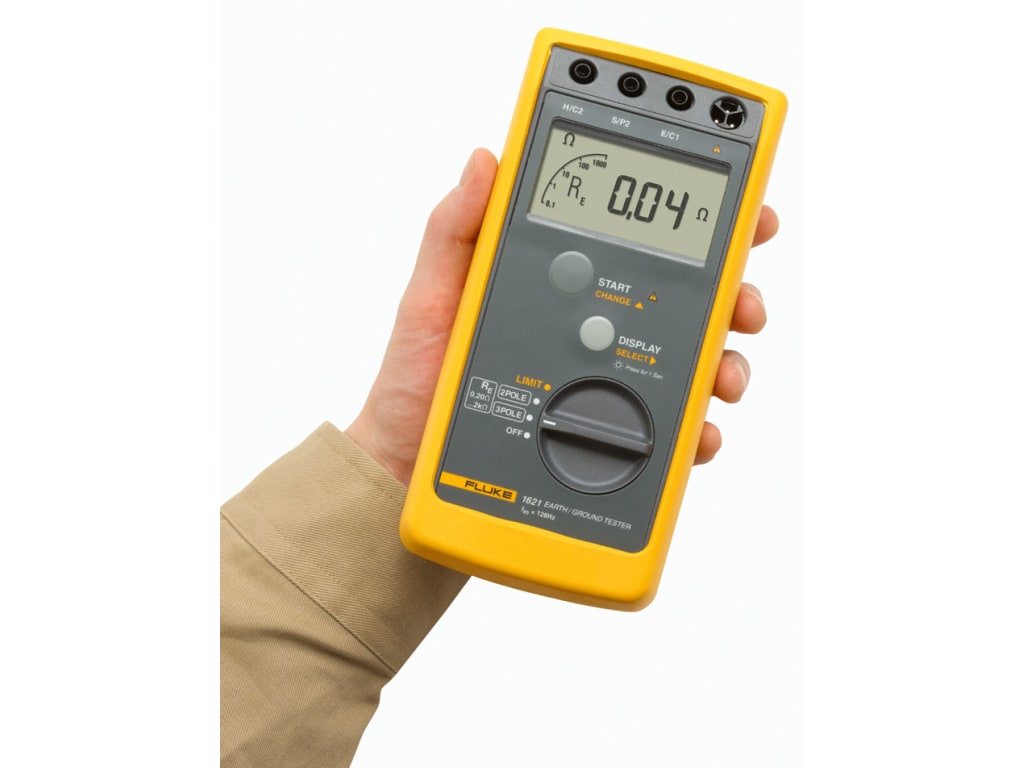

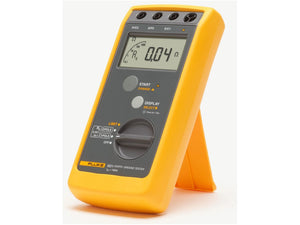

Fluke 1621 Earth Ground Tester
Catalog: 2840276 | UPC: 095969401210 | Model: Fluke 1621
Fluke 1621 Earth Ground Tester
Compare
Fluke 1621 GEO Earth Ground Tester with 3-Pole Fall-of-Potential and 2-Pole Resistivity
- 3-pole Fall-of-Potential earth testing for basic measurements
- 2-pole resistance measurements for added versatility
- Automatic noise voltage detection for accurate results
- Hazardous voltage warning for increased user protection
- Large backlit LCD display for clear data reading
- Adjustable limit settings with instant alerts when exceeded
- Rugged holster for tough environments
- Compact and portable design
- 600 V CAT II safety rating
Description
The Fluke 1621 Earth Ground Tester is an easy-to-use grounding tool designed for reliable earth resistance testing. It supports both 3-pole Fall-of-Potential and 2-pole ground resistance tests, making it a versatile first-line defense for detecting ground connections. With single-button operation, a rugged holster, and a large backlit display, it is ideal for field service electricians, contractors, utilities, and earth ground specialists.
Applications: Electrical contractors, utility test engineers, substation maintenance, industrial electricians, and lightning protection specialists.
Manufacturer Specifications
| General Specifications | |
|---|---|
| Measuring Functions | 3-pole earth ground resistance, 2-pole AC resistance of a conductor, Interference voltage |
| Intrinsic Error | Guaranteed for one year within reference temperature range |
| Measuring Rate | 2 measurements/second |
| Battery | One 9 V alkaline (LR61) |
| Battery Indicator | LO-BAT displayed if voltage drops below 6.5 V |
| Voltages | Between H/C2 and E/C1: 250 Veff max; Between S/P2 and E/C1: 250 Veff max |
| Standard Infrared Lens Type | Field of view: 17° × 17°, IFOV 2.50 mRad, Minimum focus: 15 cm (6 in) |
| Climatic Class | VDE/VDI 3540 RZ (DIN 40040, 4/87) |
| Temperature Performance | Working: -10 °C to +50 °C; Operating: 0 °C to +35 °C; Storage: -20 °C to +60 °C; Reference: +23 °C ± 2 °C |
| Temperature Coefficient | ± 0.1 % of range per K |
| Safety | IEC/EN 61010-1, 600 V CAT II, Pollution Degree 2 |
| Dimensions | 113 × 54 × 216 mm (4.5 × 2.1 × 8.5 in) including holster |
| Weight | 850 g (1.9 lbs) including standard accessories |
| Electrical Specifications | |
| Max Deviations | E1 Position: 0% | E2 Supply Voltage: 0% | E3 Temperature: 2.3% | E4 Interference Voltage (20 V): 0.6% | E5 Probe Resistance: 10% |
| Test Voltage | 3.7 kV |
| Protection | IP40 (IEC/EN 60529) |
| Electromagnetic Compatibility | IEC/EN 61326 Class B (Emission), IEC/EN 61326 Annex C (Immunity) |
| RE Resistance Measurement | |
| Method | Current-voltage measurement with improved cross-talk attenuation, per IEC/EN 61557-5 |
| Open Circuit Voltage | 23–24 V AC |
| Short Circuit Current | > 50 mA AC |
| Measuring Frequency | 128 Hz |
| Max Overload | 250 Veff |
| Measuring Time | 8 seconds (average after START) |
| Limit Input | Retains set value even if power is off (with sufficient battery) |
| Resolution Changeover | RH < 7 kΩ → 0.01 Ω; RH < 50 kΩ → 0.1 Ω; RH > 50 kΩ → 1 Ω |
| Interference Voltage Display | Vmax 30 Veff |
| Common Mode Rejection | > 80 dB at 50/60 Hz |
| Ri | 680 kΩ |
| Measuring Uncertainty | < 10 % for pure AC/DC signals |
| Measuring Range | |
| 0.15 Ω to 20 Ω | Resolution: 0.01 Ω | Display: 0–19.99 Ω |
| 200 Ω | Resolution: 0.1 Ω | Display: 20–199.9 Ω |
| 2 kΩ | Resolution: 1 Ω | Display: 200–1999 Ω |
| Intrinsic Uncertainty | ± (6% of measured value + 5D) |
| Operating Uncertainty | ± (18% of measured value + 5D) per IEC 61557 |
Tech Specs
| Ground Testers Template | |
|---|---|
| Type | 3-Pole |
| Display | Digital |
| Ground Resistance Range | 2 kΩ |
| Accuracy | ± (6% + 5D intrinsic), ± (18% + 5D operating) |
| Measuring Current | 50 mA |
| Measuring Voltage | 24 V |
| Measuring Frequency | 128 Hz |
| Soil Resistivity | No |
| Stakeless Capability | No |
| Power Supply | 9 V Battery |
| CAT Rating | CAT II |
| CAT Voltage | 600 V |
| Auto Ranging | Yes |
Test Equipment General Attributes
| Unique Features | 3-pole and 2-pole methods, auto noise voltage detection, adjustable limit alerts, single-button operation, portable design |
|---|---|
| Warranty | 2 Years |
| IP Rating | IP40 |
| Product Weight | 1.9 lbs |
| Product Height | 8.5 in |
| Product Length | 4.5 in |
| Product Width | 2.1 in |
| Shipping Weight | 6 lbs |
| Shipping Dimensions | 9.4 × 7.6 × 2.8 in |
| Data Logging | No |
| Battery Type | 9 V |
| Power Supply | Battery Powered |
| Country of Origin | Romania |
| UPC | 095969401210 |
