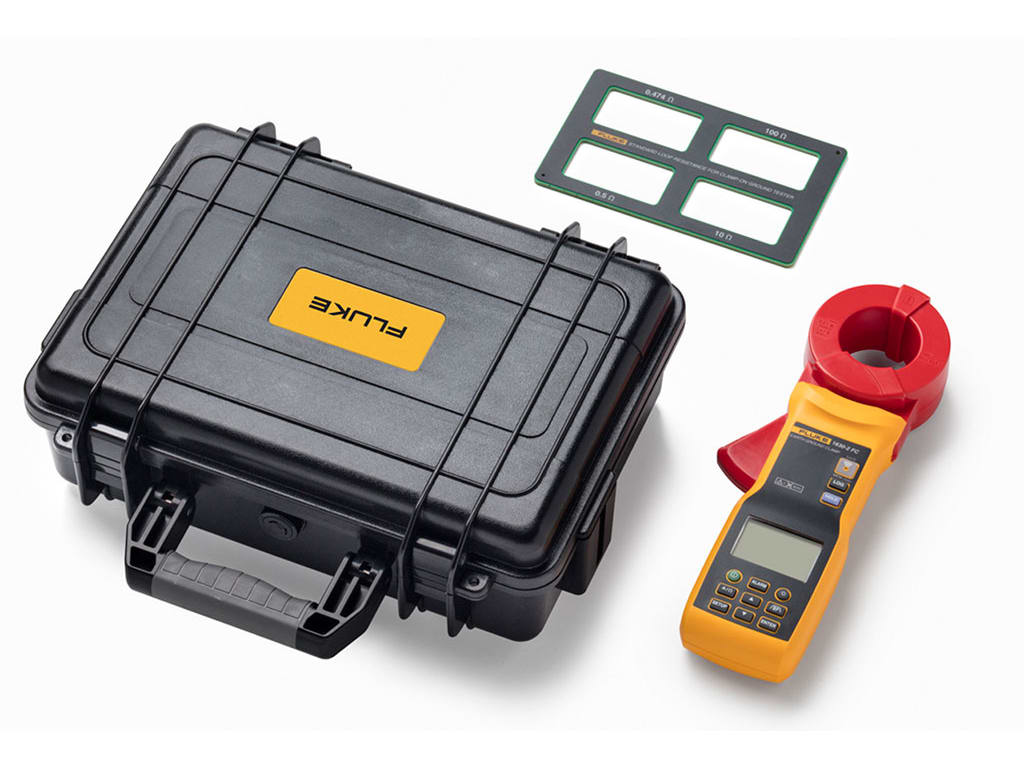

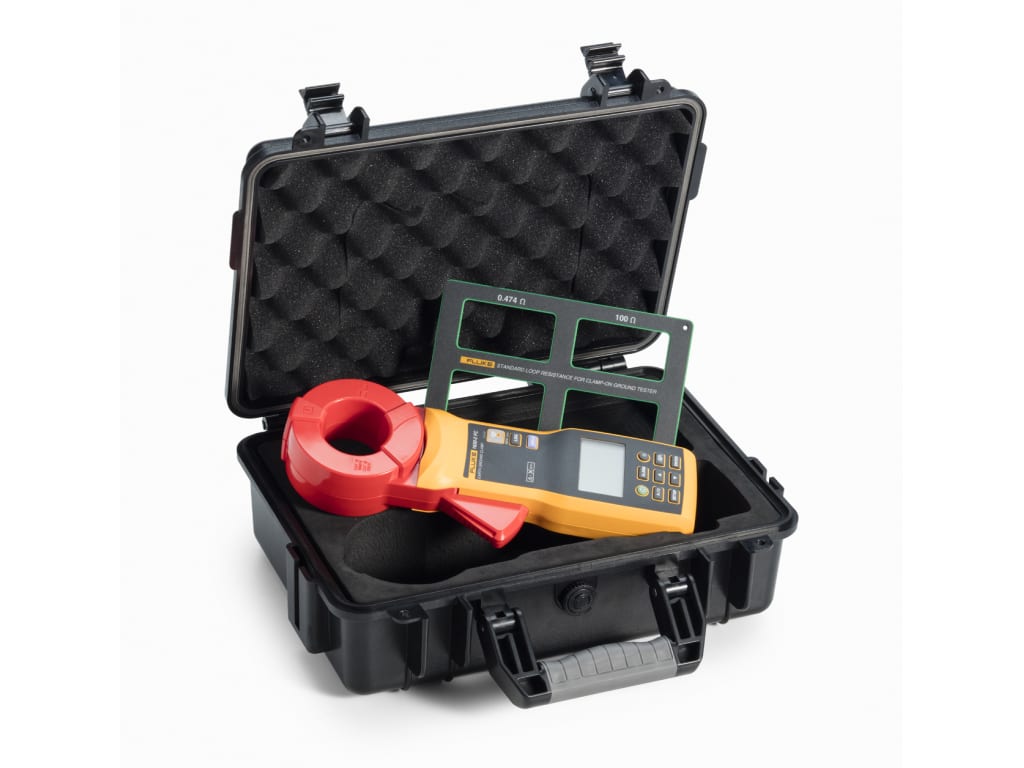

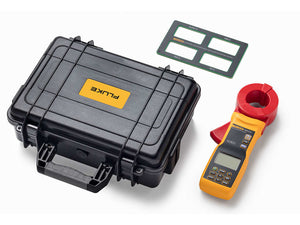

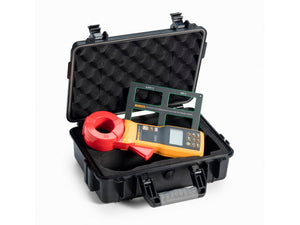

Fluke 1630-2 FC Earth Ground Loop and Leakage Clamp
0 Reviews | Catalog: 4829532 | UPC: 095969831185 | Model: Fluke 1630-2 FC
EARTH GROUND LOOP AND LEAKAGE CLAMP
- Earth ground ac leakage current measurement - Identify ac leakage currents without disconnecting the earth ground stake from the grounding system–ideal for system troubleshooting
- Rugged - Heavy-duty clamp jaw stays in alignment and in calibration even in every day, on-the-job industrial environments
- Logging measurements - Saves up to 32,760 measurements in memory at the set logging interval
- Alarm threshold - User-defined high/low alarm limits for rapid measurement evaluation
- Band-pass filter - Selectable function removes unwanted noise from the ac leakage current measurement
Description

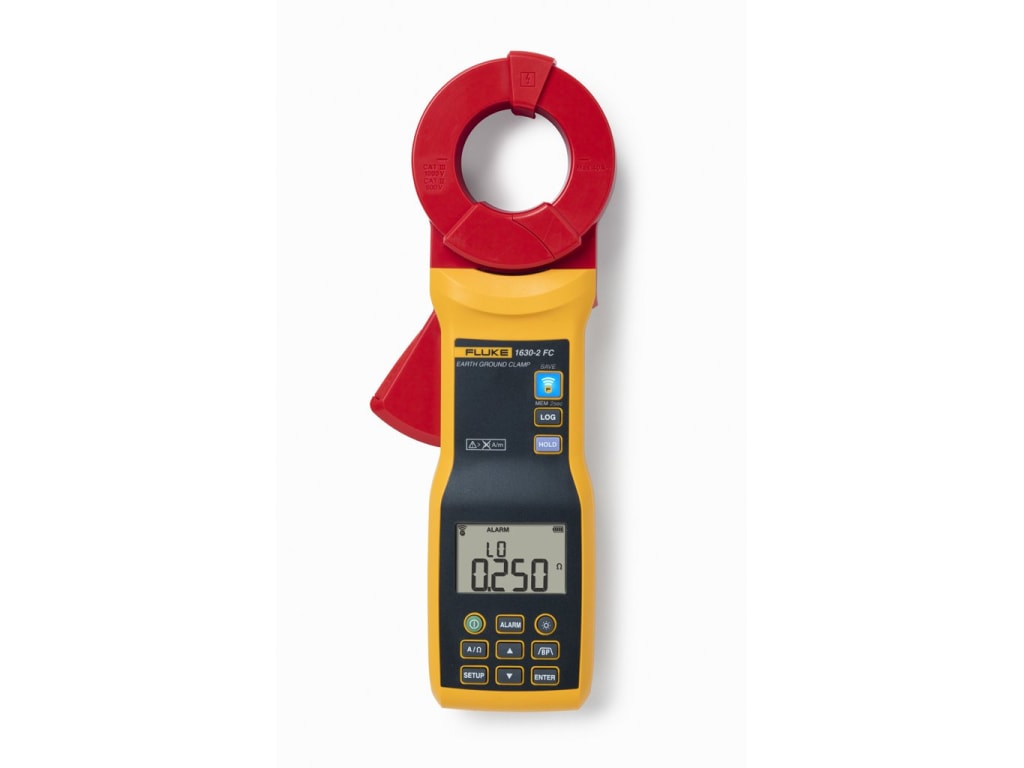

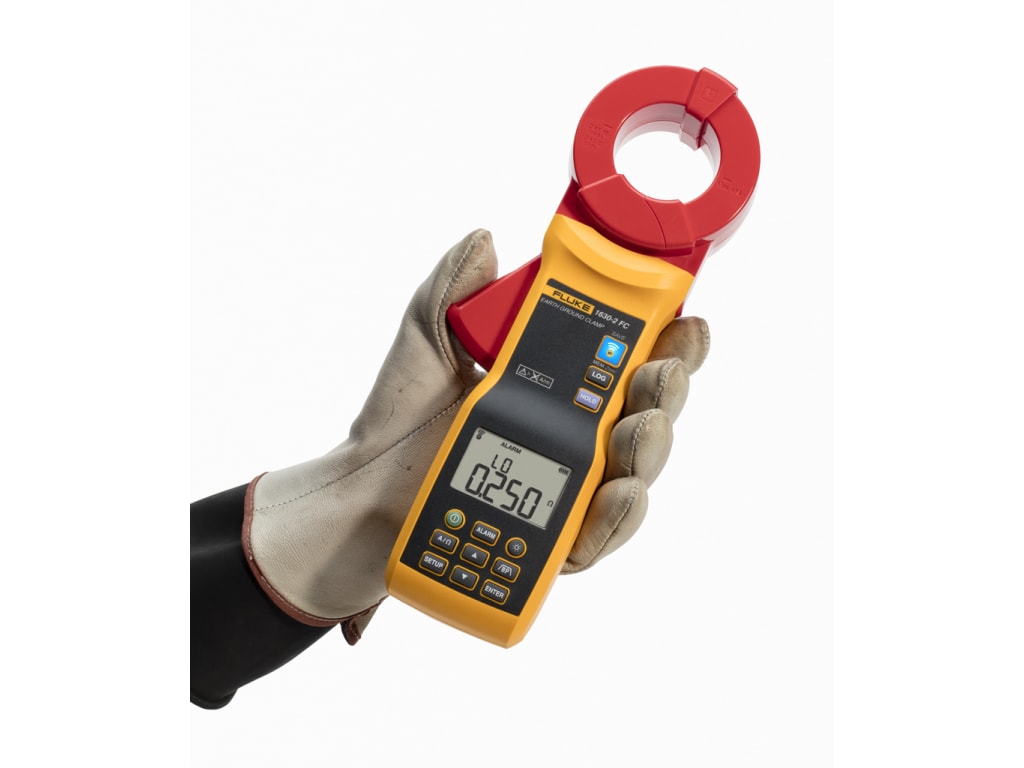

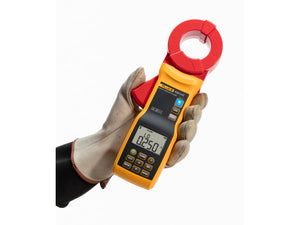

The Fluke 1630-2 FC Stakeless Earth Ground Clamp is a rugged, high-quality clamp meter designed for earth ground loop and leakage testing. Its heavy-duty jaw remains aligned and calibrated even in tough industrial environments.
Stakeless measurement

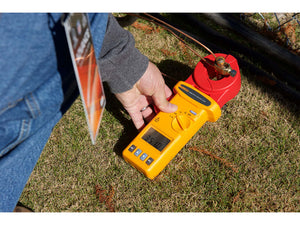

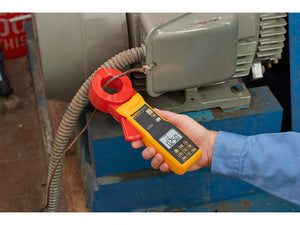

Measures earth ground loop resistances for multi-grounded systems using dual-clamp jaw technology, eliminating the need to disconnect parallel grounds or place auxiliary test stakes. Ideal for testing inside buildings, power pylons, or areas without soil access.

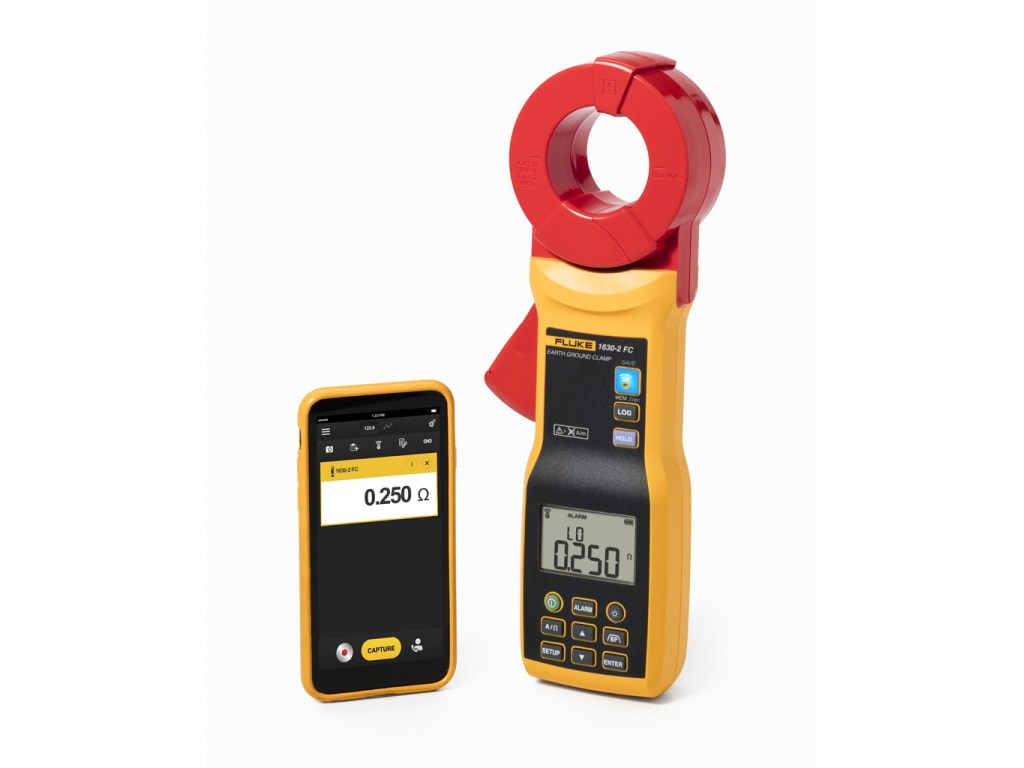

Fluke Connect® Wireless System
Supports the Fluke Connect Wireless System for smartphone/tablet connectivity. Enables saving results, GPS location, and images to Fluke Connect Cloud for team sharing and historical tracking.
Manufacturer Specifications
Electrical Specifications
- Maximum voltage to earth ground: 1000 V
- Battery type: AA alkaline IEC/EN LR6 (x4)
- Battery life: More than 15 hours*
- Frequency range: 40 Hz to 1 kHz
- Ingress protection: IEC/EN 60529: IP30 with jaw closed
- LCD: Digital reading: 9999 counts, Refresh rate: 4/sec
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Operating humidity: ≤90% RH (10–30 °C), ≤75% RH (30–40 °C), ≤45% RH (40–50 °C), non-condensing
- Operating altitude: 2000 m (6561 ft)
- Storage altitude: 12,000 m (39,370 ft)
- Reference temperature: 23 °C ±5 °C
- Temperature coefficient: 0.15% × (specified accuracy)/°C
- Overload indication: OL
- Data logging capacity: ≥32,760 measurements
- Data logging interval: 1 sec to 59 min 59 sec
Safety
- General: IEC/EN 61010-1: Pollution Degree 2, IEC/EN 61557-1
- Measurement: IEC/EN 61010-2-032: CAT IV 600 V / CAT III 1000 V
- Current clamp for leakage: IEC/EN 61557-13: Class 2, ≤30 A/m
- Resistance to earth: IEC/EN 61557-5
- Effectiveness of protective measures: IEC/EN 61557-16
- EMC: IEC/EN 61326-1, CISPR 11: Group 1, Class B
- Korea (KCC): Class A equipment (Industrial use)
- USA (FCC): 47 CFR 15 subpart B, exempt per clause 15.103
Wireless Radio
- Frequency range: 2412 MHz to 2462 MHz
- Output power: <10 mW
- Certification: FCC ID:T68-FBLE, IC:6627A-FBLE
General Specifications
- Conductor size: 40 mm (1.57 in)
- Dimensions: 283 × 105 × 48 mm (11.1 × 4.1 × 1.9 in)
- Weight: 880 g (31 oz)
- Warranty: One year
Earth Ground Loop Resistance
- 0.025 Ω–0.249 Ω: ±(1.5% + 0.02 Ω)
- 0.250 Ω–0.999 Ω: ±(1.5% + 0.05 Ω)
- 1.000 Ω–9.999 Ω: ±(1.5% + 0.10 Ω)
- 10.00 Ω–49.99 Ω: ±(1.5% + 0.30 Ω)
- 50.00 Ω–99.99 Ω: ±(1.5% + 0.50 Ω)
- 100.0 Ω–199.9 Ω: ±(3.0% + 1.0 Ω)
- 200.0 Ω–399.9 Ω: ±(5.0% + 5.0 Ω)
- 400 Ω–599 Ω: ±(10.0% + 10 Ω)
- 600 Ω–1500 Ω: ±20%
Leakage Current Measurement
- 0.200 mA–3.999 mA: ±(2.0% + 0.05 mA)
- 4.00 mA–39.99 mA: ±(2.0% + 0.03 mA)
- 40.0 mA–399.9 mA: ±(2.0% + 0.3 mA)
- 0.400 A–3.999 A: ±(2.0% + 3 mA)
- 4.00 A–39.99 A: ±(2.0% + 30 mA)
Applies to 40 Hz–1 kHz (filter OFF), 40 Hz–70 Hz (filter ON)
Tech Specs
| Maximum Ground Resistance | 1500 Ohms (1.5 K Ohms) |
| Minimum Ground Resistance | 0.025 Ohms |
| Resistance Measurement Frequency | 1 kHz (1000 Hz) |
| Maximum Current Range | 39.99 A |
| Display Hold | Yes |
| Jaw Capacity Conductor Size | 1.57 IN |
| CAT Rating | III |
| CAT Voltage | 1,000 V |
| Alarms | Yes |
Test Equipment General Attributes
| Unique Features | Fluke Connect wireless connectivity, GPS logging, Cloud storage |
| Warranty | 1 YEAR |
| Safety Approval | CE |
| IP Rating | IP30 |
| Product Weight | 1.94 LBS |
| Product Height | 1.9 IN |
| Product Length | 11.1 IN |
| Product Width | 4.1 IN |
| Data Logging | Yes |
| Calibration Included | None |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| UPC | 095969831185 |
