Fluke 1738/FPC - 1738 Advanced Portable Power Quality Logger with 1-Year Premium Care Standard Plan
Catalog: 5570492 | UPC: 195112117064 | Model: Fluke 1738/FPC
Fluke 1738/FPC
Compare
1 YR PREMIUM CARE WITH 1738 POWER QUALITY LOGGER
- Package includes 1738 power quality logger and 1-year Fluke premium care standard plan
- 3-Phase Energy Logger EU/US Version
- Functions: PQ Health (EN50160 analysis) and Fluke Connect module support (up to 2 modules)
- Recording: Trend and Waveform snapshots plus RMS profile
- Automatically capture and log voltage, current, power, harmonics and associated power quality values
- Fluke Connect compatible*: View data locally on the instrument or via Fluke Connect mobile app and desktop software
- Convenient instrument powering: Power instrument directly from the measured circuit
- Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for service entrance and downstream

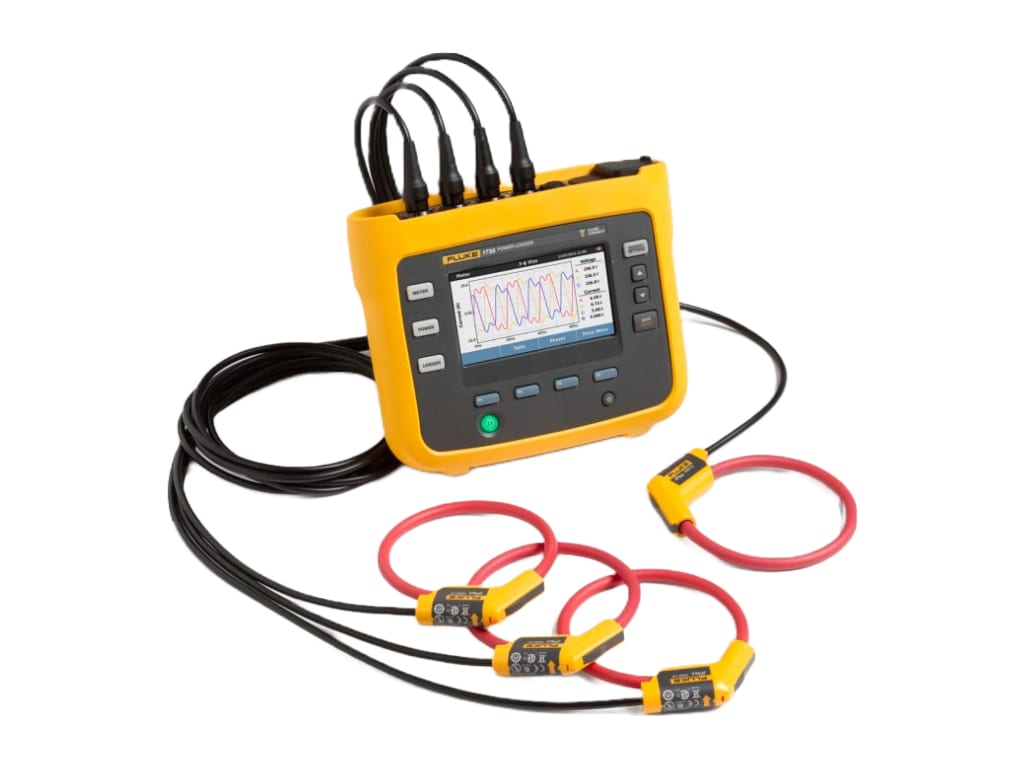

- Measure all three phases and neutral with included 4 flexible current probes
- Comprehensive logging: More than 20 separate logging sessions stored
Description

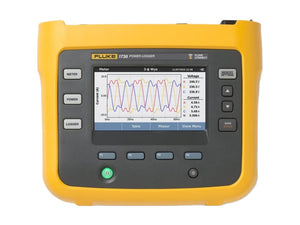

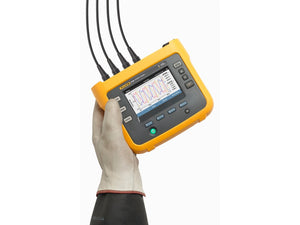

Fluke 1738/FPC Power Quality Logger
The Fluke 1738/FPC package includes the 1738 power quality logger plus a 1-year premium care standard plan. This advanced 3-phase logger is designed to automatically capture and log voltage, current, power, harmonics, and related power quality parameters with the highest CAT IV safety rating in the industry.
View data locally on the instrument or remotely with the Fluke Connect® app and desktop software. With the ability to store over 20 logging sessions and power directly from the measured circuit, it’s built for reliable field use and comprehensive power quality analysis.
Tech Specs
| Power Measurement / Power Loggers Template | |
|---|---|
| Input (Power Loggers) | Single Phase, Three Phase |
| Type (Power Loggers) | Digital, Portable Hand Held |
| Maximum Current AC | 1500 A |
| Maximum Voltage AC | 1000 V |
| True RMS | Yes |
| Power Quality | Yes |
| Current Input Channels | 4 |
| Voltage Input Channels | 4 |
| Measurement Frequency | 50 Hz, 60 Hz |
| Display | Digital, Graphical |
| Transient Capture | No |
| Displays Waveform | Yes |
| Energy | Yes |
| Phasor Diagrams | No |
| Power Factor | Yes |
| Harmonics | Yes |
| Total Harmonic Distortion | Yes |
| Current Clamps Included | Yes |
| Bluetooth Compatible | Yes |
| CAT Rating | IV |
| CAT Voltage Rating | 600 V |
Test Equipment General Attributes
| Warranty | 2 YEARS |
|---|---|
| Interfaces I/O | Bluetooth, WiFi, USB |
| Storage | Internal Memory |
| IP Rating | IP50 |
| Product Weight | 3 LBS |
| Product Height | 9.25 IN |
| Product Length | 16 IN |
| Product Width | 11.5 IN |
| Shipping Weight | 10.00 LBS |
| Data Logging | Yes |
| Battery Type | Li-ion |
| Power Supply Voltage | 120V/220V Universal, Battery Powered |
| Shipping Height | 8.00 IN |
| Shipping Length | 16.00 IN |
| Shipping Width | 12.00 IN |
Fluke 1738/FPC - 1738 Advanced Portable Power Quality Logger with 1-Year Premium Care Standard Plan
Catalog: 5570492 | UPC: 195112117064 | Model: Fluke 1738/FPC
Fluke 1738/FPC
Compare
1 YR PREMIUM CARE WITH 1738 POWER QUALITY LOGGER
- Package includes 1738 power quality logger and 1-year Fluke premium care standard plan
- 3-Phase Energy Logger EU/US Version
- Functions: PQ Health (EN50160 analysis) and Fluke Connect module support (up to 2 modules)
- Recording: Trend and Waveform snapshots plus RMS profile
- Automatically capture and log voltage, current, power, harmonics and associated power quality values
- Fluke Connect compatible*: View data locally on the instrument or via Fluke Connect mobile app and desktop software
- Convenient instrument powering: Power instrument directly from the measured circuit
- Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for service entrance and downstream
- Measure all three phases and neutral with included 4 flexible current probes
- Comprehensive logging: More than 20 separate logging sessions stored
Description
Fluke 1738/FPC Power Quality Logger
The Fluke 1738/FPC package includes the 1738 power quality logger plus a 1-year premium care standard plan. This advanced 3-phase logger is designed to automatically capture and log voltage, current, power, harmonics, and related power quality parameters with the highest CAT IV safety rating in the industry.
View data locally on the instrument or remotely with the Fluke Connect® app and desktop software. With the ability to store over 20 logging sessions and power directly from the measured circuit, it’s built for reliable field use and comprehensive power quality analysis.
Tech Specs
| Power Measurement / Power Loggers Template | |
|---|---|
| Input (Power Loggers) | Single Phase, Three Phase |
| Type (Power Loggers) | Digital, Portable Hand Held |
| Maximum Current AC | 1500 A |
| Maximum Voltage AC | 1000 V |
| True RMS | Yes |
| Power Quality | Yes |
| Current Input Channels | 4 |
| Voltage Input Channels | 4 |
| Measurement Frequency | 50 Hz, 60 Hz |
| Display | Digital, Graphical |
| Transient Capture | No |
| Displays Waveform | Yes |
| Energy | Yes |
| Phasor Diagrams | No |
| Power Factor | Yes |
| Harmonics | Yes |
| Total Harmonic Distortion | Yes |
| Current Clamps Included | Yes |
| Bluetooth Compatible | Yes |
| CAT Rating | IV |
| CAT Voltage Rating | 600 V |
Test Equipment General Attributes
| Warranty | 2 YEARS |
|---|---|
| Interfaces I/O | Bluetooth, WiFi, USB |
| Storage | Internal Memory |
| IP Rating | IP50 |
| Product Weight | 3 LBS |
| Product Height | 9.25 IN |
| Product Length | 16 IN |
| Product Width | 11.5 IN |
| Shipping Weight | 10.00 LBS |
| Data Logging | Yes |
| Battery Type | Li-ion |
| Power Supply Voltage | 120V/220V Universal, Battery Powered |
| Shipping Height | 8.00 IN |
| Shipping Length | 16.00 IN |
| Shipping Width | 12.00 IN |
