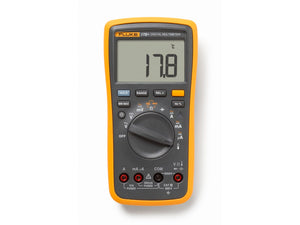

Fluke 17B+ - Digital Multimeter (1000V/10A) with Temperature and Frequency
Rating: 0 reviews | Catalog: 4404231 | UPC: 095969692687 | Model: Fluke 17B+
Fluke 17B+
Compare
Basic DMM with Temperature & Frequency
- Includes several functions not found on 15B+, including temperature and frequency
- AC/DC voltage: 1000V
- AC/DC current: 10A
- Frequency: 10 Hz to 100 kHz

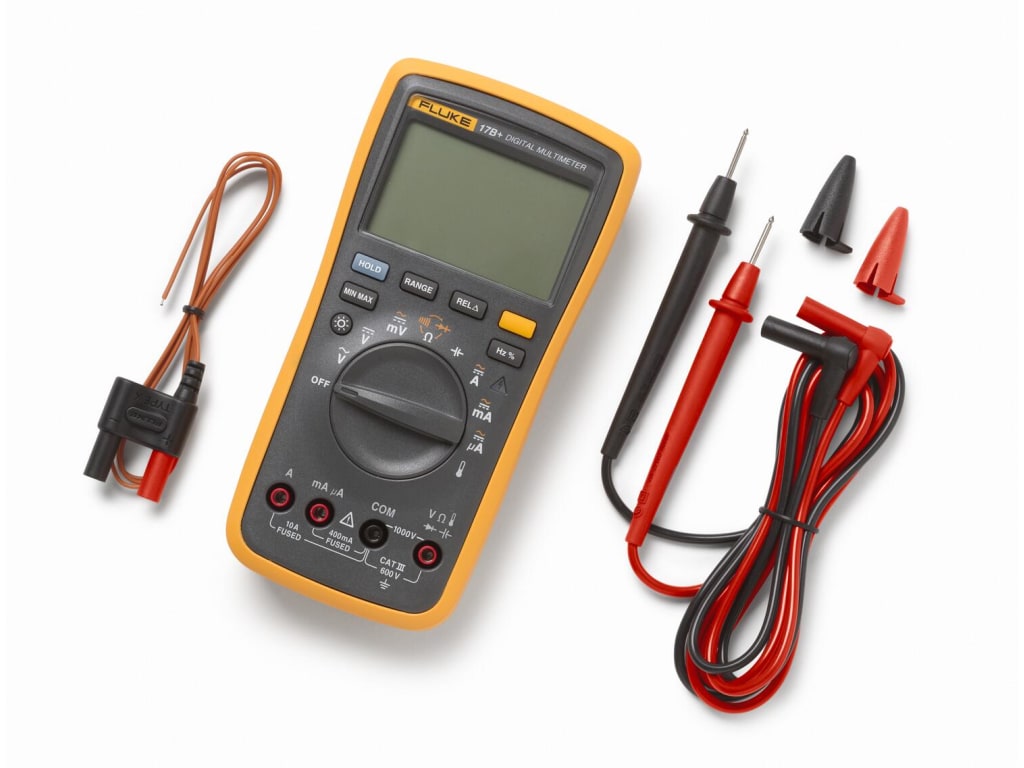

- Temperature: -55 to 400°C (thermocouple included)
- Resistance: 40 MΩ
- Capacitance: 1000 µF
- Large, easy-to-read display with bright white backlight
- 500 hour battery life (uses two AA)
- CAT III 600 V safety rating
Description
The Fluke 17B+ Digital Multimeter is designed for electricians and DIY users who need reliable, accurate measurements with enhanced safety. It can measure AC/DC voltage up to 1000 V, current up to 10 A, and supports frequency, temperature, capacitance, resistance, diode, and continuity testing. With a CAT III 600 V safety rating, overload protection, and a 500-hour battery life, the 17B+ is rugged, portable, and built for real-world electrical system testing across residential, commercial, and industrial applications.
Tech Specs
| Style | Hand-Held |
|---|---|
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | No |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 0.1 mV |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 0.1 mV |
| Maximum Current AC | 10 A |
| Resolution AC Current | 0.1 µA (0.00010 mA) |
| Maximum Current DC | 10 A |
| Resolution DC Current | 0.1 µA (0.00010 mA) |
| Basic Accuracy V DC | 0.5% |
| Counts | 4000 |
| Backlight | Yes |
| Manual/Autoranging | Auto-ranging |
| Resistance | Yes |
| Frequency | Yes (10 Hz to 100 kHz) |
| Capacitance | Yes (up to 1000 µF) |
| Temperature | Yes (-55 °C to 400 °C) |
| Diode Testing | Yes |
| Duty Cycle % | 1 % to 99 % with 0.1 % resolution |
| CAT Rating | III |
| CAT Voltage | 600 V |
| Data Hold | Yes |
| Overload Protector | Yes |
Test Equipment General Attributes
| Warranty | 1 YEAR |
|---|---|
| IP Rating | IP40 |
| Battery Type | AA |
| Power Supply | Battery Powered |
| UPC | 095969692687 |
