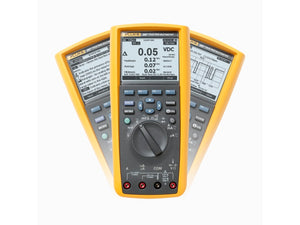

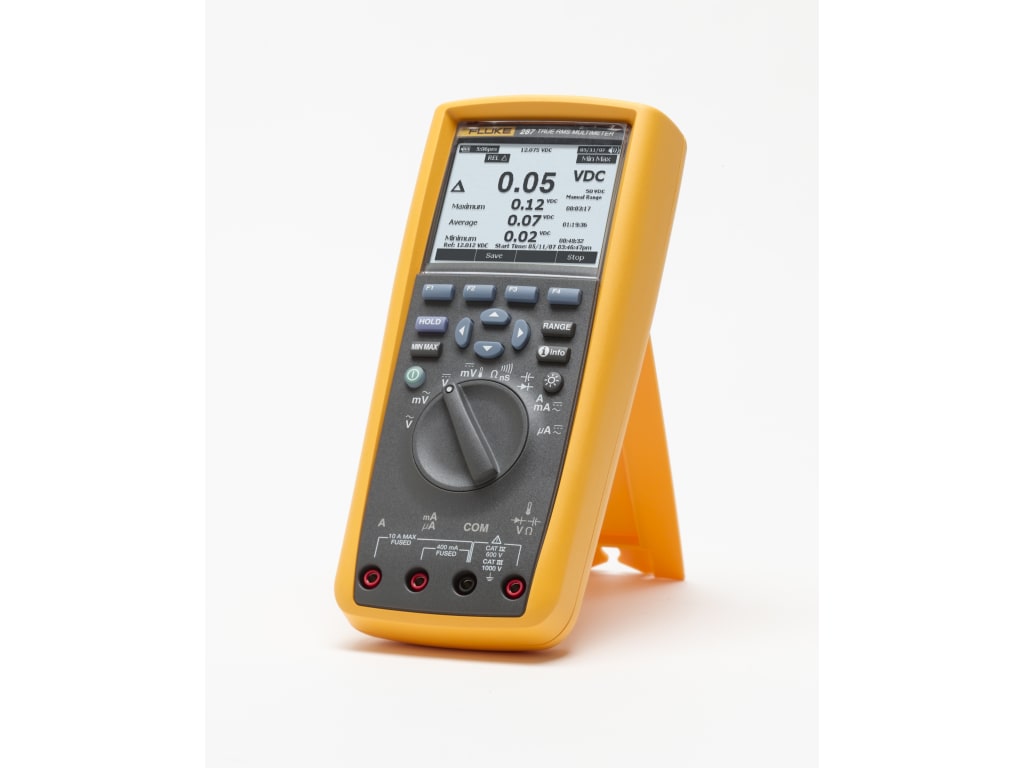

Fluke 287 - True-RMS Data Logging Multimeter with TrendCapture
TRUE-RMS ELECTRONIC LOGGING MULTIMETER WITH TRENDCAPTURE
- Quickly documents design performance and shows you graphically what happened
- With logging and graphing capabilities, you no longer need to download logged readings to a PC to detect a trend
- Logging function plots measurements as a single line to help detect signal anomalies over time
- Stores up to 10,000 readings
- Communicates with Fluke Connect via IR3000FC connector (sold separately)
- Large 50,000 count 1/4 VGA display with white backlight

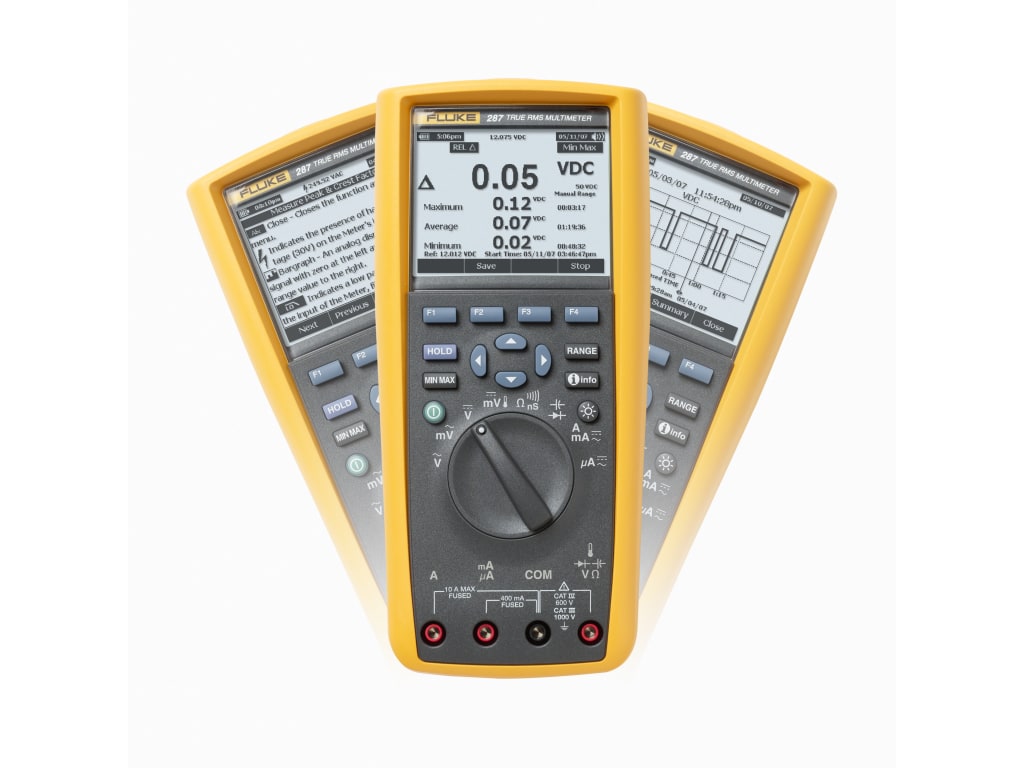

- TrendCapture enables viewing logged readings without a PC
- Saved measurements allow you to name and recall measurements made in the field
- Real time clock for automatic time stamping of saved readings
- Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times
Description
The Fluke 287 True-rms Electronics Logging Multimeter with TrendCapture quickly documents design performance and graphically displays what happened. Its unique logging and graphing capabilities mean you no longer need to download logged readings to a PC to detect a trend. The Fluke 287 packs more accuracy and convenience into a handheld multimeter than ever before.
Logging Function with TrendCapture: Essential tool for documenting performance of designs, processes, or systems, storing up to 10,000 readings. Using on-board TrendCapture, you can graphically view logged readings without a PC.
“i” Button Help: Gives instant access to on-board help screens for every measurement function.
MIN/MAX Mode: Captures min, avg, and max readings with timestamps. Ideal for intermittent failures, inrush currents, and surges.
Peak Record: 250 μs response time for accurate transient capture.
dB Measurements: Displays voltage in dBm, dBV, or user-selectable reference.
Manufacturer Specifications
| DC Volts | 50.000 mV to 1000.0 V @ 0.025% accuracy |
| AC Volts | 50.000 mV to 1000.0 V @ 0.4% accuracy (True RMS) |
| DC Current | 500.00 µA to 10.000 A @ 0.15% accuracy |
| AC Current | 500.00 µA to 10.000 A @ 0.7% accuracy (True RMS) |
| Temperature | -200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F) @ 1.0% accuracy |
| Resistance | 500.00 Ω to 500.0 MΩ @ 0.05% accuracy |
| Capacitance | 1.000 nF to 100.00 mF @ 1.0% accuracy |
| Frequency | 99.999 Hz to 999.99 kHz @ 0.005% + 1 accuracy |
Tech Specs
| Style | Hand-Held |
| Measures AC/DC V | Yes |
| Measures AC/DC A | Yes |
| True RMS | Yes |
| Max Voltage AC/DC | 1000 V |
| Resolution AC/DC Volts | 0.001 mV |
| Max Current AC/DC | 10 A |
| Min Current AC/DC | 0.01 mA |
| Resolution AC Current | 0.01 mA |
| Resolution DC Current | 0.01 A (10 mA) |
| Basic Accuracy V DC | 0.025% |
| Display | 4.5 digit, 50,000 counts |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance/Frequency/Capacitance/Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | CAT IV |
| CAT Voltage | 1000 V, 600 V |
| Peak Hold | Yes |
| Overload Protection | Yes |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
| Duty Cycle % | Range: 1.00 % to 99.00 %, Resolution: 0.01 %, Accuracy: 0.2 % per kHz + 0.1 % |
Test Equipment General Attributes
| Unique Features | Logging with TrendCapture (200+ hrs). Stores 10,000 readings. LoZ function removes ghost voltages. Real-time clock for time stamping. On-board help screens. Peak record 250 µs. |
| Warranty | 10 YEARS (Limited Lifetime Warranty) |
| Safety Approval | CE, CSA, UL |
| Interfaces I/O | Analog Output, Analog Input |
| Storage | Hard Drive |
| Product Weight | 1.92 LBS |
| Dimensions | 8.75 in (L) × 4.03 in (W) × 2.38 in (H) |
| Data Logging | Yes |
| Calibration Included | Factory Calibration |
| Battery Type | AA |
| Power Supply | Battery Powered |
| Country of Origin | United States |
| UPC | 095969417853 |
