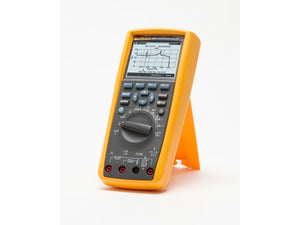

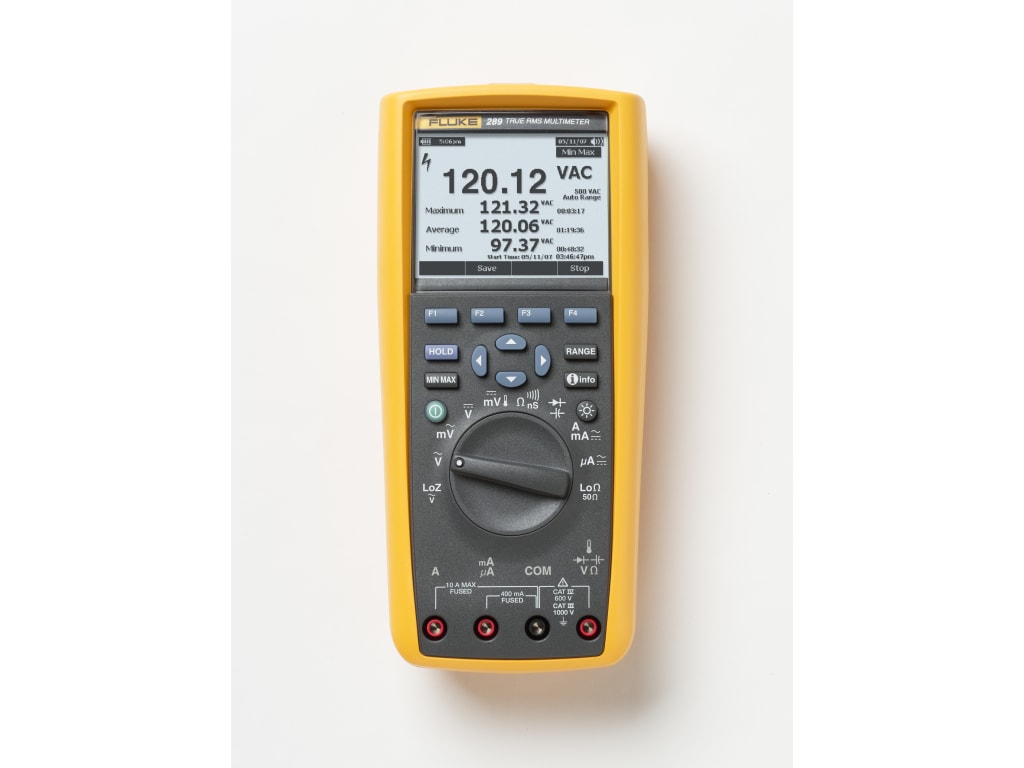

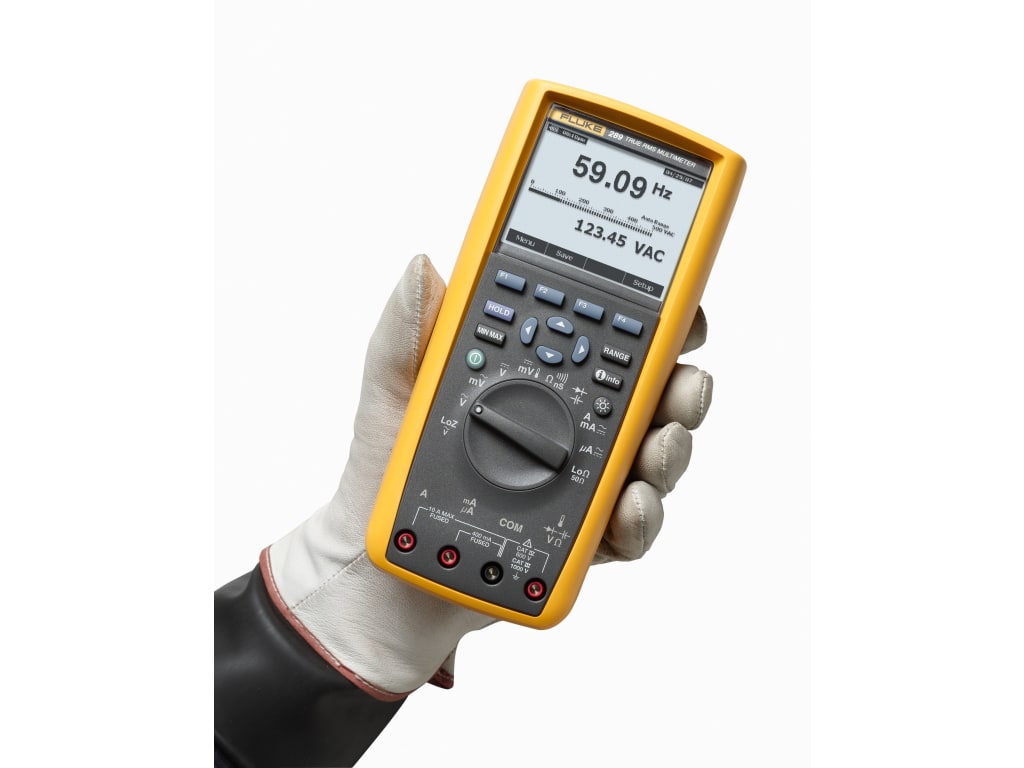

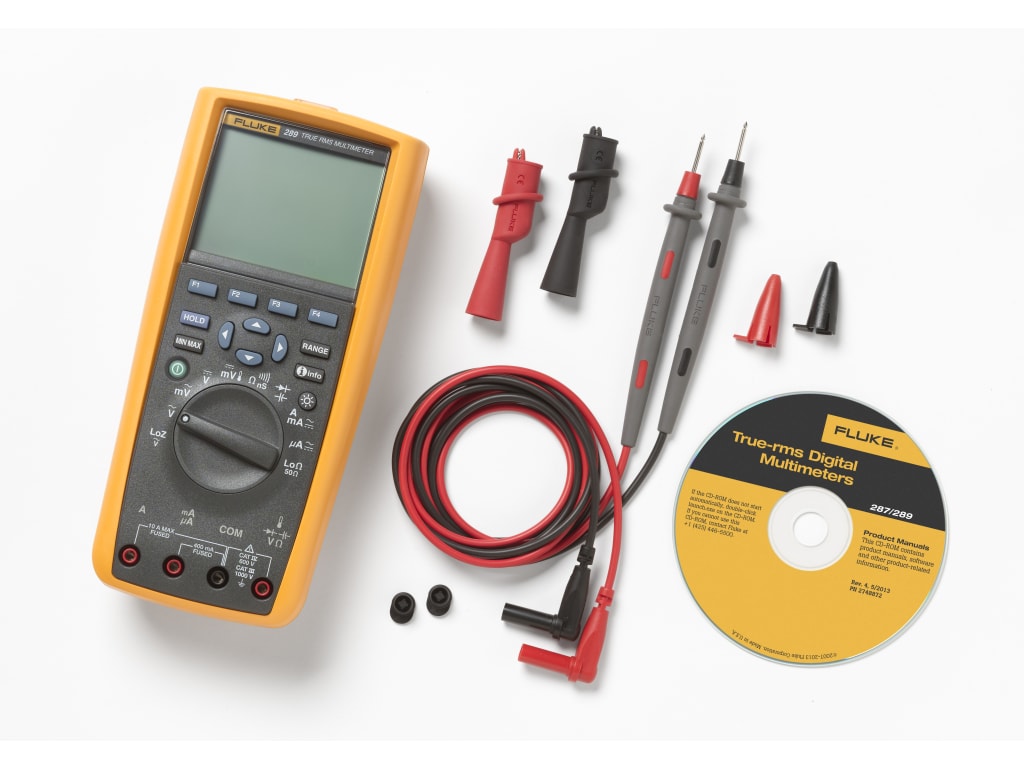

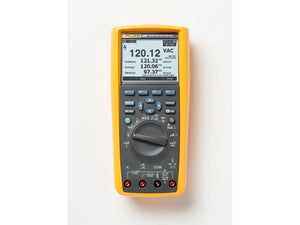

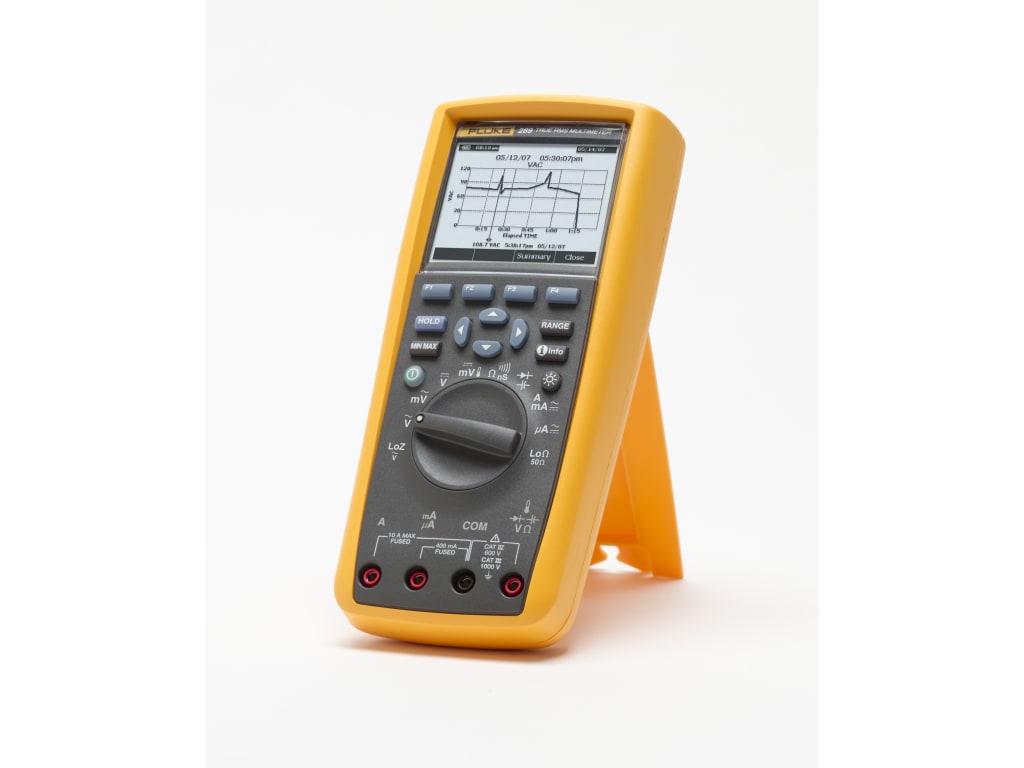

Fluke 289 - True RMS Data Logging Multimeter with TrendCapture
Fluke 289 True-RMS Industrial Logging Digital Multimeter with TrendCapture
- High performance industrial logging multimeter
- Low ohm capability - useful for measuring and comparing differences in motor winding resistance or contact resistance
- LoZ volts - Low impedance voltage function for eliminating ghost voltages
- Low Pass filter for adjustable speed motor drives and other electrically noisy equipment
- Communicates with Fluke Connect via IR3000FC connector (sold separately)

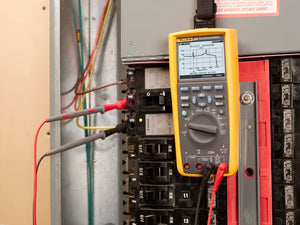

- Quickly documents design performance and shows you graphically what happened
- With logging and graphing capabilities, you no longer need to download logged readings to a PC to detect a trend
- Logging function plots measurements as a single line to help detect signal anomalies over time
- Stores up to 10,000 readings
Description
The Fluke 289 is the next generation high performance industrial logging multimeter. This Fluke Connect-compatible DMM is designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. It provides the ability to log data and graphically review up to 10,000 recorded events and logged readings with on-board TrendCapture. Zoom on trend provides a 14x zoom to view and analyze data without needing a PC.
Because the 289 is Fluke Connect-compatible you can set it up with the IR3000 FC wireless connector (sold separately) to communicate with your iOS and Android smart devices through the Fluke Connect mobile app and monitor readings from a remote location. Or you can share readings with your team instantly via ShareLive video call.
Key Features
- Low pass filter for accurate voltage/frequency on noisy equipment
- LoZ voltage measurement eliminates ghost voltages
- Low ohm capability for motor winding resistance testing
- Logging with TrendCapture stores 10,000 readings
- On-board help screens via “i” button
- MIN/MAX recording with timestamps
- Peak recording with 250 μs response time
- dB measurements in dBm, dBV, or user-defined
Manufacturer Specifications
| DC Volts | 50.000 mV to 1000.0 V @ 0.025% accuracy |
| AC Volts | 50.000 mV to 1000.0 V @ 0.4% accuracy (True RMS) |
| DC Current | 500.00 µA to 10.000 A @ 0.15% accuracy |
| AC Current | 500.00 µA to 10.000 A @ 0.7% accuracy (True RMS) |
| Temperature | -200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F) @ 1.0% accuracy |
| Resistance | 50.000 Ω to 500.0 MΩ @ 0.05% accuracy |
| Capacitance | 1.000 nF to 100.00 mF @ 1.0% accuracy |
| Frequency | 99.999 Hz to 999.99 kHz @ 0.005% + 1 accuracy |
Tech Specs
| Style | Hand-Held |
| Measures AC/DC V | Yes |
| Measures AC/DC A | Yes |
| True RMS | Yes |
| Max Voltage AC/DC | 1000 V |
| Resolution AC/DC Volts | 1 µV |
| Max Current AC/DC | 10 A |
| Min Current AC/DC | 0.01 µA |
| Resolution AC/DC Current | 0.01 µA |
| Basic Accuracy V DC | 0.025% |
| Display | 4.5 digit, 50,000 counts |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | Yes |
| Resistance/Frequency/Capacitance/Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | CAT IV |
| CAT Voltage | 1000 V |
| Peak Hold | Yes |
| Overload Protection | Yes |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
Test Equipment General Attributes
| Unique Features | Drop tested to 3 meters. Logging function with TrendCapture stores 10,000 readings. Low impedance voltage eliminates ghost voltages. Low Pass Filter for VSD/noisy equipment. |
| Warranty | 10 YEARS (Limited Lifetime Warranty) |
| Safety Approval | CSA |
| Interfaces I/O | IR |
| Storage | Internal Memory |
| Product Weight | 1.6 LBS |
| Dimensions | 4.53 in (H) × 3.94 in (L) × 1.08 in (W) |
| Data Logging | Yes |
| Calibration Included | Factory Calibration |
| Battery Type | AAA |
| Power Supply | Battery Powered |
| Country of Origin | United States |
| UPC | 095969417860 |
