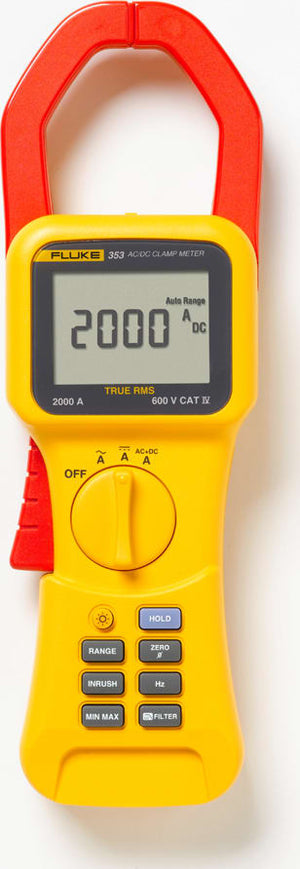

Fluke 353 True-RMS 2000 A Clamp Meter (350 Series)

Catalog: 2840252 | UPC: 095969401197 | Model: Fluke 353

Fluke 353 AC/DC TRMS Clamp Meter, 2000A, AMPS only

Description

Versatile and rugged tools for applications with high currents.

Confidently take reliable readings with the True-rms, Fluke 355 and 353 digital clamp meters; the tools of choice for high current clamp-on amp meter measurement up to 2000 A. The extra-wide jaw easily clamps around large conductors, typically found in high-current applications. The extra rugged design and CAT IV 600 V, CAT III 1000 V ratings add an extra element of user protection when taking high-powered measurements.

Accurate peak measurements can be taken using the in-rush current mode, ideal for motors and inductive loads.

Standard Features

  • Reliably handle a wide range of high-current applications with 2000 A ac + dc true-rms, 1400 A ac, and 2000 A dc
  • The large 58 mm (2.3 in) jaw capacity is suitable for large or multiple conductors
  • CAT IV 600 V, CAT III 1000 V rating for added user protection
  • In-rush current measurement captures 'power-on' surge current with accuracy and repeatability
  • Accurately measure frequency up to 1 kHz for optimum troubleshooting
  • Quickly analyze readings using the MIN, MAX, and AVG functions
  • A large backlit display allows for easy visibility in low-lit areas
  • Use the display hold feature to capture readings even when the display cannot be viewed
  • Use the low-pass filter to smooth out noisy loads and stabilize readings

In The Box

  • 353 Clamp meter
  • C43 Soft carrying case
  • 6 AA batteries
  • User manual
  • 3 year warranty

Manuals / Guides

  • Clamp Meters Application Notes
  • Data sheet
  • User Manual
  • Statement of Memory Volatility

Manufacturer Specs - Electrical Specifications

Measurement Range Resolution Accuracy / Trigger Levels
Current measurement dc and ac 10 Hz to 100 Hz 40 A 10 mA Accuracy, A  1.5 % rdg + 15 digits
Trigger Level for Inrush  0.50 A
Trigger Level for Hz Filter OFF  2.50 A
Trigger Level for Hz Filter ON  0.50 A
400 A 100 mA Accuracy, A  1.5 % rdg + 5 digits
Trigger Level for Inrush  5.0 A
Trigger Level for Hz Filter OFF  2.5 A
Trigger Level for Hz Filter ON  2.5 A
2000 A; 1400 ac rms 1 A Accuracy, A  1.5 % rdg + 5 digits
Trigger Level for Inrush  5 A
Trigger Level for Hz Filter OFF  8 A
Trigger Level for Hz Filter ON  8 A
Crest Factor (50/60 Hz) Range : 40 A
Range : 400 A
Range : 2000 A; 1400 ac rms		 Crest Factor* 2 @ 33 A, 2.4 @ 27 A
Crest Factor* 2 @ 330 A, 2.4 @ 270 A
Crest Factor* 2 @ 1000 A, 2.4 @ 833 A
Current measurement ac 100.1 Hz to 1 kHz 40 A 10 mA Accuracy > 10 A:  3.5 % rdg + 15 digits
Trigger Level for Inrush:  0.50 A
Trigger Level for Hz Filter OFF:  2.50 A
Trigger Level for Hz Filter ON:  0.50 A
400 A 100 mA Accuracy > 10 A :  3.5 % rdg + 5 digits
Trigger Level for Inrush:  5.0 A
Trigger Level for Hz Filter OFF:  2.5 A
Trigger Level for Hz Filter ON:  2.5 A
2000 A; 1400 ac rms 1 A Accuracy > 10 A:  3.5 % rdg + 5 digits
Trigger Level for Inrush:  5 A
Trigger Level for Hz Filter OFF:  8 A
Trigger Level for Hz Filter ON:  8 A
Frequency measurement Measurement range  5.0 Hz to 1 kHz Resolution  0.1 Hz (15 Hz to 399.9 Hz); 1 Hz (400 Hz to 1 kHz) Accuracy - 5.0 Hz to 100 Hz  0.2 % + 2 counts
Accuracy - 100.1 Hz to 1 kHz  0.5 % + 5 counts
Trigger level  Refer to current and voltage tables
* Add 2 % to error spec for CF > 2

Manufacturer Specs - General Specifications

Batteries Six 1.5 V AA NEDA 15 A or IEC LR6
Battery life (with typical usage, backlight off) 100 hours
Test leads Rated to 1000 V
Weight .814 kg (1.8 lb)
Jaw size 58 mm (2.28 in)
Dimensions (L x W x D) 300 mm x 98 mm x 52 mm (12 in x 3.75 in x 2 in)
Safety rating IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III

Manufacturer Specs - Environmental Specifications

Operating temperature 32 °F to + 122 °F (0 °C to +50 °C)
Storage temperature -4 °F to 140 °F (-20 °C to +60 °C)
Operating humidity 0 to 95 % (non-condensing)
Operating altitude 2000 m
Storage altitude 10,000 m
IP rating 42 (indoor use only)
Drop test requirements 1 m
EMI, RFI, EMC FCC part 15, IEC/EN 61326-1:1997 class B, IEC/EN 61326:1997 3V/m, performance criteria B, EN61325
Temperature coefficients Current: 0.1 % of reading per °C outside 22 °C to 24 °C
Voltage: 0.1 % of reading per °C outside 22 °C to 24 °C

Tech Specs

True RMS Yes
Maximum Current AC 2000 A
Maximum Current DC 2000 A
Maximum Voltage AC 600 V
Maximum Voltage DC 1000 V
Maximum Conductor Size 2.18 IN
Resistance No
Capacitance No
Auto Ranging/Manual Auto Ranging
In-Rush Current Yes

Test Equipment General Attributes

Unique Features The large 58 mm (2.3 in) jaw capacity is suitable for large or multiple conductors. Quickly analyze readings using the MIN, MAX, and AVG functions. A large backlit display allows for easy visibility in low-lit areas.
Warranty 3 YEARS
Safety Approval CE, CSA
IP Rating IP42
Product Weight 1.8 LBS
Product Height 2 IN
Product Length 12 IN
Product Width 3.75 IN
Data Logging No
Calibration Included None
CA Residents Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Power Supply Voltage Battery Powered
Country of Origin China
Shipping Height 4.30 IN
Shipping Length 14.30 IN
Shipping Width 8.40 IN
