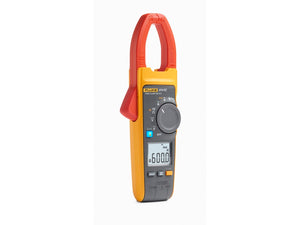

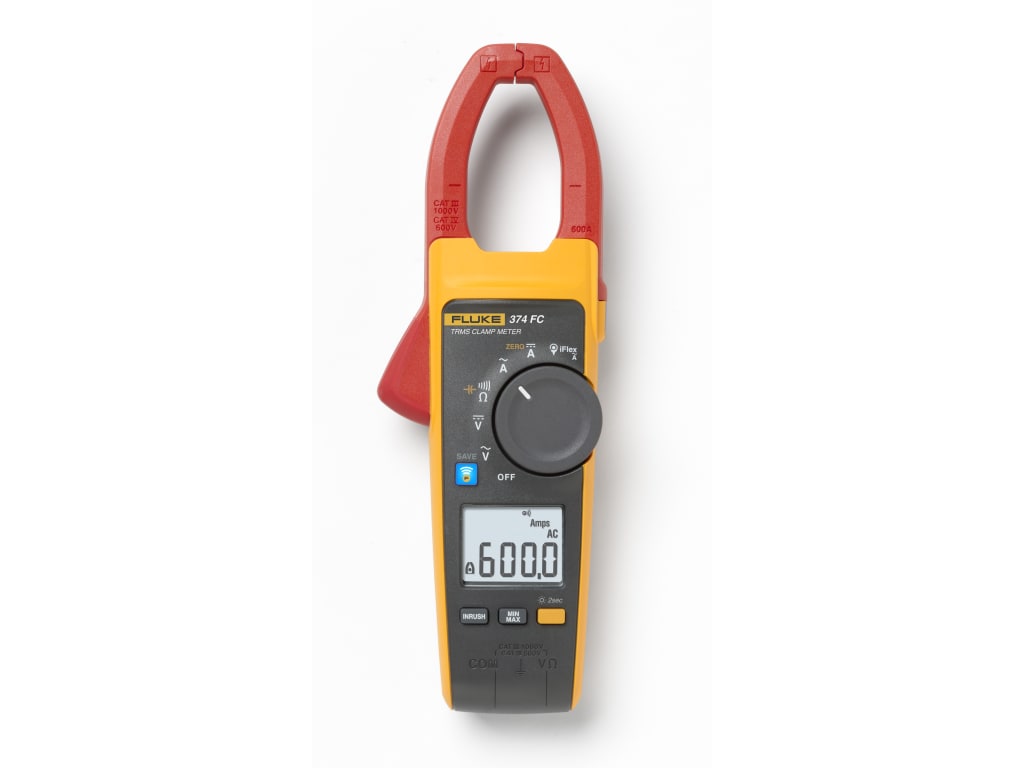

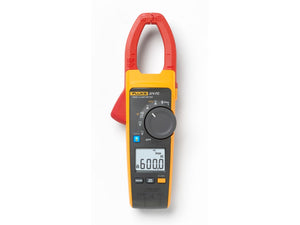

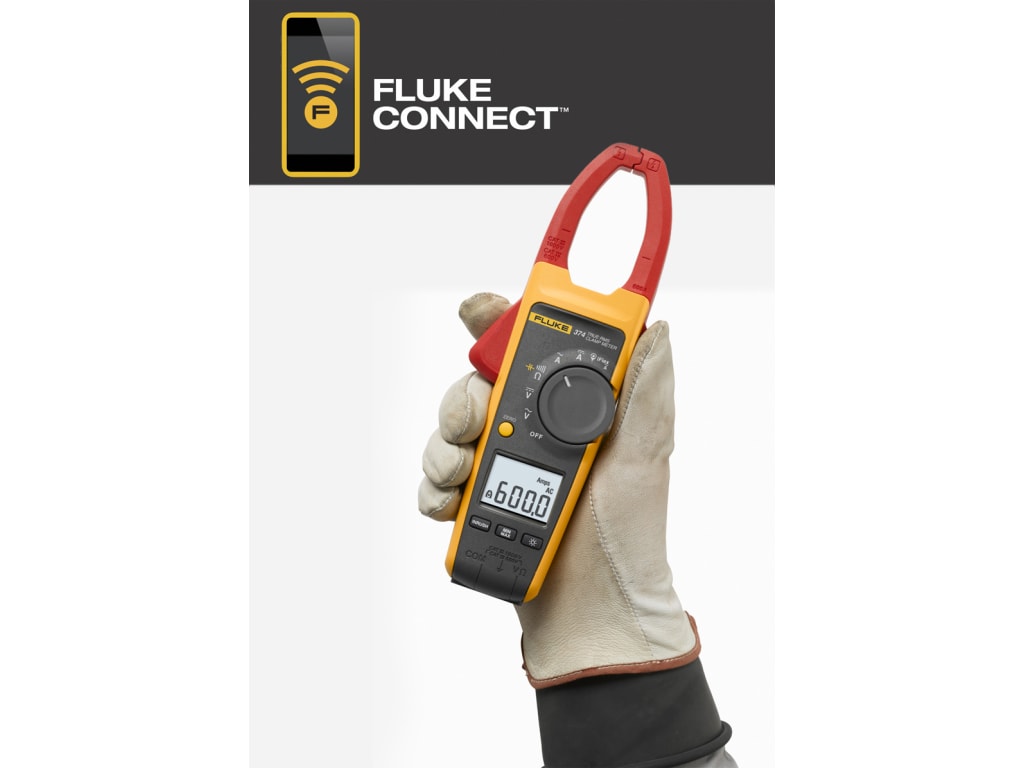

Fluke 374 FC - True RMS AC/DC Clamp Meter
Fluke 374 FC Wireless True-RMS AC/DC Clamp Meter with Fluke Connect Compatibility, 600A AC/DC, 600V AC/DC
- Compatible with Fluke Connect app - transmit measurements directly to your mobile device and more
- Provides standard features needed for everyday troubleshooting
- AC/DC voltage: 1000V
- DC current: 600A
- AC current: 600A (jaw), 2500A (optional iFlex)
- Measures resistance to 6000 Ω with continuity detection
- Capacitance, display hold, inrush, backlight, DC zero, min/max
- CAT III 1000 V, CAT IV 600 V
Description
Fluke 374 FC
Compatible with Fluke Connect app - transmit measurements directly to your mobile device and more.
Provides standard features needed for everyday troubleshooting:
- AC/DC voltage: 1000V
- DC current: 600A
- AC current: 600A (jaw), 2500A (optional iFlex)

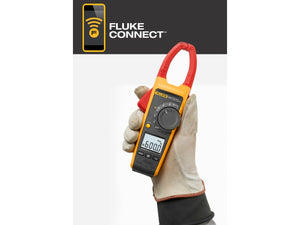

The Fluke 374 FC, part of the Fluke Connect family of wireless test tools, delivers the standard features you need for everyday troubleshooting. Measure AC and DC current to 600 A with the fixed jaw clamp or add an optional iFlex flexible current probe to measure up to 2500 A. The large diameter and flexible design of the iFlex probe make it easier to measure around large conductors in tight spaces or to access tightly packed wires.
Use it to measure AC/DC voltage to 1000 V and resistance to 6000 Ω.
Use wireless connectivity to keep a safe distance

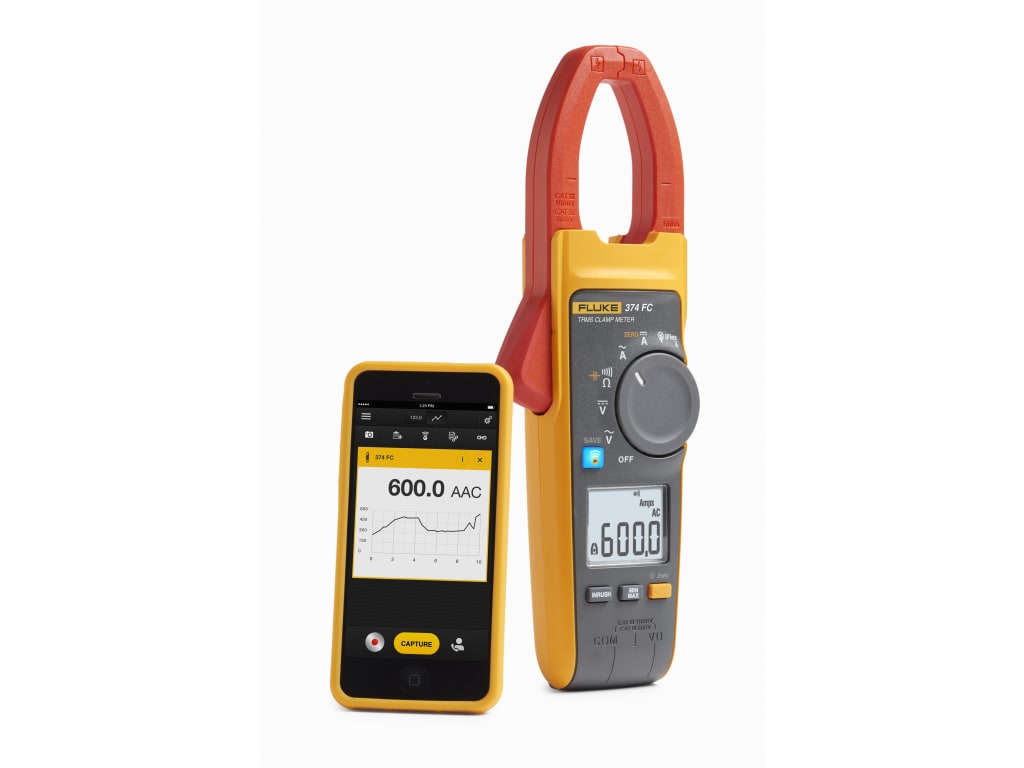

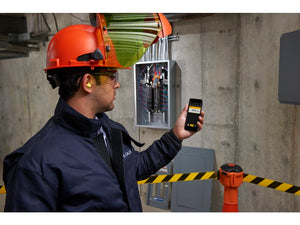

The 374 FC is Fluke Connect-enabled to wirelessly transmit results via Bluetooth to Apple and Android devices. That means you can read the results outside of the arc flash zone, wearing less PPE. Save results to the cloud, create/send reports via email, or share real-time readings using ShareLive video calls.
Versatile feature set
With True-RMS AC voltage and current measurements, the 374 FC enables accurate troubleshooting of non-linear signals. Log and trend measurements to pinpoint intermittents while performing other tasks. The Fluke 374 FC is the direct replacement for the Fluke 374 Clamp Meter.
Manufacturer Specifications
| Specifications Fluke 370 Series FC True-rms Clamp Meters | |
|---|---|
| CAT rating | CAT III 1000 V, CAT IV 600 V |
| A ac range | 600 A with clamp jaws, 2500 A with optional iFlex flexible current clamp |
| A dc range | 600 A |
| Best resolution | 0.1 A |
| V ac range | 1000 V |
| V dc range | 1000 V |
| mV dc range | 500 mV |
| Ohms range | 6000 Ω |
| Frequency | 5-500 Hz |
| Capacitance | 1 µF - 1000 µF |
| Auto shutoff | Yes |
| True-RMS | Yes |
| Display hold | Yes |
| Inrush measurements | Yes |
| Backlight | Yes |
| DC zero | Yes |
| Min/max | Yes |
| iFlex flexible current clamp | Optional |
| Fluke Connect compatible | Yes |
Tech Specs
| Category | Clamp Meters |
| True RMS | Yes |
| Maximum Current AC | 600 A |
| Maximum Current DC | 600 A |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Maximum Conductor Size | 34 mm (1.34 in) |
| Resistance | Yes |
| Auto/Manual Ranging | Auto Ranging |
| In-Rush Current | Yes |
Test Equipment General Attributes
| Unique Features | Transmit results wirelessly via Fluke Connect |
| Warranty | 3 YEARS |
| Safety Approval | CE, CSA |
| Interfaces I/O | Bluetooth |
| IP Rating | IP30 |
| Product Weight | 410 g (0.90 lbs) |
| Product Height | 45 mm (1.77 in) |
| Product Length | 249 mm (9.80 in) |
| Product Width | 85 mm (3.35 in) |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | 3A992 |
| Calibration Included | None |
| CA Residents | Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Singapore |
| UPC | 095969798532 |
