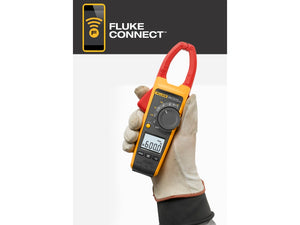

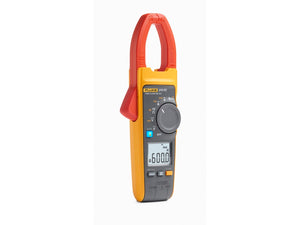

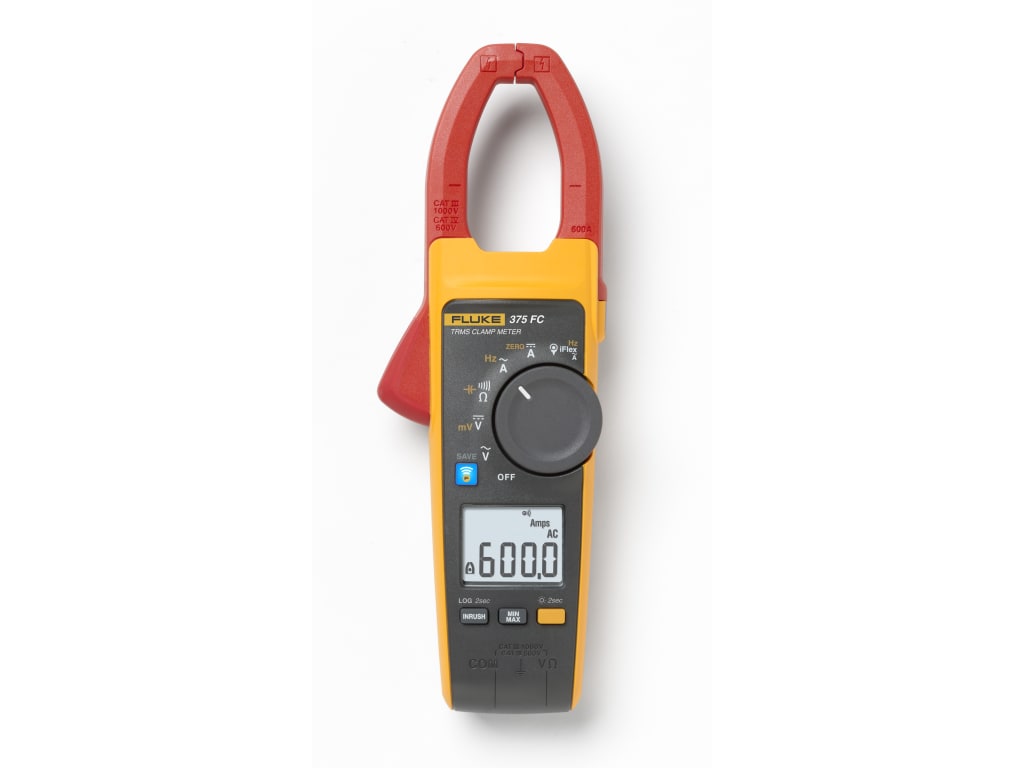

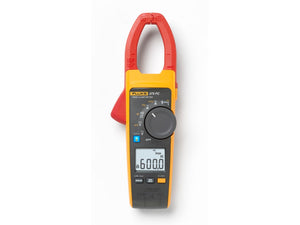

Fluke 375 FC - True RMS AC/DC Clamp Meter
Rating: 5 (5 Reviews) | Catalog: 5065976 | UPC: 095969798464 | Model: Fluke 375 FC
Fluke 375 FC
Compare
Fluke 375 FC Wireless True-RMS AC/DC Clamp Meter with Fluke Connect Compatibility
- Compatible with Fluke Connect app - transmit measurements directly to your mobile device
- AC/DC voltage: 1000 V
- DC current: 600 A
- AC current: 600 A (jaw), 2500 A (optional iFlex probe)
- Optional iFlex probes: part # i2500-10 (10”) and i2500-18 (18”)
- 500 mV DC measurement range for accessories
- VFD low-pass filter for accurate motor drive measurements
- Log and trend measurements to identify intermittents
- Functions: frequency, capacitance, display hold, inrush, backlight, DC zero, min/max
- CAT III 1000 V, CAT IV 600 V safety rated
Description
Fluke 375 FC
Compatible with the Fluke Connect app to transmit measurements directly to your mobile device. Includes 500 mV DC measurement range for interfacing with accessories. Features VFD low-pass filter for accurate motor drive measurements. Capable of logging and trending measurements to help pinpoint intermittent issues. For optional iFlex current probes, use part # i2500-10 (10”) or i2500-18 (18”).
Manufacturer Specs
Fluke 370 Series FC True-RMS Clamp Meters
| Specification | Fluke 376 FC | Fluke 375 FC | Fluke 374 FC |
|---|---|---|---|
| CAT rating | CAT III 1000 V, CAT IV 600 V | ||
| A ac range | 999.9 A (jaws), 2500 A with iFlex® | 600 A (jaws), 2500 A with optional iFlex® | 600 A (jaws), 2500 A with optional iFlex® |
| A dc range | 999.9 A | 600 A | 600 A |
| Best resolution | 0.1 A | ||
| V ac range | 1000 V | ||
| V dc range | 1000 V | ||
| mV dc range | 500 mV | ||
| Ohms range | 60.00 kΩ | 6,000 Ω | 6,000 Ω |
| Frequency | 5–500.0 Hz | ||
| Capacitance | 1 µF–1,000 µF | ||
| Auto shutoff | • | • | • |
| True-rms | • | • | • |
| Display hold | • | • | • |
| Inrush measurements | • | • | • |
| Backlight | • | • | • |
| DC zero | • | • | • |
| Min/max | • | • | • |
| VFD low pass filter | • | • | |
| Logging | • | • | |
| iFlex® flexible current clamp | Included | Optional | Optional |
| Fluke Connect® compatible | • | • | • |
| TPAK™ magnetic hanging strap | Included | Optional | Optional |
Tech Specs
Clamp Meters / Clamp Meters Template
| True RMS | Yes |
| Maximum Current AC | 600 A |
| Maximum Current DC | 600 A |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Maximum Conductor Size | 34 mm (1.34 in) |
| Resistance | Yes |
| Auto Ranging/Manual | Auto Ranging |
| In-Rush Current | Yes |
Test Equipment General Attributes
| Unique Features | Transmit results wirelessly via Fluke Connect |
| Warranty | 3 YEARS |
| Safety Approval | CE, CSA |
| Interfaces I/O | Bluetooth |
| IP Rating | IP30 |
| Product Weight | 410 grams (0.9039 lbs) |
| Product Height | 45 mm (1.77 in) |
| Product Length | 249 mm (9.80 in) |
| Product Width | 85 mm (3.35 in) |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030.32.0000 |
| ECCN Number | 3A992 |
| Calibration Included | None |
| CA Residents | Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Singapore |
