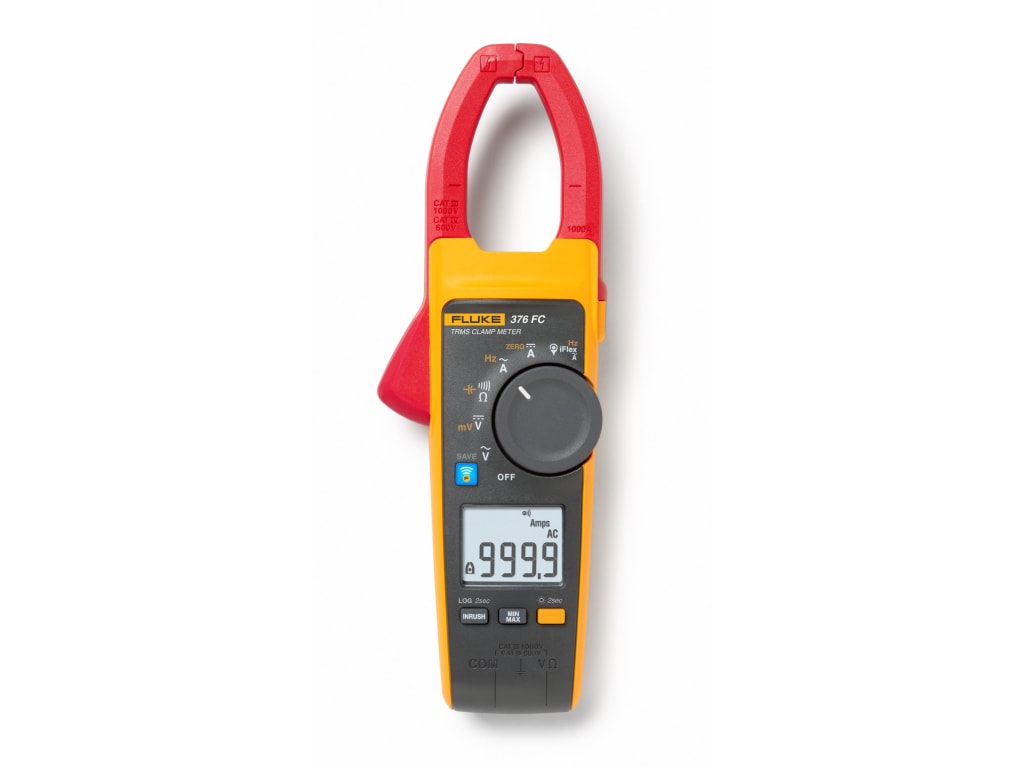

Fluke 376 FC - True-RMS Clamp Meter with 18 Inch iFlex
Rating: 4.5 (14 Reviews) | Catalog: 5065965 | UPC: 095969798396 | Model: Fluke 376 FC

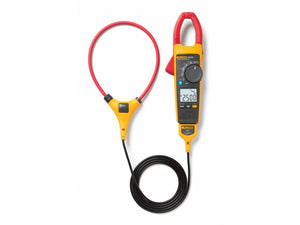

Fluke 376 FC with iFlex
Compare
1000A AC/DC TRMS CLAMPMETER W/ 18" IFLEX
- Compatible with Fluke Connect app - transmit measurements directly to your mobile device
- AC/DC voltage: 1000 V
- DC current: 999.9 A
- AC current: 999.9 A (jaw), 2500 A (iFlex probe)
- 500 mV DC measurement range to interface with accessories
- VFD low-pass filter for accurate motor drive measurements
- Log, trend, and monitor remotely to pinpoint faults
- Inrush measurement to capture starting current
- Capacitance, display hold, min/max, backlight, DC zero
- CAT III 1000 V, CAT IV 600 V safety rating
Description
The Fluke 376 FC True-RMS Clamp Meter with 18” iFlex flexible current probe is the advanced troubleshooting tool for industrial and commercial electricians. Part of the Fluke Connect family, it allows safe remote logging, trending, and monitoring of measurements via Bluetooth. With True-RMS accuracy, inrush capture, VFD low-pass filtering, and full CAT III 1000 V / CAT IV 600 V safety rating, it is designed for reliable and safe use.
Manufacturer Specs
Fluke 370 Series FC True-rms Clamp Meters Comparison
| Specification | Fluke 376 FC | Fluke 375 FC | Fluke 374 FC |
|---|---|---|---|
| CAT rating | CAT III 1000 V, CAT IV 600 V | ||
| A AC Range | 999.9 A (jaw), 2500 A (iFlex) | 600 A (jaw), 2500 A (optional iFlex) | 600 A (jaw), 2500 A (optional iFlex) |
| A DC Range | 999.9 A | 600 A | 600 A |
| Best Resolution | 0.1 A | ||
| V AC Range | 1000 V | ||
| V DC Range | 1000 V | ||
| mV DC Range | 500 mV | ||
| Ohms Range | 60.00 kΩ | 6,000 Ω | 6,000 Ω |
| Frequency | 5–500.0 Hz | ||
| Capacitance | 1 µF – 1000 µF | ||
| Auto shutoff | • | • | • |
| True-RMS | • | • | • |
| Display hold | • | • | • |
| Inrush measurements | • | • | • |
| Backlight | • | • | • |
| DC zero | • | • | • |
| Min/Max | • | • | • |
| VFD Low-pass filter | • | • | |
| Logging | • | • | |
| iFlex flexible current clamp | Included | Optional | Optional |
| Fluke Connect compatible | • | • | • |
| TPAK Magnetic Strap | Included | Optional | |
Tech Specs
| True RMS | Yes |
|---|---|
| Maximum Current AC | 2500 A |
| Maximum Current DC | 999.9 A |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Maximum Conductor Size | 34 mm (1.34 in) |
| Resistance | Yes |
| Auto/Manual Ranging | Auto Ranging |
| In-Rush Current | Yes |
Test Equipment General Attributes
| Unique Features | Wireless transmission via Fluke Connect, Includes iFlex Flexible Current Probe |
|---|---|
| Warranty | 3 YEARS |
| Safety Approval | CE, CSA |
| Interfaces I/O | Bluetooth |
| Product Weight | 410 g (0.90 lbs) |
| Dimensions | 249 × 85 × 45 mm (9.80 × 3.35 × 1.77 in) |
| Data Logging | Yes |
| ECCN Number | 3A992 |
| Calibration Included | None |
| CA Residents | Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Battery Type | AA |
| Power Supply | Battery Powered |
| Country of Origin | Singapore |
| UPC | 095969558570 |
