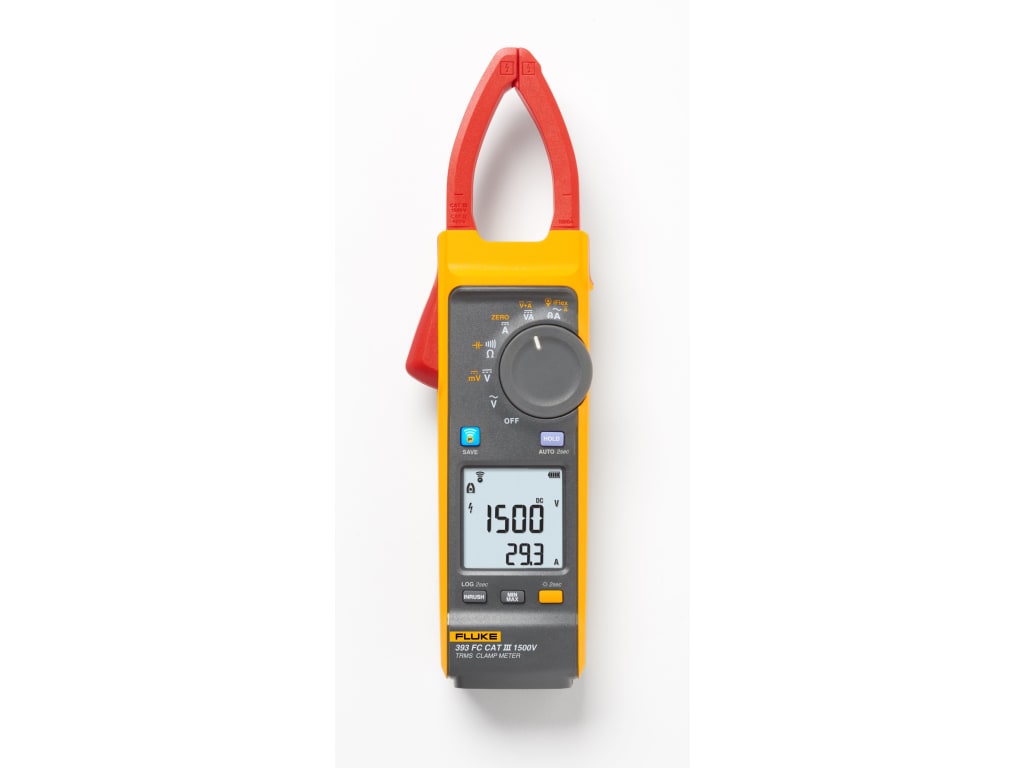

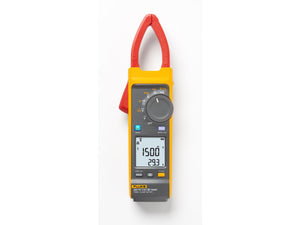

Fluke 393 FC - CAT III 1500V TRMS Wireless Clamp Meter with iFlex (2500 A AC/999.9 A DC)
Catalog: 5274864 | UPC: 195112019382 | Model: Fluke 393 FC
Description
Fluke 393 FC - CAT III 1500V TRMS Wireless Clamp Meter with iFlex (2500 A AC/999.9 A DC)
Maximum AC current = 2500 A
Maximum DC current = 999.9 A
Maximum AC voltage = 1000 V
Maximum DC voltage = 1500 V
True RMS = yes

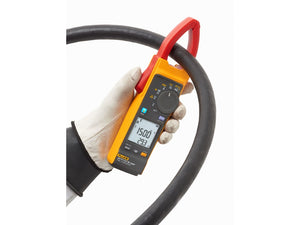

The 393 FC CAT III 1500 V True-RMS Clamp Meter with iFlex is designed for technicians who work in high voltage DC environment: solar arrays, wind power, electric railways, data centers battery banks for uninterruptible power supplies. The clamp will measure up to 1500 V DC, 1000 V AC, and up to 999.9 A DC or AC through the clamp jaw. The included iFlex flexible current probe extended AC current measurements up to 2500 amps. This clamp has a thin jaw, giving you access to cables in crowded combiner boxes. Test leads are designed with your work in mind and are also rated to CAT III 1500 V DC.
Other key functions:
- IP54 rated, ideal for work outdoors on solar arrays and wind power systems
- DC power measurement, showing readings in kVA
- Audio Polarity indicator helps prevent accidental miswires
- Visual Continuity turns provide a bright green light in the display, ideal when working in dark and noisy environments
- Logging and reporting of test results via Fluke Connect software

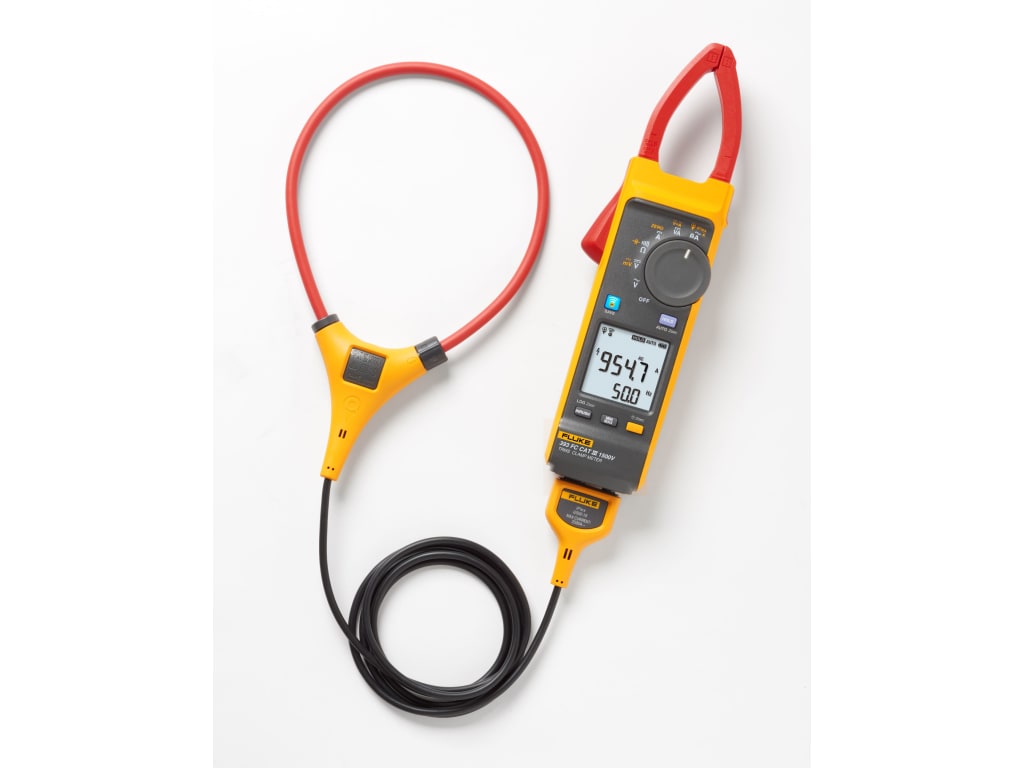

- When measuring AC current the included iFlex flexible current probe gives you unparalleled access to cable is tight spaces. The iFlex probe can be twisted through extremely small spaces and provide accurate current measurements.

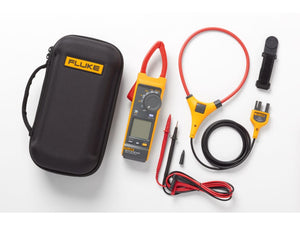

In The Box
- Fluke 393 FC CAT III 1500 V True-RMS Clamp Meter with iFlex
- Test leads, CAT III 1500 V rated, right angle plugs, with safety caps
- iFlex 18 inch flexible current probe
- TPAK magnetic hanging strap
- Premium carrying case
- 3-year warranty
Manuals / Guides
Manuals
- Manual
- Calibration manual
Spec Sheets
- Data Sheet
Application Notes
- Fluke 393 FC CAT III Application Note
- Fluke 393 FC Troubleshoot Common PV Issues Application Note
- Fluke 393 FC Open Non-Load Disconnects Application Note
- Fluke 393 FC Commission PV System Application Note
- Fluke 393 FC Finding PV Faults Application Note
- Application Note
Other
- Memory volatility
- Safety information
- Fluke Solar Industry Solutions
- Carrying Case Selection Guide
- Hioki - CM4371-90
Manufacturer Specs
Please click here for technical specifications.
Tech Specs
| True RMS | Yes |
| Maximum Current AC | 2500 A |
| Maximum Current DC | 999.9 A |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1500 V |
| Maximum Conductor Size | 34 MM (1.34 IN) |
| Resistance | Yes |
| Capacitance | Yes |
| In-Rush Current | Yes |
Test Equipment General Attributes
| Product Weight | 1.14 LBS |
| Product Height | 1.92 IN |
| Product Length | 11.06 IN |
| Product Width | 3.30 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | 3A992 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
