Product Overview

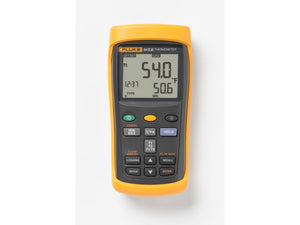

Fluke 54-2 B 60HZ - Dual Input Digital Thermometer with Data Logging
Catalog: 3821070 | UPC: 095969565110 | Model: Fluke 54-2 B 60HZ

DUAL INPUT THERMOMETER W/ USB RECORDING, 60HZ NOISE REJECTION

Features

• Dual input digital thermometer
• Logs up to 500 points of data at user adjustable recording intervals
• Thermocouple types: J, K, T, E, N, R, S
• Large backlit dual display shows any combination of T1, T2, T1-T2, plus MIN, MAX, or AVG
• Provides a recall function to easily review logged data
• Includes a real-time clock that captures the exact event time
• Infrared USB communication port to allow data to be exported to optional FlukeView Forms PC software
• Electronic offset function that compensates for thermocouple errors to maximize overall accuracy
• Laboratory accuracy (0.05% + 0.3°C)
• Presents results in °C, °F, or Kelvin (K) on a large backlit display

Description

Fluke 54-2 B 60HZ

• Logs up to 500 points of data at user adjustable recording intervals
• Thermocouple types: J, K, T, E, N, R, S
• Large backlit dual display shows any combination of T1, T2, T1-T2, plus MIN, MAX, or AVG
• Provides a recall function to easily review logged data
• Includes a real-time clock that captures the exact event time

Dual Input Digital Thermometer with Data Logging

Fluke 54 II B dual input digital thermometer can log up to 500 points of data to internal memory. Fast response and laboratory accuracy (0.05% + 0.3 °C). Take contact temperature for checking motors, insulation, breakers, pipes, corroded connections, liquids, and wires with industrial standard J, K, T, E, N, R, and S type thermocouple (temperature sensors).

Additional features:

• Easy-to-access battery door that allows replacing the battery without breaking the calibration seal
• Comes with splash- and dust-resistant case protected by an impact-absorbing holster and a three-year warranty
• Powered by three, standard AA batteries
• Includes a real-time clock that captures the exact event time
• Features an infrared USB communication port to allow data to be exported to optional FlukeView Forms Temperature PC software for further analysis and graphing
• Includes an electronic offset function that compensates for thermocouple errors to maximize overall accuracy
• Handles temperatures up to >900°C (1600°F)
• Provides a user-friendly front panel that is easy to set up and operate
• Offers sleep mode to increase battery life; 1000-hour battery life typical
• Offers optional ToolPak accessory to hang the thermometer from any metal object (with the rare earth magnet) or secure around a pipe (with hook-and-loop straps) for hands-free operation

Several Versions Available

Fluke offers several versions of its 50 Series II digital thermometer. The chart below outlines several main features of each:

Thermocouple Temperature Ranges

• J-type Thermocouples: -210° C to 1200° C (-346° F to 2,192° F)
• K-type Thermocouples: -200° C to 1372° C (-328° F to 2,501.6° F)
• T-type Thermocouples: -250° C to 400° C (-418° F to 752° F)
• E-type Thermocouples: -150° C to 1000° C (-238° F to 1,832° F)
• N-type Thermocouples: -200° C to 1300° C (-328° F to 2,372° F)
• R and S-type Thermocouples: 0° C to 1767° C (32° F to 3,212.6° F)

Specifications

Tech Specs

Test Equipment General Attributes
