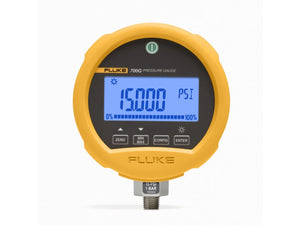

Fluke 700G08 Precision Pressure Gauge Calibrator, 1,000 PSIG

Catalog: 4097592  |  UPC: 095969611091  |  Model: Fluke 700G08

Fluke 700G Series Process Pressure Gauges

Compare

Fluke 700G08 Precision Pressure Test Gauge, -14 to 1000 psi, -.97 to 69 bar

  • 700G08 Precision Pressure Gauge Calibrator, 1,000 PSIG
  • Precision pressure measurement from ±10 inH₂O/20 mbar to 10,000 psi/690 bar
  • Accuracy to 0.05 % of full scale
  • Reference class gauge accuracies to 0.04 % of reading
  • Easy to use, rugged construction for reliable performance
  • CSA; Class 1, Div 2, Groups A-D rating
  • ATEX rating: II 3 G Ex nA IIB T6

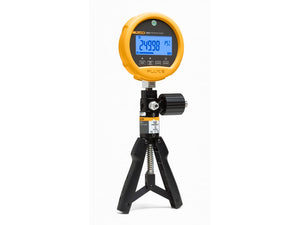

  • Combine with the 700PTPK or 700HTPK pump kits for complete solutions up to 10,000 psi (690 bar)

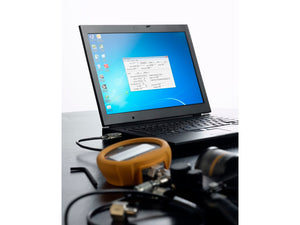

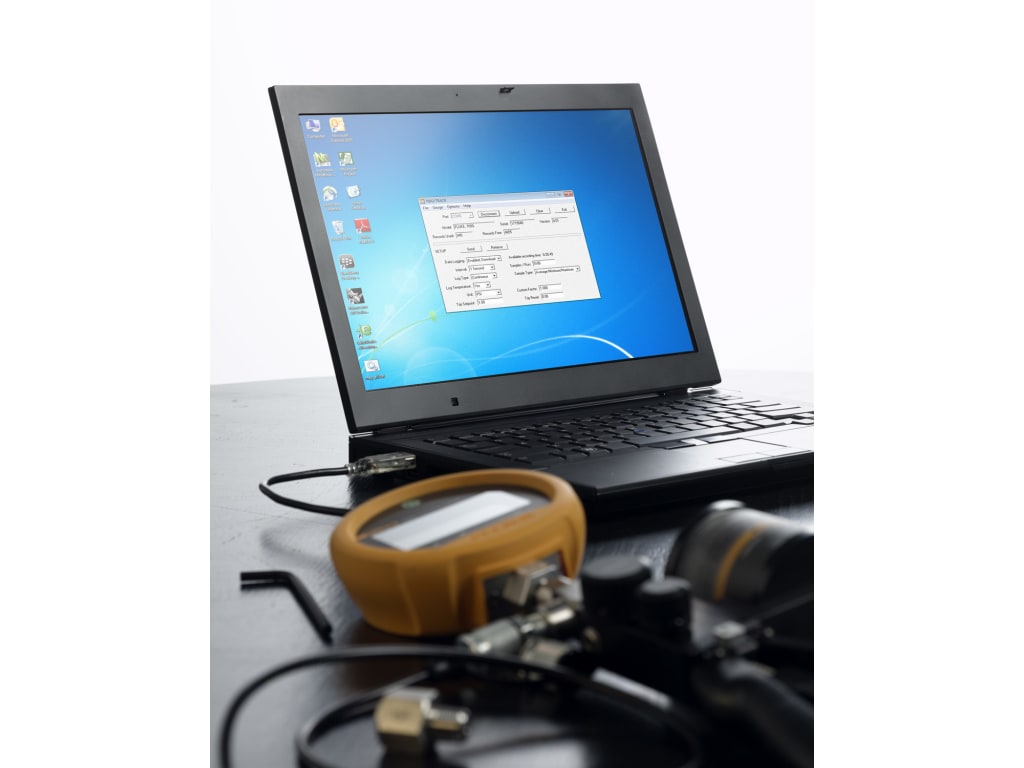

  • Log up to 8,493 pressure measurements to memory (requires 700G/TRACK software)
  • Three-year warranty

Description

Fluke 700G08 Precision Pressure Gauge Calibrator, 1,000 PSIG

The Fluke 700G08 is part of Fluke’s precision digital pressure gauge calibrators. Rugged and reliable, it delivers accurate pressure measurement from 15 psi / 1 bar up to 10,000 psi / 690 bar, with ±0.05% accuracy.

Compatible with most hydraulic and pneumatic test pumps, it can be combined with Fluke’s 700PTPK or 700HTPK kits for complete calibration solutions. The 700G/TRACK software enables uploading of over 8,000 logged pressure readings for analysis. Built for field and lab environments, the 700G08 offers CSA and ATEX hazardous area approvals.

Manufacturer Specs

Model Range Resolution Accuracy Burst Pressure
700G04 -14 psi to 15 psi / -.97 bar to 1 bar 0.001 psi / 0.0001 bar ±0.05% FS (positive), ±0.1% FS (vacuum) 60 psi / 4 bar
700G05 -14 psi to 30 psi / -.97 bar to 2 bar 0.001 psi / 0.0001 bar ±0.05% FS 120 psi / 8 bar
700G06 -12 psi to 100 psi / -.83 bar to 6.9 bar 0.01 psi / 0.0001 bar ±0.05% FS 400 psi / 26 bar
700G27 -12 psi to 300 psi / -.83 bar to 20 bar 0.01 psi / 0.001 bar ±0.05% FS 1200 psi / 80 bar
700G07 -12 psi to 500 psi / -.83 bar to 34 bar 0.01 psi / 0.001 bar ±0.05% FS 2000 psi / 138 bar
700G08 -14 psi to 1000 psi / -.97 bar to 69 bar 0.1 psi / 0.001 bar ±0.05% FS 4000 psi / 266 bar
700G29 -14 psi to 3000 psi / -.97 bar to 200 bar 0.1 psi / 0.01 bar ±0.05% FS 10000 psi / 690 bar
700G30 -14 psi to 5000 psi / -.97 bar to 340 bar 0.1 psi / 0.01 bar ±0.05% FS 10000 psi / 690 bar
700G31 -14 psi to 10000 psi / -.97 bar to 690 bar 1 psi / 0.01 bar ±0.05% FS 20000 psi / 1035 bar

Temperature Compensation: 0 °C to 50 °C (32 °F to 122 °F). For -10 °C to 0 °C and 50 °C to 55 °C, add 0.005 % FS/°C.

Media Compatibility: 10 inH₂O, 1, 15, 30 psi: clean dry non-corrosive gas. 100–1000 psi: liquids/gases compatible with 316 SS. Above 1000 psi: non-flammable, non-toxic, non-oxidizing liquids/gases compatible with 316 SS.

Mechanical Specs: Dimensions: 12.7 × 11.4 × 3.7 cm (5 × 4.5 × 1.5 in). Pressure connection: ¼ in NPT Male. Housing: Cast ZNAL, 0.56 kg (1.22 lb) with holster. Display: 5.5 digits, 16.53 mm (0.65 in), 20-segment bar graph. Power: 3 AA batteries, 1500–2000 h battery life.

Tech Specs

Process / Calibration / Pressure Gauges Template
Type (Pressure) Compound (Vacuum to Gauge), Gauge, Vacuum
Style Digital Indicating
Accuracy 0.05% FS (Grade 5A), 0.1% FS (Grade 4A)
Units of Measure bar, cmH₂O, ftH₂O, inH₂O, inHg, kg/cm², kPa, mbar, mmHg, MPa, Custom, psi, Torr
Gauge Case Size 4.5 in (114 mm)
Case Material ZnAl Alloy
Wetted Parts 316 Stainless Steel
Special Functions Adjustable Sample Rate, Damping, Data Logging, Min/Max Hold, PC Communications, Rubber Boot, Temp Compensated, Zero Function
Special Applications Hazardous Area Approval
Power Battery
Connection Location Lower
Max Range 1000 psi
Min Range -14 psi
# Digit Display 5.5
Counts 100000
Process Connection ¼ in NPT

Test Equipment General Attributes

Unique Features Bright backlit display with 20 segment bar graph, rugged holster, media compatibility with 316 SS
Warranty 3 YEARS
Safety Approval CSA
Interfaces I/O USB
Storage Internal Memory
IP Rating IP64
Product Weight 1.22 LBS
Product Height 5 IN
Product Length 1.46 IN
Product Width 4.5 IN
Data Logging Yes
HTS/Schedule B Number 9026.20.8000
ECCN Number EAR99
Calibration Included NIST Calibration
Battery Type AA
Power Supply Voltage Battery Powered
Country of Origin China
UPC 095969611091
