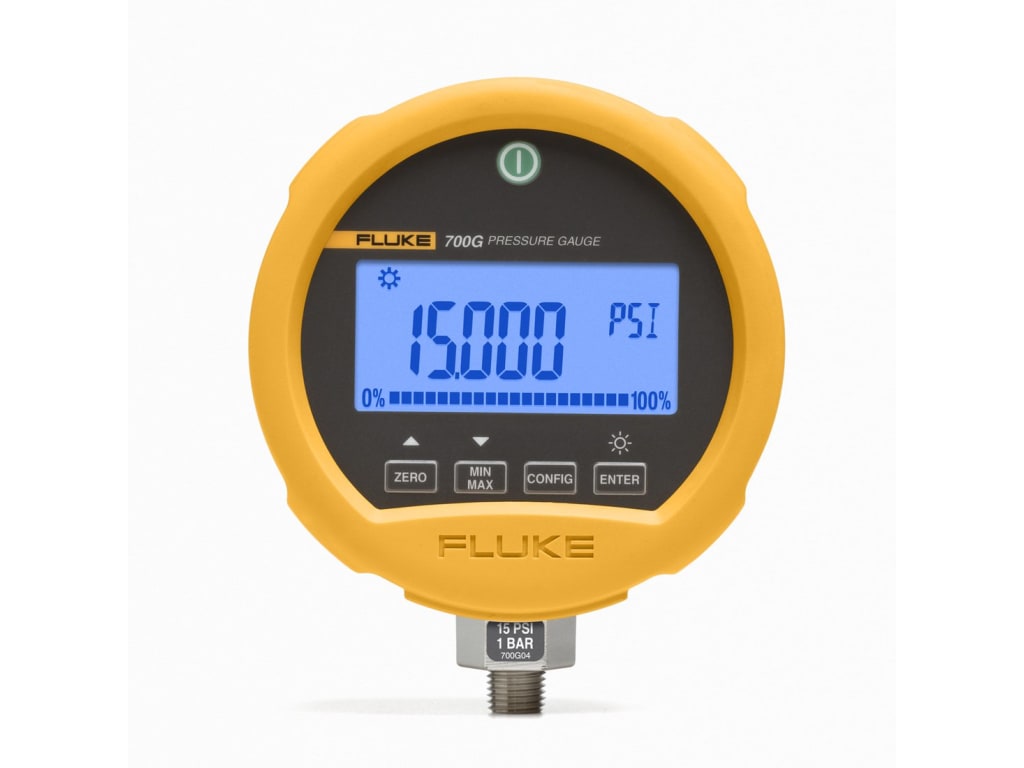

Fluke 700G31 Precision Pressure Gauge Calibrator, 10,000 PSIG
Rating: 0 reviews | Catalog: 4097622 | UPC: 095969611121 | Model: Fluke 700G31
Fluke 700G Series Process Pressure Gauges
Compare
Fluke 700G31 Precision Pressure Test Gauge, -14 to 10000 psi, -.97 to 690 bar
- 700G31 Precision Pressure Gauge Calibrator, 10,000 PSIG
- Precision pressure measurement from ±10 inH₂O/20 mbar to 10,000 psi/690 bar
- Accuracy to 0.05 % of full scale
- Reference class gauge accuracies to 0.04 % of reading
- Easy to use, rugged construction for reliable performance
- CSA; Class 1, Div 2, Groups A-D rating
- ATEX rating: II 3 G Ex nA IIB T6

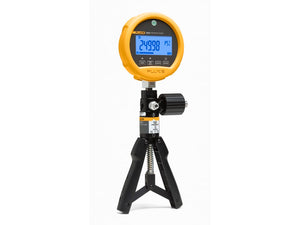

- Combine with Fluke 700PTPK or 700HTPK pump kits for a complete solution

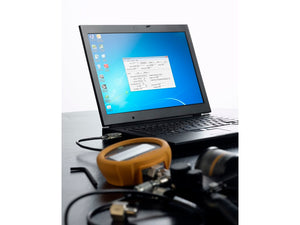

- Log up to 8,493 pressure measurements (with 700G/TRACK software)
- Three-year warranty
Description
Fluke 700G31 Precision Pressure Gauge Calibrator, 10,000 PSIG
Designed for precise, rugged, and easy-to-use pressure measurement up to 10,000 psi (690 bar) with accuracy of 0.05% FS. CSA and ATEX safety rated, this calibrator ensures reliable operation even in hazardous areas. Combine with Fluke Test Pump Kits (700PTPK or 700HTPK) for a complete pressure testing and calibration solution. Store and upload over 8,000 logged pressure measurements with 700G/TRACK software.
Manufacturer Specs
| Model | Range | Resolution | Accuracy | Burst Pressure |
|---|---|---|---|---|
| 700G04 | -14 psi to 15 psi / -.97 bar to 1 bar | 0.001 psi / 0.0001 bar | ±0.05% FS (Positive), ±0.1% FS (Vacuum) | 60 psi / 4 bar |
| 700G05 | -14 psi to 30 psi / -.97 bar to 2 bar | 0.001 psi / 0.0001 bar | ±0.05% FS | 120 psi / 8 bar |
| 700G06 | -12 psi to 100 psi / -.83 bar to 6.9 bar | 0.01 psi / 0.0001 bar | ±0.05% FS | 400 psi / 26 bar |
| 700G27 | -12 psi to 300 psi / -.83 bar to 20 bar | 0.01 psi / 0.001 bar | ±0.05% FS | 1200 psi / 80 bar |
| 700G07 | -12 psi to 500 psi / -.83 bar to 34 bar | 0.01 psi / 0.001 bar | ±0.05% FS | 2000 psi / 138 bar |
| 700G08 | -14 psi to 1000 psi / -.97 bar to 69 bar | 0.1 psi / 0.001 bar | ±0.05% FS | 4000 psi / 266 bar |
| 700G29 | -14 psi to 3000 psi / -.97 bar to 200 bar | 0.1 psi / 0.01 bar | ±0.05% FS | 10000 psi / 690 bar |
| 700G30 | -14 psi to 5000 psi / -.97 bar to 340 bar | 0.1 psi / 0.01 bar | ±0.05% FS | 10000 psi / 690 bar |
| 700G31 | -14 psi to 10000 psi / -.97 bar to 690 bar | 1 psi / 0.01 bar | ±0.05% FS | 20000 psi / 1035 bar |
Additional Manufacturer Details
| Temperature Compensation | 0 °C to 50 °C (32 °F to 122 °F) to rated accuracy. For -10 °C to 0 °C and 50 °C to 55 °C, add .005 % FS/°C. |
|---|---|
| Media Compatibility | 10 inH₂O to 30 psi: non-corrosive gas. 100–1000 psi: liquids or gases compatible with 316 SS. Above 1000 psi: non-flammable, non-toxic, compatible with 316 SS. |
| Dimensions (HxWxD) | 12.7 cm x 11.4 cm x 3.7 cm (5 x 4.5 x 1.5 in) |
| Pressure Connection | ¼ in NPT Male |
| Housing / Weight | Cast ZNAL, 0.56 kg (1.22 lb) with holster |
| Display | 5 ½ digits, 16.53 mm (0.65 in) high, 20-segment bar graph |
| Power | Three AA alkaline batteries |
| Battery Life | 1500 hours (continuous), 2000 hours at slow sample rate |
Tech Specs
Process / Calibration / Pressure Calibration / Process Pressure Gauges
| Type | Compound (Vacuum to Gauge), Gauge, Vacuum |
|---|---|
| Style | Digital Indicating |
| Accuracy | 0.05% FS (Grade 5A Precision Test), 0.1% FS (Grade 4A Precision Test) |
| Units of Measure | bar, ftH₂O, inHg, kg/cm², kPa, MPa, psi, custom units (digital) |
| Gauge Case Size | 4.5" (114 mm) |
| Gauge Case Material | ZnAl Alloy |
| Wetted Part Material | Stainless Steel (316 SS) |
| Special Functions | Adjustable Sample Rate, Damping, Data Logging, Min/Max Hold, PC Communication, Protective Boot, Temperature Compensated, Zero Function |
| Special Applications | Hazardous Area Approval (CSA, ATEX) |
| Power | Battery |
| Connection Location | Lower |
| Max Pressure Range | 10000 psi |
| Min Pressure Range | -14 psi |
| Digit Display | 5.5 digits |
| Counts | 100000 |
| Process Connection | ¼ in NPT Male |
Test Equipment General Attributes
| Unique Features | Backlit display with bar graph, rugged holster, media compatibility with 316 SS |
|---|---|
| Warranty | 3 Years |
| Safety Approval | CSA |
| Interfaces I/O | USB |
| Storage | Internal Memory |
| IP Rating | IP64 |
| Product Weight | 1.22 lbs |
| Product Height | 5 in |
| Product Length | 1.46 in |
| Product Width | 4.5 in |
| Data Logging | Yes |
| HTS/Schedule B Number | 9026.20.8000 |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Battery Type | AA |
| Power Supply | Battery Powered |
| Country of Origin | China |
| UPC | 095969611121 |
