Product Overview

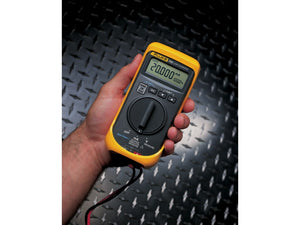

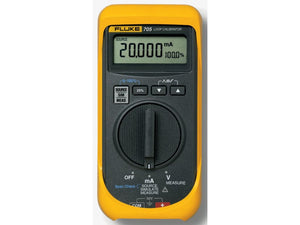

Fluke 705 Loop Calibrator
Catalog: 665091 | UPC: 095969062565 | Model: Fluke 705

Fluke 705 Loop Calibrator, .02% Accuracy

Features

• A large display and simple, pushbutton interface for ease of use
• Simultaneous mA and % readout for quick, easy interpretation of readings
• mA accuracy of 0.02%
• Push button 25% steps for fast, easy linearity checks. Save time over traditional knob type controls
• "Span Check" for fast confirmation of zero and span
• Selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests
• 24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM
• Single 9V battery that is easily changed
• 0 - 20 mA or 4 - 20 mA default start up modes

Description

Low cost calibrator muscle.

The new Fluke 705 Loop Calibrator is a cost-effective, integrated solution for calibration, repair and maintenance of current loops. It features:

• mA sourcing, simulation and measurement
• 0.02% accuracy and 0.001 mA resolution
• Simultaneous mA and % of span display
• Selectable step or ramp outputs
• 24 V Loop supply with mA measure
• 0-28 VDC measurement to check Loop Voltage
• Easy battery exchange without opening the case
• Compact case with separate protective holster
• Three year warranty

In The Box

• AC70A Alligator Clips
• C10 protective yellow holster with Flex-Stand
• Instruction sheet
• TL75 safety-designed test lead set
• NIST-traceable calibration report and data

Specifications

Current Measurement

Current Sourcing

Current Simulation

Loop Power

While measuring mA, 24 V

Voltage Measurement

Environmental Specifications

• Operating Temperature: -10 ºC to 55 ºC
• Storage Temperature: -40 ºC to 60 ºC
• Humidity (Without Condensation): 0 to 90% (0 ºC to 35 ºC); 0 to 70% (35 ºC to 55 ºC)
• Temperature Coefficient: -10 ºC to 18 ºC, 28 ºC to 55 ºC, ±.005% of range per ºC

Safety Specifications

• Safety: CSA C22.2 No. 1010.1:1992
• EMC: EN50082-1:1992 and EN55022:1994 Class B
• Maximum voltage: 30 V

Mechanical & General Specifications

• Size: 152 x 70 x 41 mm
• Weight: 340g
• Batteries: One 9V battery
• Warranty: Three years
• Shock & Vibration: per MIL-T-28800 for a Class 2 Instrument
• Display current and % of span: Yes
• Auto step, auto ramp: Yes
• Span Check: Yes
