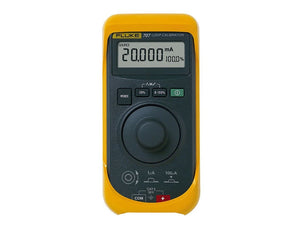

Fluke 707 Loop Calibrator

Rating: 4.5 (2 Reviews)  |  Catalog: 1617262  |  UPC: 095969107150  |  Model: Fluke 707

Fluke 707

Compare

Fluke 707 Loop Calibrator with Quick Click Knob, .015% Accuracy

  • High performance loop calibrator for calibration, repair, and maintenance
  • Large display and quick-click interface for one-handed operation
  • Simultaneous mA and % readout
  • mA accuracy of 0.015%
  • 1 µA resolution for mA source, simulate, and measure

Description

Fluke 707 - Loop Calibrator

High performance loop calibrator with quick-click knob for calibration, repair, and maintenance. Features a large display with simultaneous mA and % readout. Accuracy of 0.015% with 1 µA resolution. Rugged, compact, and EMI/dust/splash resistant with removable battery door for easy changes.

Manufacturer Specs

General Specifications

Maximum Voltage 30 volts; Non-operating temp –4 °C to 60 °C
Operating Temperature –10 °C to 55 °C
Relative Humidity 95 % (10–30 °C); 75 % (30–40 °C); 45 % (40–50 °C); 35 % (50–55 °C)
Operating Altitude 3,000 m max
Shock 1 m drop test
Vibration Random, 2 g, 5 Hz–500 Hz
Safety CSA C22.2 No. 1010.1:1992
EMC EN50082-1:1992, EN55022:1994 Class B
Power 9 V battery ANSI/NEDA 1604A or IEC 6LR61; two batteries in 718
Warranty 3 years

Current Measurement

Range 0 to 24 mA
Resolution 0.001 mA
Accuracy 0.015% Rdg + 2 LSD

Current Sourcing

Range 0 to 20 mA or 4 to 20 mA
Accuracy 0.015% Rdg + 2 LSD
Drive Capability 1200 Ω; 950 Ω at 20 mA in HART mode

Current Simulation

Range 0 to 20 mA or 4 to 20 mA
Accuracy 0.015% Rdg + 2 LSD
External Loop Voltage Requirement 12–30 V

Loop Power

While measuring mA 24 V

Voltage Measurement

Range 0 to 28 V DC
Resolution 1 mV
Accuracy 0.015% Rdg + 2 LSD

Environmental Specifications

Operating Temperature -10 °C to 55 °C
Storage Temperature -30 °C to 60 °C
Humidity 0–90% (0–35 °C); 0–70% (35–55 °C)
Temperature Coefficient ±0.005% of range/°C outside 18–28 °C

Safety Specifications

Safety CSA C22.2 No. 1010.1:1992
EMC EN50082-1:1992, EN55022:1994 Class B
Maximum Voltage 30 V

Mechanical & General Specifications

Size 152 x 70 x 41 mm
Weight 224 g (340 g with holster)
Batteries One 9V Alkaline
Warranty 3 years
Shock & Vibration MIL-T-28800 Class 2
Display current and % of span Yes
Auto step, auto ramp Yes
Span Check Yes

Tech Specs

Test Equipment General Attributes

Product Height 3.25 IN
Product Length 10.25 IN
Product Width 6.00 IN
Data Logging No
Calibration Included NIST Calibration
Country of Origin China
