Product Overview

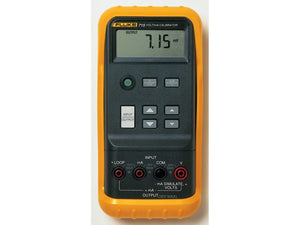

Fluke 715 Volt/mA Calibrator
Catalog: 620101 | UPC: 095969050692 | Model: Fluke 715
Fluke 715 Volt/mA Calibrator, .01% Accuracy
Features
- Measure loop current (0-20 mA, 4-20 mA) signals with very high accuracy of 0.015% and 1 mA resolution
- Measure voltage output process signals from PLCs, transmitters
- Source or simulate 24 mA loop current
- Source voltage to 100 mV or 10V
- 24V loop supply with simultaneous current measurement
- Enhanced voltage and current measure and source accuracy
- Selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional test
- 24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM
- Improved battery life
- 250 ohm HART resistor with loop power
- Holster features test lead storage
- Compatible with toolpack magnetic hanging system
- Step and linear ramp output function
- Configurable zero and span settings
Description
Volt/mA Calibrator
The Fluke 715 Volt/ mA Calibrator delivers outstanding performance, durability, and reliability. Offered in the rugged Fluke 80 Series DMM package, the calibrator is compact, lightweight, and easy to carry. With a push-button interface similar to the multifunction Fluke 740 Series Documenting Process Calibrators, the 715 is easy to use. It is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes.
In The Box
- Protective Yellow Holster with Test Lead Storage
- Instructions Sheet (14 languages)
- Single 9V alkaline battery
- Test Leads and Alligator Clips
- NIST-traceable calibration report and data
Specifications
Functional Specifications
| Measure / Source mV | Range: 0 to 200 mV, Resolution: 0.01 mV, Accuracy: 0.015% + 2 counts |
| Measure / Source V | Range: 0 to 20 V, Resolution: 0.001 V, Accuracy: 0.01% + 2 counts |
| Measure / Source/ Simulate mA (% of span) | Range: 0 to 24 mA (-25% to 125%), Resolution: 0.001 mA, Accuracy: 0.01% + 2 counts |
| Note: Sink (simulate transmitter) | Display mA or % of span |
Loop Power
| Range | 24 V dc |
| Accuracy | +/- 10% |
| Note | Drive; 20 mA into 1000 Ω for battery >6.8V; 700 Ω for battery 5.8 to 6.8 V |
Display
| Display | Clear 5 digit LCD |
Environmental Specifications
- Operating Temperature: -10ºC to 55ºC
- Storage Temperature: -40ºC to 60ºC
- Humidity (Without Condensation): 95% (10 ºC to 30 ºC), 75% (30 ºC to 40 ºC), 45% (40 ºC to 50 ºC), 35% (50 ºC to 55 ºC)
- Operating Altitude: 3,000m max
Safety Specifications
- Safety: CSA C22.2 No. 1010.1:1992
Mechanical & General Specifications
- Size: 187 mm L x 87mm W x 32 mm (7.93 in. L x 3.86 in. W x 2.06 in D)
- Weight: Approx. 330 g (21 oz)
- Batteries: One 9V battery Alkaline
- Warranty: Three years
- Shock & Vibration: Random, 2G, 5-500 Hz, 1m drop test
- Battery type: Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
Tech Specs
Process / Calibration/Milliamp Calibrators Template
| Current Measurement Max | 24 mA |
| Source/Simulate DC Current | Yes |
| Measure DC Current | Yes |
| Two Wire Transmitter Simulation | Yes |
| Percent Display | Yes |
| Simulate Loop Voltage | Yes |
| Backlight | No |
| Ramp/Step Output | Yes |
| FieldBus Compatible | No |
Process / Calibration/Signal Calibrators/Loop Calibrators Template
| Intrinsically Safe | No |
Test Equipment General Attributes
| Product Height | 2.50 IN |
| Product Length | 9.60 IN |
| Product Width | 7.20 IN |
| Data Logging | No |
| Calibration Included | NIST Calibration |
| Country of Origin | China |
