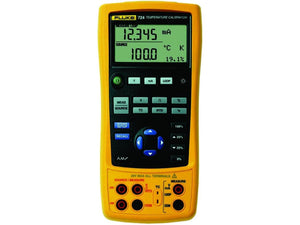

Fluke 724 Temperature Calibrator
Catalog: 1553041 | UPC: 095969083355 | Model: Fluke 724
Key Features
- Easy to read dual display lets you view input and output simultaneously
- Measure RTDs, thermocouples, ohms, and volts to test sensors and transmitters
- Source/simulate thermocouples, RTDs, volts, and ohms to calibrate transmitters
- Perform fast linearity tests with 25% and 100% steps
- Execute remote tests with auto step and auto ramp
- Power transmitters during test using loop power supply with simultaneous mA measurement
- Store frequently-used test setups for later use
- Compact, streamlined shape makes it easy to carry
- Rugged, reliable design stands up to field use
- Backlight lets you work in poor light
- Large battery capacity of four AA cells with easy-change door
List Price: $3,503.99
Your Price: $3,468.95
Sign-in for EDU Pricing!
In Stock: 3
Free shipping over $99 - Code: FREESHIP
Fluke 724 Accessories
- Alligator Clips
- Banana Type Test Leads
- Cases
- DMM Probe Kits
- DMM Probes with Leads
- Hook Test Leads
- Pincer Clips
- Temperature Probes
Top 20 Best Sellers
| Product | Catalog | Stock | Price |
|---|---|---|---|
| Fluke AC220 SureGrip Alligator Clips | 1610103 | 25 In Stock | $59.53 |
| Fluke AC285 SureGrip Large Alligator Clip | 1610159 | 111 In Stock | $40.82 |
Description
The new Fluke 724 Temperature Calibrator is a powerful yet easy-to-use calibrator. Use the measure and source functions to test and calibrate almost any temperature instrument.
Built for the masters of temperature: The Fluke 724 can measure and source 10 thermocouple types and 7 RTD types, plus volts and ohms. It handles high-speed pulsed RTD circuits, provides loop power, and features a dual line display. Simple, “no menus” controls make it easy to operate.
In The Box
- AC70A Test Clips
- One pair of stackable test leads
- TL75 Test Leads
- CE and CSA Markings
- Manuals in 10 languages
- User manuals on CD-ROM
- NIST-traceable calibration report and data
Manuals & Guides
- User Manual
- Supplement User Manual
- Calibration Manual
- Supplement Calibration Manual
- Data Sheet
- Selection Guide
- Safety Sheet
Manufacturer Specifications
Measurement Accuracy
| Voltage DC | 30.000 V 0.02%+2 counts (upper display) 20.000 V 0.02%+2 counts (lower display) 100.00 mV 0.02%+2 counts -10.00 mV to 75.00 mV 0.025% + 1 count (via TC connector) |
| Current DC | 24.000 mA 0.02%+2 counts |
| Resistance | 0.0–400.0 Ω: 0.1Ω (4-wire), 0.15Ω (2- & 3-wire) 401–1500 Ω: 0.5Ω (4-wire), 1Ω (2- & 3-wire) 1500–3200 Ω: 1Ω (4-wire), 1.5Ω (2- & 3-wire) |
Source Accuracy
| Voltage DC | 100.00 mV 0.02%+2 counts 10.000 V 0.02%+2 counts -10.00 mV to 75.00 mV 0.025% + 1 count (via TC connector) |
| Resistance | 15–400 Ω: 0.15Ω (excitation current 0.15–0.5 mA), 0.1Ω (0.5–2 mA) 401–1500 Ω: 0.5Ω (0.05–0.8 mA) 1500–3200 Ω: 1Ω (0.05–0.4 mA) |
RTDs & Thermocouples
Measure Accuracy: NI-120, PT-100 (385), PT-100 (393), PT-100 (JIS), PT-200 (385), PT-500 (385), PT-1000 (385)
Resolution: J, K, T, E, L, N, U: 0.1 °C / 0.1 °F
B, R, S: 1 °C / 1 °F
Examples:
J: 0.2 °C
K: 0.3 °C
T: 0.3 °C
R: 1.8 °C
S: 1.5 °C
B: 1.4 °C
Source Accuracy: NI-120, PT-100 (385), PT-200 (385), PT-500 (385), PT-1000 (385)
Examples:
J: 0.2 °C
K: 0.3 °C
T: 0.3 °C
R: 1.8 °C
S: 1.5 °C
B: 1.4 °C
Note: Accuracy stated for 4-wire measurement.
Specifications
- Ramp Functions: Voltage, current, resistance, frequency, temperature; Slow ramp, Fast ramp, 25% step ramp
- Loop Power: 24 V, ±10%, max 22 mA (short-circuit protected)
- Step Functions: 25% and 100% range steps
Environmental Specifications
- Operating Temperature: -10 °C to 55 °C
- Storage Temperature: -20 °C to 71 °C
- Humidity: 90% (10–30 °C), 75% (30–40 °C), 45% (40–50 °C), 35% (50–55 °C)
Safety Specifications
- Safety Rating: CSA C22.2 No. 1010.1:1992
- EMC: EN50082-1:1992, EN55022:1994 Class B
Mechanical & General
- Size: 96 × 200 × 47 mm
- Weight: 650 g
- Batteries: 4 × AA alkaline
- Battery Life: 25 hrs typical
- Shock & Vibration: Random, 2G, 5–500 Hz
- Warranty: 3 Years
Test Equipment General Attributes
| Unique Features | Dual display for simultaneous sourcing and measuring; simulate thermocouples, RTDs, volts, and ohms; auto step and auto ramp |
| Warranty | 3 Years |
| Safety Approval | CSA |
| Weight | 1.433 lbs |
| Dimensions | 7.87 × 3.77 × 1.85 in |
| Data Logging | No |
| HTS/Schedule B | 9030.39.0100 |
| ECCN | EAR99 |
| Calibration | NIST Calibration Included |
| Power Supply | Battery Powered |
| Country of Origin | Malaysia |
