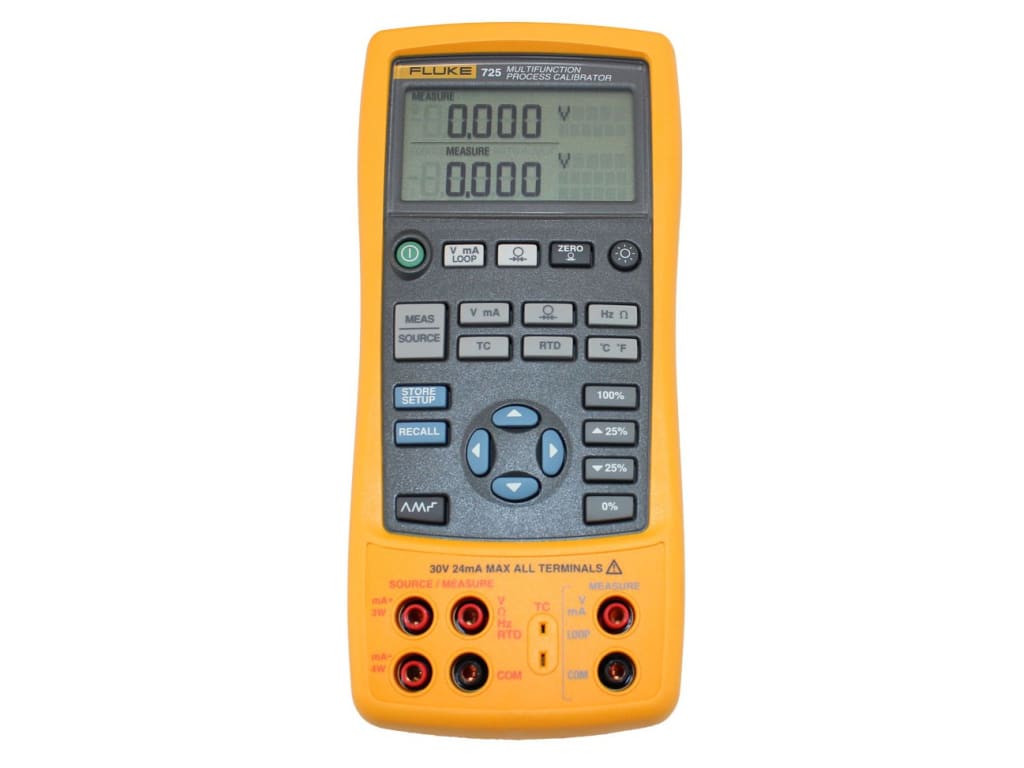

Fluke 725 US Multifunction Process Calibrator

Catalog: 664133 | UPC: 095969063500 | Model: Fluke 725 US

Key Features

  • Small, streamlined shape makes it easy to carry
  • Rugged, reliable design stands up to field use
  • Easy to read measure/source screen lets you view input and output simultaneously
  • Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors and transmitters
  • Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
  • Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
  • Source mA with simultaneous pressure measurement to conduct valve and I/P tests
  • Support flow meter testing with frequency and CPM functions
  • Perform fast linearity tests with auto-step and auto-ramp features
  • Power transmitters during test using loop supply with simultaneous mA measurement
  • Handles fast pulsed RTD transmitters and PLCs, with pulses as short as 10 ms
  • Store frequently used test setups for later use
  • Backlight lets you work in poor light
  • Large battery capacity of four AA cells with easy battery door access

Fluke 725 US Accessories

  • Alligator Clips
  • Banana Type Test Leads
  • Calibration Pumps
  • Cases
  • Current Clamp Adaptors / Current Clamps
  • DMM Probe Kits
  • DMM Probes with Leads
  • Hook Test Leads
  • Pincer Test Leads
  • Pressure Calibrator Modules
  • Probe Bodies
  • Telecom Test Leads
  • Temperature Probes

Description

Fluke 725 Multifunction Process Calibrator is “Simply Powerful!”

Don't carry and spend money on a loop calibrator, thermocouple calibrator, RTD calibrator, frequency calibrator, and pressure calibrator separately — the Fluke 725 Multifunction Calibrator handles them all. Measure and source mA, volts, RTDs, thermocouples, frequency, ohms, and pressure with optional pressure modules.

The split screen display lets you view input and output values simultaneously. Auto-stepping, auto-ramping, and 25% stepping provide fast linearity testing. Its simple, menu-free controls, memory functions, and rugged design make it ready to perform from the moment you pick it up.

Manufacturer Specifications

Measurement Accuracy

Voltage DC 30.000 V 0.02%+2 counts (upper)
30.000 V 0.02%+2 counts (lower)
100.00 mV 0.02%+2 counts
-10.00 mV to 75.00 mV 0.025% + 1 count
Current DC 24.000 mA 0.02%+2 counts
Resistance 0–400 Ω: 0.1Ω (4-wire), 0.15Ω (2- & 3-wire)
401–1500 Ω: 0.5Ω (4-wire), 1Ω (2- & 3-wire)
1500–3200 Ω: 1Ω (4-wire), 1.5Ω (2- & 3-wire)
Frequency 2–1000 CPM: 0.05%+1
1–1100 Hz: 0.05%+1
1–10 kHz: 0.05%+1
Sensitivity: 1 V p-p min
Pressure Accuracy to 0.025% of range (with Fluke 700Pxx modules)

Source Accuracy

Voltage DC 100.00 mV 0.02%+2
10.000 V 0.02%+2
-10.00 mV to 75.00 mV 0.025%+1
Current DC 24.000 mA (Source) 0.02%+2
24.000 mA (Simulate) 0.02%+2
Resistance 15–400 Ω: 0.15Ω (0.15–0.5 mA), 0.1Ω (0.5–2 mA)
401–1500 Ω: 0.5Ω (0.05–0.8 mA)
1500–3200 Ω: 1Ω (0.05–0.4 mA)
Frequency 2–1000 CPM: 0.05%
1–1100 Hz: 0.05%
1–10 kHz: 0.25%
Waveform: 5 V p-p squarewave

RTDs & Thermocouples

Measure Accuracy: NI-120, PT-100 (385/393/JIS), PT-200/500/1000 (385)

Resolution: J, K, T, E, L, N, U: 0.1 °C / 0.1 °F
B, R, S: 1 °C / 1 °F

Examples: J: 0.2 °C | K: 0.3 °C | R: 1.8 °C | S: 1.5 °C | B: 1.4 °C

Source Accuracy: NI-120, PT-100 (385), PT-200, PT-500, PT-1000

Note: Accuracy stated for 4-wire measurement.

Specifications

  • Ramp Functions: Voltage, current, resistance, frequency, temperature; Slow ramp, Fast ramp, 25% step ramp
  • Loop Power: 24 V, ±10%, max 22 mA (short-circuit protected)
  • Step Functions: 25% and 100% range steps

Environmental Specifications

  • Operating Temperature: -10 °C to +55 °C
  • Storage Temperature: -20 °C to 71 °C
  • Operating Altitude: 3000 m

Safety Specifications

  • Agency Approvals: EN 61010-1:1993, ANSI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1:1992

Mechanical & General

  • Size: 130 × 236 × 61 mm
  • Weight: 0.65 kg
  • Batteries: 4 × AA alkaline
  • Battery Replacement: Separate compartment, accessible without breaking calibration seal
  • Side Port: Pressure module connector / remote programming

Tech Specs

Type Hand Held
Measure Voltage Yes
Loop Voltage Min 0.01 mV (0.00001 V)
Simulate Loop Voltage Yes
Loop Voltage Max 24 V
Voltage Measurement Max 30 V
Voltage Measurement Min 0.01 mV (0.00001 V)
Source/Simulate DC Current Yes
Measure DC Current Yes
Current Measurement Max 24 mA
Current Measurement Min 0.001 mA
Source/Simulate Resistance Yes
Measure Resistance Yes
Resistance Measurement Max 3.2 KΩ
Resistance Measurement Min 15 Ω
Source/Simulate Frequency Yes
Measure Frequency Yes
Frequency Measurement Max 15 Hz
Frequency Measurement Min 1 Hz
Measure RTD Yes
Measure Thermocouples Yes
Source/Simulate Pressure No
Pressure Modules Available Yes
Hart Compatible No
FieldBus Compatible No
Backlighted Yes
Graphical Screen No
Types RTD/Thermocouples Accepted B, C, E, J, K, L, N, R, S, T, U
Intrinsically Safe No

Test Equipment General Attributes

Unique Features Memory storage for up to 8 calibration results; return stored calibration data for later analysis. Frequency totalizer and frequency pulse train source mode for enhanced flowmeter testing. Two separate channels to measure, source, and view signals simultaneously.
Warranty 3 Years
Safety Approval CSA
Product Weight 23 oz (1.44 lbs)
Product Height 1.9 in
Product Length 7.9 in
Product Width 3.8 in
Data Logging No
HTS/Schedule B Number 9030.39.0100
ECCN Number 3A992
Calibration Included NIST Calibration
Power Supply Voltage Battery Powered
Country of Origin Malaysia
