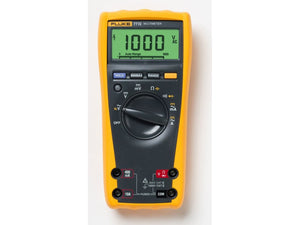

Fluke 77-4 Digital Multimeter
UPC: 095969365239 | Model: Fluke 77-4
Fluke 77-4 Digital Multimeter
Compare
INDUSTRIAL MULTIMETER, 1000V CAT III
- Large display
- Backlight for work in dim areas
- Min / Max to record signal fluctuations
- Ergonomic overmolded housing with integrated probe holders
- Optional Fluke TPAK Magnetic Hanger for hands-free operation
- Auto and Manual ranging
- Meets 1000 V CAT III and 600 V CAT IV safety standards
Description
Fluke 77-IV Digital Multimeter
The Fluke 77-IV is an affordable digital multimeter designed for industrial use, improving upon the original 70 Series with enhanced safety, functionality, and usability. It features a large backlit display with 6000 counts, ergonomic housing, and a long 400-hour battery life. Rated at 1000 V CAT III and 600 V CAT IV, it delivers reliable performance in demanding environments.
This multimeter offers accurate measurements for voltage, current, resistance, frequency, capacitance, and continuity, with 0.3% DC accuracy, Min/Max recording, and both auto/manual ranging. A dependable tool for technicians handling electrical and electronic troubleshooting.
Manufacturer Specifications
| Voltage DC | 6.000V – 1000V, Accuracy ±0.3% + 1, Resolution 0.1 mV |
|---|---|
| Voltage AC | 600.0 mV – 1000V, Accuracy ±2.0% + 2, Resolution 1.0 mV |
| Amps AC | 60.00 mA – 10A, Accuracy ±1.5% + 2, Resolution 0.01 mA |
| Amps DC | 60.00 mA – 10A, Accuracy ±2.5% + 2, Resolution 0.01 mA |
| Resistance | 600.0 Ω – 50 MΩ, Accuracy ±0.5% + 1, Resolution 0.1 Ω |
| Capacitance | 1 nF – 9,999 µF, Accuracy ±1.2% + 2, Resolution 1 nF |
| Frequency | 99.99 Hz – 99.99 kHz, Accuracy ±0.1% + 1, Resolution 0.01 Hz |
| Safety | ANSI/ISA S82.02.01, CSA C22.2-1010.1, IEC 61010; 1000 V CAT III, 600 V CAT IV |
| Certifications | CSA, TÜV (EN61010), UL, VDE |
| Max Voltage | 1000 V between any terminal and earth ground |
| Surge Protection | 8 kV peak per IEC 61010 |
| Fuse for mA inputs | 440 mA, 1000 V FAST Fuse |
| Fuse for A inputs | 11 A, 1000 V FAST Fuse |
| Display | 6000 counts, updates 4/sec; 33-segment bar graph, 32/sec |
| Altitude | Operating: 2000 m; Storage: 12,000 m |
| Operating Temperature | -10 °C to +50 °C |
| Storage Temperature | -40 °C to +60 °C |
| Relative Humidity | 90% (35 °C), 75% (40 °C), 45% (50 °C) |
| Battery Life | 400 hours typical (alkaline) |
| Size | H: 4.3 cm, W: 9 cm, L: 18.5 cm |
| Weight | 420 g |
Tech Specs
| Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | No |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 1 V (1000 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 V (1000 mV) |
| Maximum Current AC | 10 A |
| Minimum Current AC | 60 mA |
| Resolution AC Current | 0.01 A (10 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 60 mA |
| Resolution DC Current | 0.01 mA |
| Basic Accuracy V DC | 0.3% + 1 |
| # Digit Display | 3.75 |
| Counts | 6000 |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Diode Testing | Yes |
| CAT Rating | CAT IV |
| CAT Voltage | 1000 V, 600 V |
| Overload Protector | Yes |
| Data Hold | Yes |
Test Equipment General Attributes
| Unique Features | Large display, backlight, Min/Max, ergonomic housing, probe holders, optional TPAK magnetic hanger, auto/manual ranging, CAT III 1000V / CAT IV 600V safety standards |
|---|---|
| Safety Approval | CSA, UL |
| Product Weight | 0.93 LBS |
| Product Height | 1.69 IN |
| Product Length | 7.28 IN |
| Product Width | 3.54 IN |
| Battery Type | 9V |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| UPC | 095969365239 |
