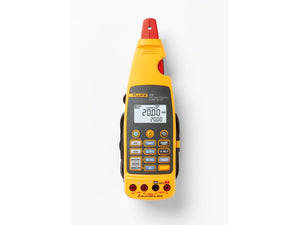

Fluke 773 Milliamp Process Clamp Meter with Loop Power, 4-20 mA and DC Volts Source/Measure
UPC: 095969475822 | Model: Fluke 773
Fluke 773
Compare
MILLIAMP PROCESS CLAMP METER
- Best in class 0.2% accuracy
- 0.01 mA resolution and sensitivity
- Measure 4 to 20 mA signals without “breaking the loop”
- Measure mA signals for PLC and control system analog I/O
- Dual backlit display with both mA measurement and percent of 4 to 20 mA span
- Measurement Spotlight illuminates hard-to-see wires in dark enclosures

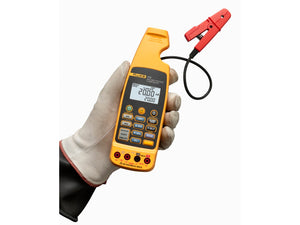

- Detachable clamp with extension cable for measurements in tight locations
- Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
- Automatically change the 4 to 20 mA output for remote testing
- Power-saving features (auto-off, backlight timeout) extend battery life
- Hold function captures and displays changing measurements
- Measure 4 to 20 mA signals with in-circuit measurement
- Simultaneous mA in-circuit measurement with 24V loop power for powering
Description
Fluke 773 Milliamp Process Clamp Meter
Measures mA signals for control systems, PLC systems, analog input/output without breaking the loop! Measure transmitter output signals without breaking the loop. Includes a detachable clamp — ideal for tight locations.
Manufacturer Specifications
| Diameter of measurable conductor | 0.177 in (4.5 mm) max |
|---|---|
| Operating temperature | −10 to 50 °C |
| Storage temperature | −25 to 60 °C |
| Operating humidity | < 90% @ < 30 °C, < 75% @ 30 to 55 °C |
| Operating altitude | 0 to 2000 m |
| IP rating | IP40 |
| Size (H×W×L) | 44 × 70 × 246 mm (2 7/8 × 5 3/4 × 11 5/8 in) |
| Weight | 410 g (14.4 oz) |
| Vibration | Random 2 g, 5 to 500 Hz |
| Shock | 1 m drop test (except the jaw) |
| EMI/RFI | Meets EN61326-1 |
| Temperature coefficient | 0.01%/°C (< 18 °C or > 28 °C) |
| Power / battery life | (4) AA 1.5 V alkaline (IEC LR6); ~12 hrs in mA source into 500 Ω |
| Warranty | Three years (electronics); One year (cable & clamp assembly) |
Tech Specs
| Clamp Meters / Clamp Meters Template | |
|---|---|
| True RMS | No |
| Maximum Current DC | 100 mA (0.1 A) |
| Maximum Voltage DC | 30 V |
| Maximum Conductor Size | 0.177 in |
| Resistance | No |
| Capacitance | No |
| Auto Ranging / Manual | Manual |
| In-Rush Current | No |
| Process / Calibration / Signal Calibrators / Loop Calibrators Template | |
| Measure Inputs | Yes |
| Source Outputs | Yes |
| Maximum Current | 99.9 mA (0.100 A) |
| Current Measurement Resolution | 0.01 mA |
| Current Accuracy | 0.2% |
| Maximum Voltage | 30 V |
| HART Compatible | No |
| Battery Life | 12 hr |
| Intrinsically Safe | No |
| Process / Calibration / Milliamp Calibrators Template | |
| Source / Simulate DC Current | Yes |
| Measure DC Current | Yes |
| Two-Wire Transmitter Simulation | Yes |
| Percent Display | Yes |
| Accuracy | 0–20.99 mA: 0.2% + 2 counts; 21.0–100.0 mA: 1% + 5 counts |
| Simulate Loop Voltage | Yes |
| Backlight | Yes |
| Ramp / Step Output | Yes |
| FieldBus Compatible | No |
Test Equipment General Attributes
| Unique Features | DC voltage measurement to verify 24 V power supplies or voltage I/O signals. Source DC voltage to test input devices that accept a 1–5 V or 0–10 V signal. mA in/out: simultaneously measure the mA signal with the clamp and source a mA signal — apply a mA input to a device and measure its 4–20 mA output on devices such as valves or mA isolators. |
|---|---|
| Warranty | 3 years |
| Warranty Details | One-year on mA clamp assembly and cable. |
| IP Rating | IP40 |
| Product Weight | 2.38 ounces (0.149 lbs) |
| Product Height | 2.76 in |
| Product Length | 12.52 in |
| Product Width | 5.87 in |
| Data Logging | No |
| Calibration Included | None |
| CA Residents | Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| UPC | 095969475822 |
