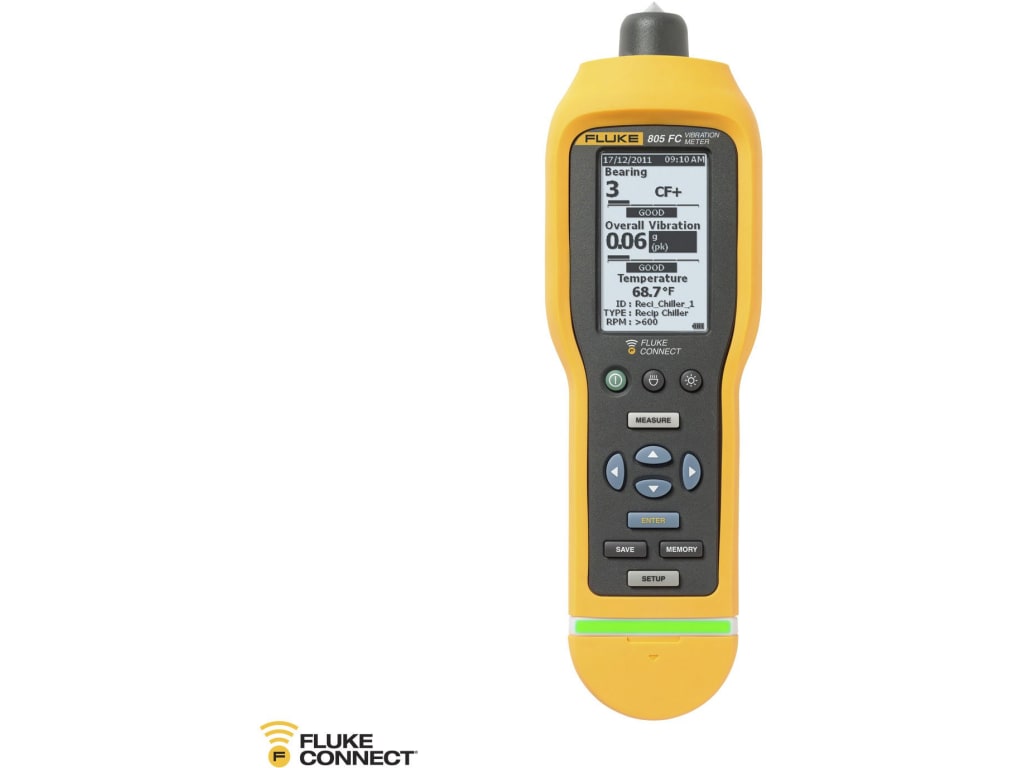

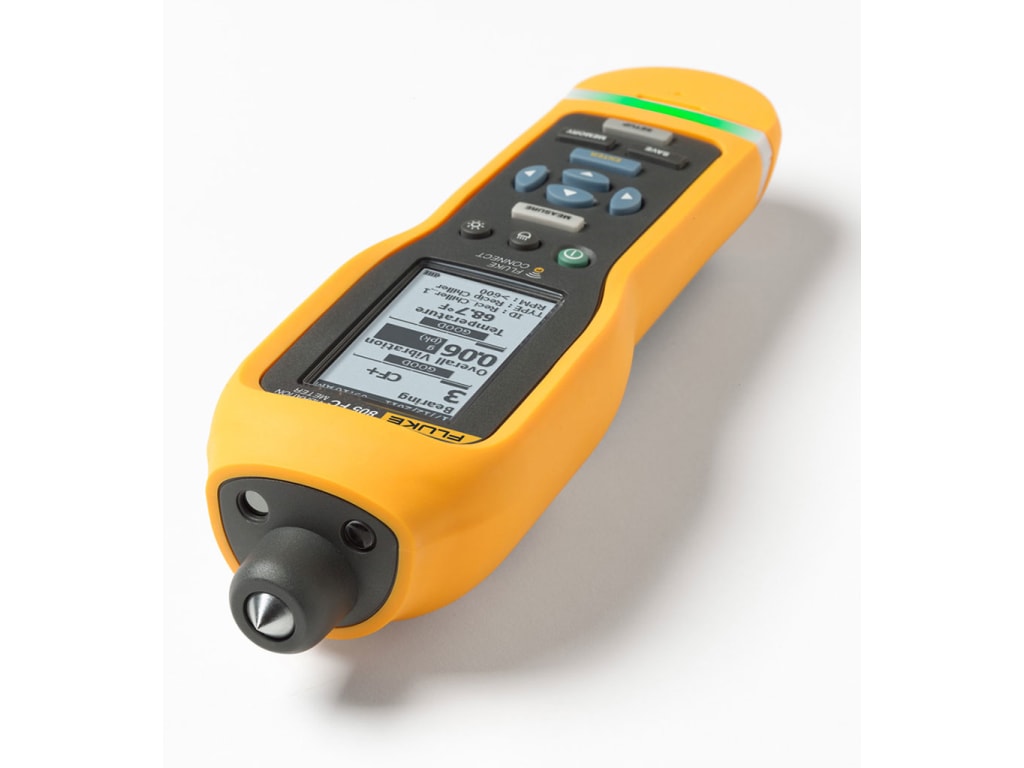

Fluke 805 FC Fluke Connect Vibration Meter
Catalog: 4489229 | UPC: 095969726863 | Model: Fluke 805 FC
Fluke 805 FC
Compare
VIBRATION METER WITH FLUKE CONNECT COMPATIBILITY
- Innovative sensor design minimizes measurement variations caused by device angle or contact pressure
- Consistent data quality at both low and high frequency ranges
- Four-level severity scale assesses urgency of problems for overall vibration and bearing condition
- Exportable data via USB
- Trending in Microsoft Excel using pre-built templates
- Overall vibration measurement (10 Hz to 1,000 Hz) for acceleration, velocity and displacement units
- Crest Factor+ technology provides reliable bearing assessment using direct sensor tip measurements (4,000 Hz to 20,000 Hz)
- Compare vibration levels with ISO-10816 severity scales and store results to Fluke Connect Cloud
- Share results instantly via Fluke Connect™ Share-Live video call*
- Colored lighting system and on-screen comments indicate correct pressure during measurement
- Temperature measurement with Spot IR Sensor increases diagnostic capabilities
- On-board memory holds up to 3,500 measurements
- External accelerometer support for hard-to-reach locations
- Flashlight for viewing measurement points in dark areas
- Large high-resolution screen for easy navigation and viewing
Description
Fluke 805 FC – Vibration Meter with Fluke Connect Compatibility
The Fluke 805 FC Vibration Meter is the most reliable frontline screening tool for vibration and bearing assessment. It provides repeatable, severity-scaled readings that allow maintenance teams to make confident go/no-go decisions. Innovative sensor design ensures consistency regardless of angle or contact pressure.
Crest Factor+ Technology: Fluke’s proprietary Crest Factor+ algorithm overcomes the limitations of traditional Crest Factor analysis by providing a linear, easy-to-interpret four-level severity scale (Good, Satisfactory, Unsatisfactory, Unacceptable).
Exporting and Trending: Results can be exported via USB to Excel using built-in templates, allowing trending of vibration, CF+, and temperature over time for clear insight into machine health.
Common Applications: Chillers, fans, cooling tower drives, centrifugal and positive displacement pumps, air compressors, blowers, gearboxes, and machine tools.
Manufacturer Specifications
| Vibration Meter | |
|---|---|
| Low Frequency Range (overall) | 10 Hz to 1,000 Hz |
| High Frequency Range (CF+) | 4,000 Hz to 20,000 Hz |
| Severity Levels | Good, Satisfactory, Unsatisfactory, Unacceptable |
| Vibration Limit | 50 g peak (100 g peak-peak) |
| A/D Converter | 16-bit |
| Signal to Noise Ratio | 80 dB |
| Sampling Rate – Low Frequency | 20,000 Hz |
| Sampling Rate – High Frequency | 80,000 Hz |
| Real Time Clock Backup | Coin battery |
| Sensor | |
| Sensitivity | 100 mV/g ± 10% |
| Measurement Range | 0.01 g to 50 g |
| Resolution | 0.01 g |
| Accuracy | ±5% of measured value at 100 Hz |
| Amplitude Units | Acceleration (g, m/s²); Velocity (in/sec, mm/sec); Displacement (mils, mm) |
| Infrared Thermometer | |
| Range | −20 °C to 200 °C (−4 °F to 392 °F) |
| Accuracy | ±2 °C (±4 °F) |
| Focal Length | Fixed ~3.8 cm (1.5″) |
| External Sensor | |
| Frequency Range | 10 Hz to 1,000 Hz |
| Bias Voltage | 20–22 V DC |
| Bias Current | Max 5 mA |
| Firmware / Interfaces | |
| Calibration | Factory calibration required |
| Interfaces | USB 2.0 (full speed) |
| Data Capacity | Internal flash memory (up to 3,500 measurements) |
| Upgrade | Through USB |
| Environmental | |
| Operating Temperature | −20 °C to 50 °C (−4 °F to 122 °F) |
| Storage Temperature | −30 °C to 80 °C (−22 °F to 176 °F) |
| Operating Humidity | 10% to 95% RH (non-condensing) |
| Operating/Storage Altitude | Sea level to 3,048 m (10,000 ft) |
| IP Rating | IP54 |
| Vibration Limit | 500 g peak |
| Drop Test | 1 m |
| General | |
| Battery Type | AA (2) Lithium Iron Disulfide |
| Battery Life | 250 measurements |
| Size (L × W × H) | 25.72 × 16.19 × 9.84 cm (10.13 × 6.38 × 3.875 in) |
| Weight | 1.16 kg (2.55 lb) |
| Connectors | USB mini-B 7-pin, external sensor jack (SMB) |
| Fluke Connect Mobile App Compatible | Yes |
Tech Specs
| Reliability / Preventative Maintenance / Rotational / Vibration Meter Template | |
|---|---|
| Frequency Range | 20,000 Hz |
| Single Axis Measurement | Yes |
| Tri-Axial Measurement | No |
| Tachometer Capability | No |
Test Equipment General Attributes
| Unique Features | Fluke Connect system capable. Innovative sensor design minimizes measurement variations. Four-level severity scale for overall vibration and bearing condition. Exportable data via USB. Trending in Excel with built-in templates. Overall vibration measurement (10 Hz to 1,000 Hz). |
|---|---|
| Warranty | 1 year |
| Interfaces I/O | USB |
| Product Weight | 0.89 lbs |
| Product Height | 9.5 in |
| Product Length | 2.8 in |
| Product Width | 2.3 in |
| Data Logging | Yes |
| HTS/Schedule B Number | 9027.89.8090 |
| ECCN Number | EAR99 |
| CA Residents | Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| UPC | 095969726863 |
