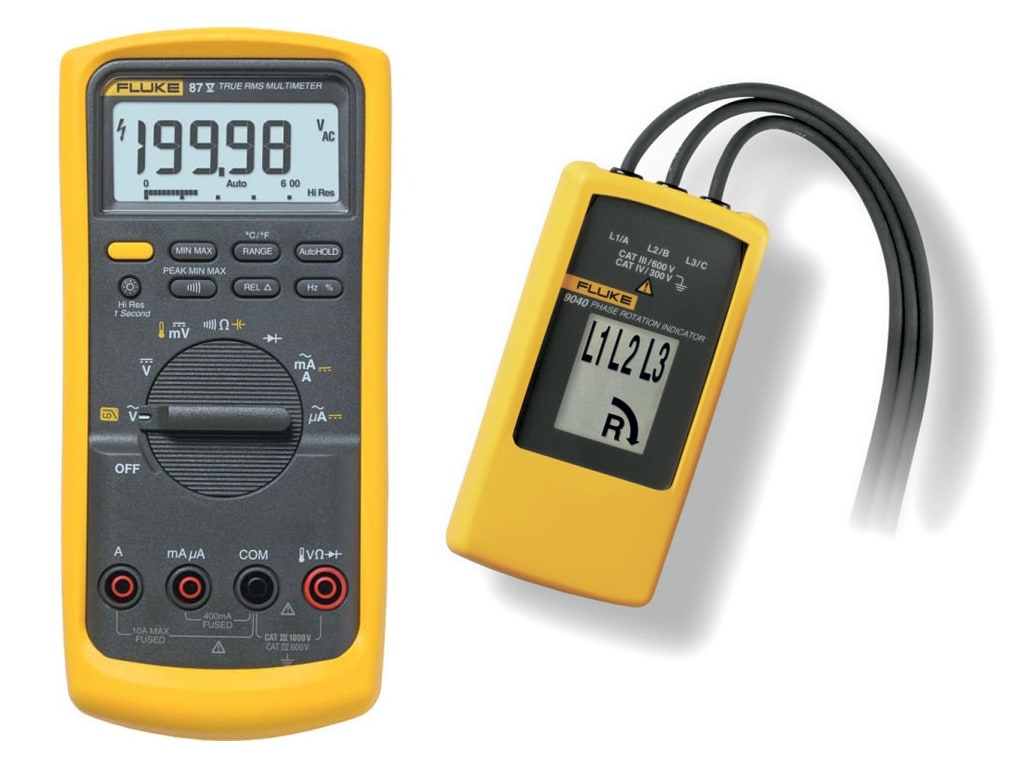

Fluke 87-5 Kit 1 - Digital Multimeter (87-V) and 9040 Phase Rotation Indicator Meter
Model: Fluke 87-5 Kit 1
Fluke 87-5 Kit 1
Compare
DIGITAL MULTIMETER (87-V) + PHASE ROTATION INDICATOR
- Package includes Fluke 87-5 Digital Multimeter (87-V) and 9040 Phase Rotation Indicator Meter
- Optional magnetic hanger for easy setup and hands-free viewing
- Large display digits and dual-level bright white backlight for increased visibility
- Withstands hazardous 8,000 V spikes caused by load switching and faults
- Complies with ANSI and IEC electrical safety standards
- Improved sleep mode for extended battery life
- Relative mode removes test lead resistance from low-ohm measurements
- Fluke 9040 Phase rotation meter with 3-phase indication and clear LCD display
- No battery required for Fluke 9040 operation
Description
Fluke 87-5 Kit 1

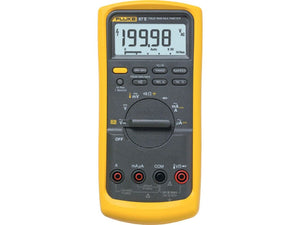

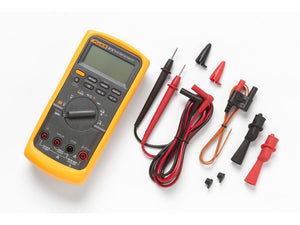

This kit combines the versatile Fluke 87V Industrial Multimeter with the Fluke 9040 Phase Rotation Indicator Meter, providing technicians with essential tools for electrical troubleshooting and phase detection.
The 87V features improved measurement functions, resolution, and accuracy for solving complex problems in motor drives, automation, power distribution, and electromechanical equipment. It withstands impulses over 8,000 V and is rated CAT IV 600 V / CAT III 1000 V.
The Fluke 9040 measures phase rotation in three-phase systems, offering rapid determination of sequence and correct connections with a clear LCD display. It operates without batteries and supports up to 700 V input, making it ideal for industrial applications.
Tech Specs
| Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 0.1 mV |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 0.1 mV |
| Maximum Current AC | 10 A |
| Minimum Current AC | 0.1 µA |
| Resolution AC Current | 0.1 µA |
| Maximum Current DC | 10 A |
| Minimum Current DC | 0.1 µA |
| Resolution DC Current | 0.1 µA |
| Basic Accuracy V DC | ± (0.05% + 1) |
| # Digit Display | 4.5 |
| Counts | 6000 |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1000 V, 600 V |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
| Duty Cycle % | 0.0 – 99.9% (±0.2%/kHz + 0.1%) |
| Phase / Motor / Transformer Testing – Phase and Rotation Meters Template | |
|---|---|
| Max Frequency Range | 400 MHz |
| Phases | Single-phase, Three-phase |
| Rotation Direction | Yes |
| Measure Voltage | No |
| Max Voltage | 700 V |
| Type (Phasing Sequence) | Portable |
Test Equipment General Attributes
| Unique Features | Accurate VFD voltage and frequency measurement with selectable low-pass filter. Built-in thermometer. Optional magnetic hanger for hands-free operation. Large dual-level backlit display. True-RMS AC/DC measurement for non-linear signals. Peak capture (250 µs). Touch Hold and relative mode for stable, accurate readings. |
|---|---|
| Additional Info | 10,000 µF capacitance range; Min/Max/Avg recording with alerts; Input Alert safety warning; removable holster with probe storage; improved sleep mode for long battery life. |
| Warranty | Lifetime (multimeter) / Standard (accessories) |
| Safety Approval | CE, CSA, UL |
| Interfaces I/O | Analog Input |
| IP Rating | IP40 |
| Data Logging | No |
| Calibration Included | Factory Calibration |
| Battery Type | 9V |
| Power Supply Voltage | Battery Powered |
