Fluke 88-5/A KIT - Automotive Multimeter Combo Kit
Catalog: 2117440 | UPC: 095969249072 | Model: Fluke 88-5/A KIT
Fluke 88-V/A KIT
Compare
AUTOMOTIVE METER COMBO KIT

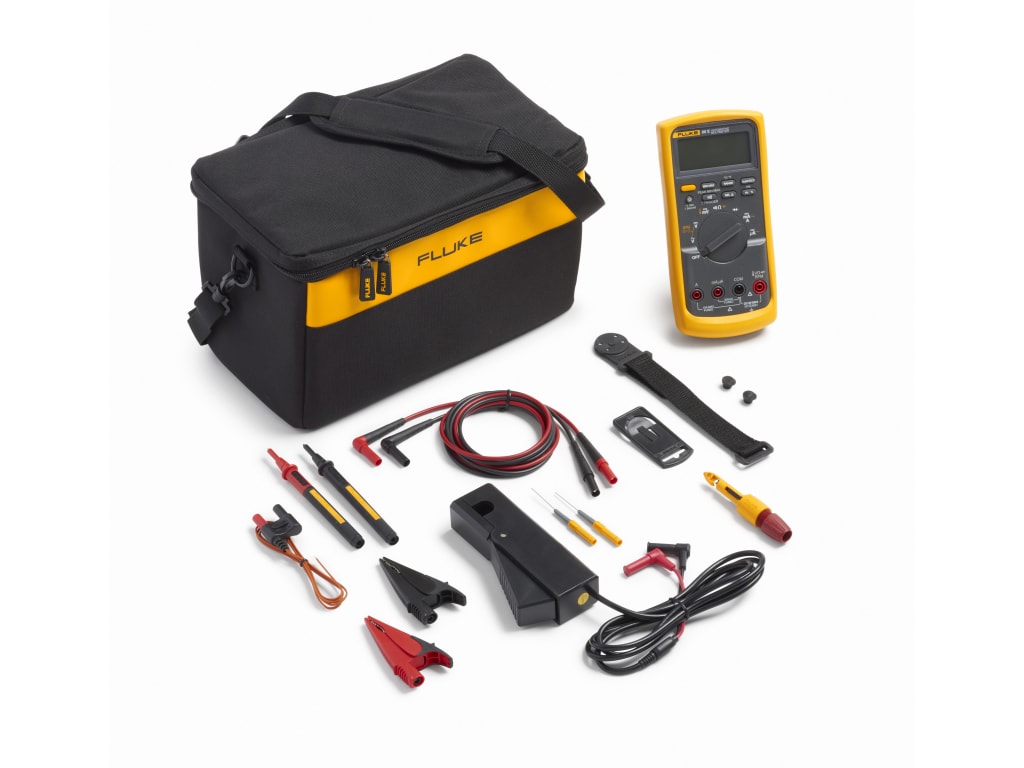

- Package with Fluke 88-5 multimeter and a variety of testing accessories
- Designed for the garage – the most powerful automotive multimeter from Fluke
- Functions and accuracy to solve problems on conventional and hybrid vehicles
- Pulse width function with millisecond resolution for fuel injector troubleshooting
- RPM measurements with inductive pickup
- Min/Max/Average recording with Min/Max Alert to capture variations automatically
- Peak Min/Max to record transients as fast as 250 µs
- Frequency measurement up to 200 kHz
- Standard multimeter functions: voltage, current, continuity, resistance
- Large dual-level backlit display for visibility in automotive environments
- Magnetic hanger for hands-free operation
Description
Fluke 88-5/A KIT – Automotive Multimeter Combo Kit

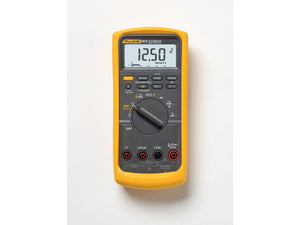

The Fluke 88V is Fluke’s most powerful automotive multimeter, designed for troubleshooting both conventional and hybrid vehicles. This kit includes the 88V plus essential automotive accessories such as an inductive RPM pickup, temperature probe, and hanging kit, making it ideal for professional garage environments.
Alongside standard multimeter functions (voltage, current, continuity, resistance), the 88V performs:
- Pulse width (ms resolution) for injector testing
- Duty cycle measurements
- RPM with inductive pickup
- Temperature measurements (with included probe)
- Peak Min/Max to capture 250 µs transients
Built for demanding conditions, it features a rugged design, bright dual-level backlight, analog bar graph, and Auto/Manual ranging. Supported by a limited lifetime warranty, it’s designed for high-energy environments including hybrid vehicle systems.
Manufacturer Specifications
| DC Voltage | |
|---|---|
| Maximum Voltage | 1000 V |
| Accuracy | ±(0.1% + 1) |
| Best Resolution | 0.01 mV |
| AC Voltage | |
| Maximum Voltage | 1000 V |
| Accuracy | ±(0.5% + 2) |
| AC Bandwidth | 5 kHz |
| Best Resolution | 0.01 mV |
| DC Current | |
| Maximum Amps | 10 A |
| Accuracy | ±(0.4% + 2) |
| Best Resolution | 0.001 mA |
| AC Current | |
| Maximum Amps | 10 A |
| Accuracy | ±(1.2% + 2) |
| Best Resolution | 0.001 mA |
| Resistance | |
| Maximum Resistance | 50 MΩ |
| Accuracy | ±(0.4% + 1) |
| Best Resolution | 0.1 Ω |
| Capacitance | |
| Maximum Capacitance | 9,999 µF |
| Accuracy | ±(1% + 2) |
| Best Resolution | 0.01 nF |
| Frequency | |
| Maximum Frequency | 200 kHz |
| Accuracy | ±(0.005% + 1) |
| Best Resolution | 0.01 Hz |
| Duty Cycle | |
| Maximum | 99.9% |
| Accuracy | ±(2%/kHz + 0.1%) |
| Best Resolution | 0.1% |
| Temperature | |
| Measurement Range | −200 °C to 1090 °C / −328 °F to 1994 °F (±1.0%, excl. probe) |
| Probe Range (80BK) | −40 °C to 260 °C / −40 °F to 500 °F (±2.2 °C or 2%) |
| Conductance | |
| Maximum | 60.00 nS |
| Accuracy | ±(1.0% + 10) |
| Resolution | 0.01 nS |
| Operating Range | |
| Operating Temperature | −20 °C to 55 °C |
| Storage Temperature | −40 °C to 60 °C |
| Physical | |
| Dimensions | 5.2 × 9.8 × 20.1 cm (2.06 × 3.86 × 7.93 in) |
| Weight | 624 g (22 oz) |
Tech Specs
| Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | No |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 1 V (1000 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 V (1000 mV) |
| Maximum Current AC | 10 A |
| Minimum Current AC | 60.00 mA |
| Resolution AC Current | 0.01 mA |
| Maximum Current DC | 10 A |
| Minimum Current DC | 60.00 mA |
| Resolution DC Current | 0.01 mA |
| Basic Accuracy V DC | ±(0.1% + 1) |
| # Digit Display | 4.5 |
| Counts | 19999 |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | CAT IV |
| CAT Voltage | 1000 V, 600 V |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Data Hold | Yes |
| Low-Pass Filter | No |
| Duty Cycle % | 0.0 – 99.9% (±2%/kHz + 0.1%) |
Test Equipment General Attributes
| Unique Features | 0.1% DC accuracy. Current up to 10 A (20 A for 30s). Millisecond pulse width for injectors. RPM measurement with inductive pickup. Min/Max/Avg with alerts. Peak Min/Max (250 µs). Relative mode. Auto/Manual ranging. AutoHold™. Magnetic hanger included. |
|---|---|
| Additional Info | Large dual-level backlit display. Analog bar graph. Input Alert safety warning. Fast battery access door. Rugged removable holster with probe storage. 10 MΩ input impedance protects circuits. Limited lifetime warranty. |
| Safety Approval | CSA, UL |
| Interfaces I/O | Analog Input, Analog Output |
| Product Weight | 0.78 lbs |
| Product Height | 1.25 in |
| Product Length | 7.35 in |
| Product Width | 3.41 in |
| Data Logging | No |
| ECCN Number | 3A992 |
| Calibration Included | None |
| Battery Type | 9V |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| UPC | 095969249072 |
