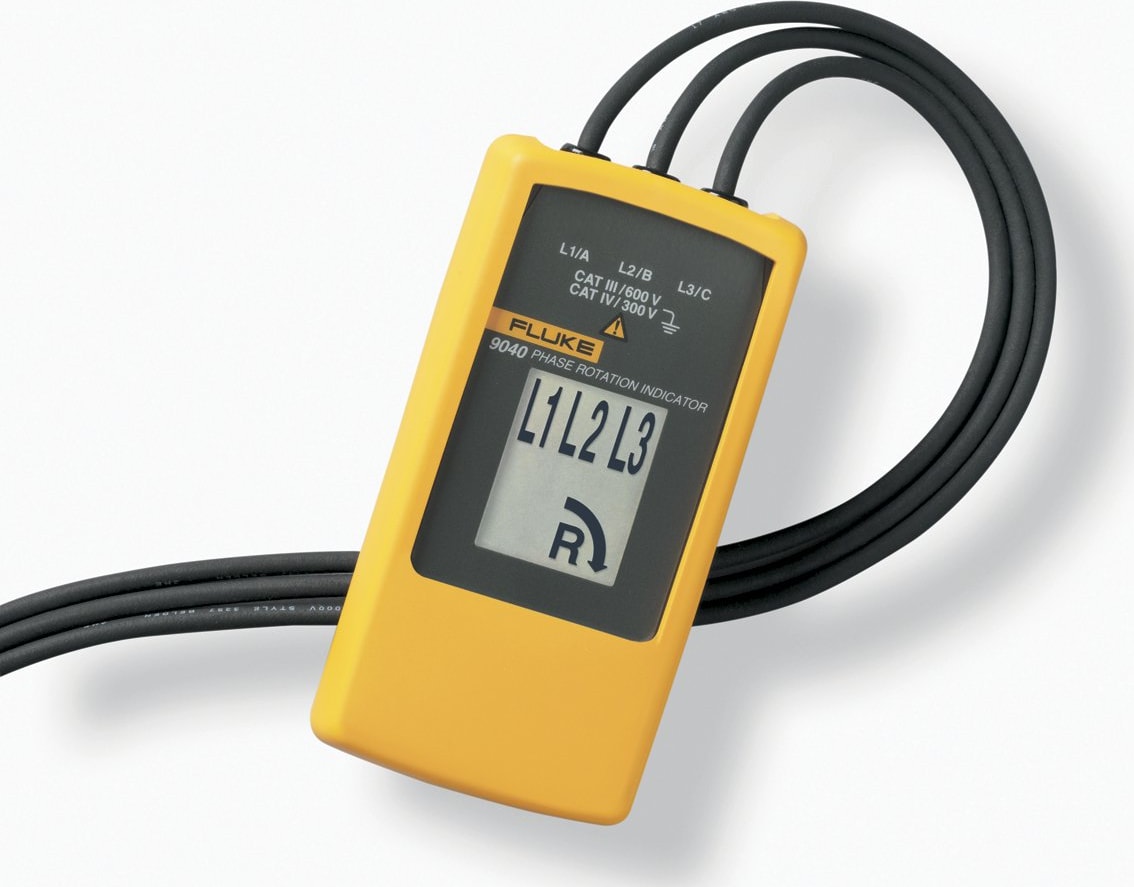

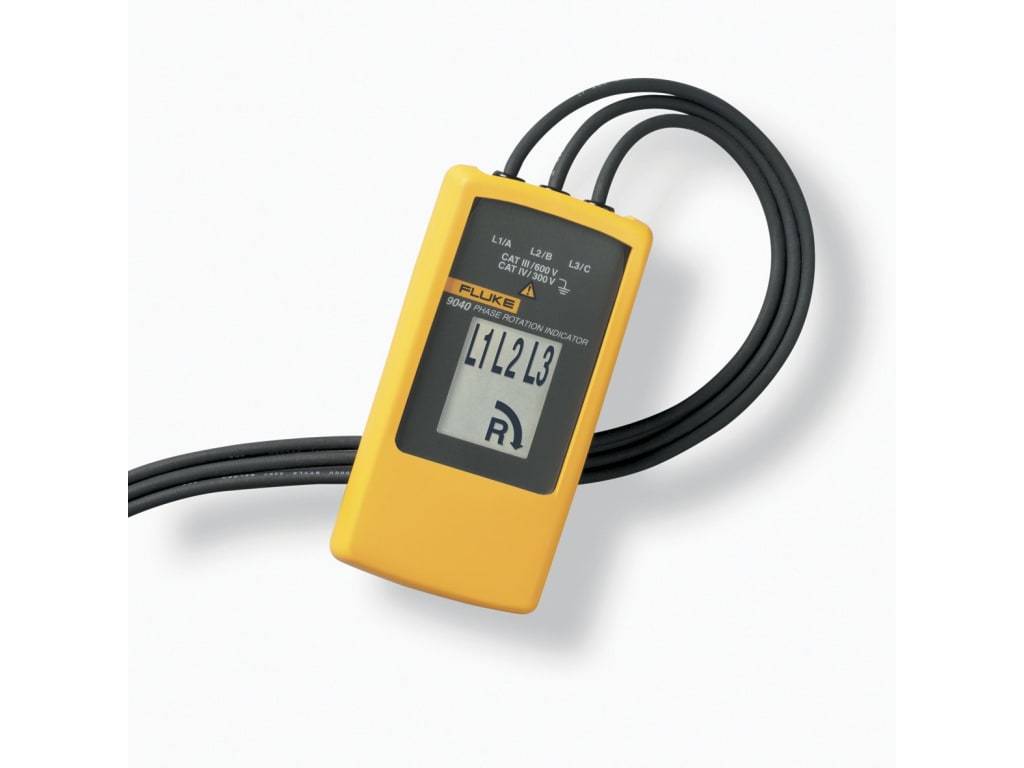

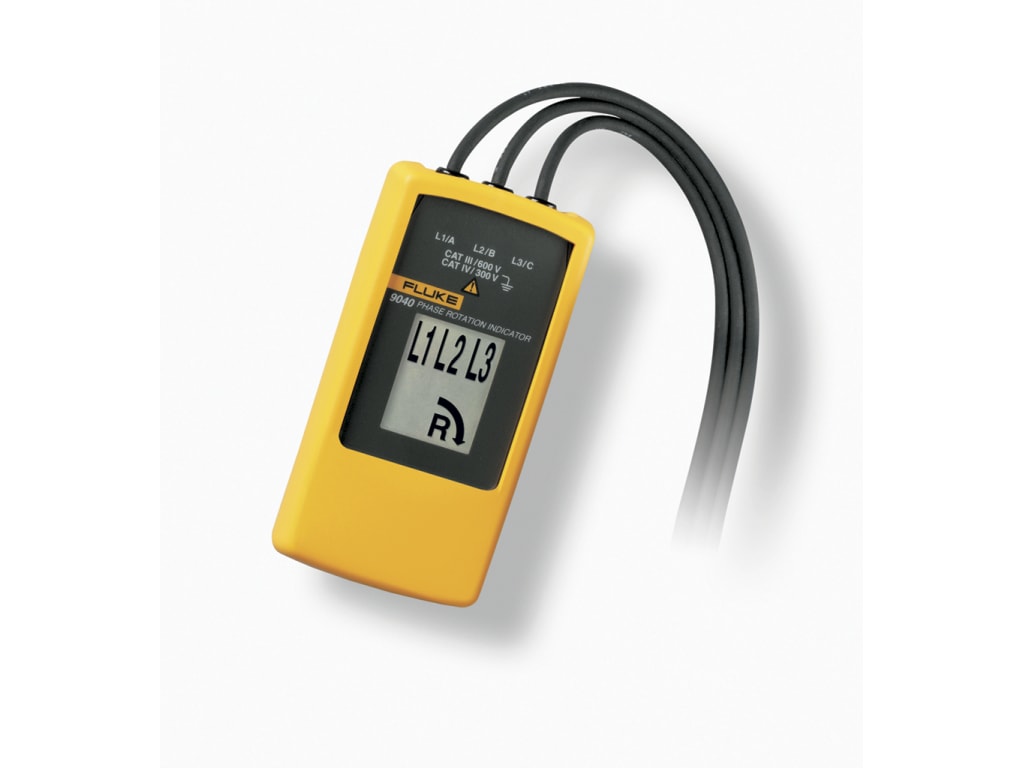

Fluke 9040 Phase Rotation Indicator Meter
Fluke 9040 Three-Phase Rotation Indicator
- 3 phase indication
- Indication of phase rotation
- Clear LCD display
- No battery required
- Lead Length: 34 inches
Description
Phase rotation indicator with high voltage capability for industrial applications.

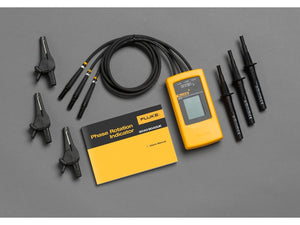

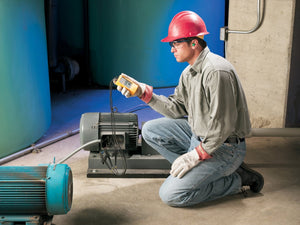

The Fluke 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. The Fluke 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets.
Manufacturer Specifications
| Technical Specifications | |
|---|---|
| Voltage Range | 40-700 V |
| Frequency Range | 15-400 Hz |
| Operating Timer | Continuous |
| Lead Length | 34 inches |
| Environmental Specifications | |
| Operating Temperature | 0°C to 40°C |
| Dust/Water Resistance | IP 40 |
| Safety Specifications | |
| Electrical Safety | EN 61010, EN 61557-7 |
| Overvoltage Category | CAT III 600 V, CAT IV 300 V |
| Mechanical & General Specifications | |
| Size | 124 x 61 x 27 mm |
| Weight | 200 g |
| Power Supply | From unit under test |
| Warranty | 2 years |
Tech Specs
| Category | Phase / Motor / Transformer Testing / Phase and Rotation Meters Template |
| Maximum Frequency Range | 400 MHz |
| Phases | Single phase, Three phase |
| Rotation Direction | Yes |
| Measure Voltage | No |
| Maximum Voltage | 700 V |
| Type (Phasing Sequence) | Portable |
Test Equipment General Attributes
| Unique Features | Easy to use. Powered by the device under test. |
| Warranty | 2 YEARS |
| Safety Approval | CE, CSA |
| IP Rating | IP40 |
| Product Height | 2.75 IN |
| Product Length | 10.25 IN |
| Product Width | 6.75 IN |
| HTS/Schedule B Number | 9030.89.0100 |
| ECCN Number | 3A992 |
| Calibration Included | None |
| Country of Origin | China |
| UPC | 095969291361 |
