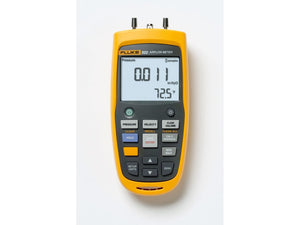

Fluke 922 Airflow Meter
Catalog: 2679822 | UPC: 095969355315 | Model: Fluke 922
Fluke 922
Compare
Fluke 922 Airflow Meter / Micromanometer
- Measures differential & static pressure, air velocity, and airflow
- Convenient color-coded hoses ensure proper pressure readings
- Bright backlit display for clear visibility in any environment
- User-defined duct shape and size for accurate airflow
- Resolution down to 0.001 in H2O
- Stores up to 99 data points
- Min/Max/Average/Hold functions for easy analysis
- Auto power-off to extend battery life
- Rugged design with holster and wrist strap
Description

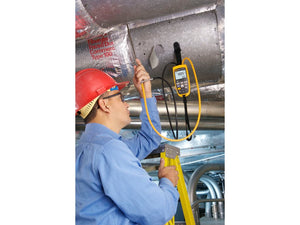

The Fluke 922 Airflow Meter is built for HVAC professionals who need a simple, rugged, and versatile solution for analyzing airflow. With integrated pressure, velocity, and airflow measurement functions, the 922 eliminates the need for multiple tools.
Its intuitive interface, color-coded hoses, and bright display make operation straightforward in the field, while data storage and analysis features improve efficiency.
Applications include:
- Monitoring air pressure across HVAC components
- Ensuring proper air flow balance
- Promoting indoor comfort and air quality
- Performing duct traversals for accurate airflow readings
- Matching ventilation to occupant load
Manufacturer Specifications
| Air Pressure | |
|---|---|
| Range / Resolution / Accuracy | ±4000 Pa / 1 Pa / ±1% + 1 Pa ±16 in H₂O / 0.001 in H₂O / ±1% + 0.01 in H₂O ±400 mm H₂O / 0.1 mm H₂O / ±1% + 0.1 mm H₂O ±40 mbar / 0.01 mbar / ±1% + 0.01 mbar ±0.6 PSI / 0.0001 PSI / ±1% + 0.0001 PSI |
| Air Velocity | |
| Range | 250 – 16,000 fpm / 1 – 80 m/s |
| Resolution | 1 fpm / 0.001 m/s |
| Accuracy | ±2.5% of reading at 2000 fpm (10 m/s) |
| Air Flow (Volume) | |
| Range | 0 – 99,999 cfm / 0 – 99,999 m³/hr / 0 – 99,999 l/s |
| Resolution | 1 cfm / 1 m³/hr / 1 l/s |
| Accuracy | Function of velocity and duct size |
| Temperature | |
| Range | 0 °C to 50 °C (32 °F to 122 °F) |
| Accuracy | ±1% + 2 °C / ±1% + 4 °F |
| Resolution | 0.1 °C / 0.1 °F |
| General Specifications | |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature | −40 °C to 60 °C (−40 °F to 140 °F) |
| Relative Humidity | 0% to 90% non-condensing |
| Operating Altitude | 2000 m |
| Storage Altitude | 12000 m |
| IP Rating | IP40 |
| EMI/RFI/EMC | EN61326-1 compliant |
| Vibration | MIL-PREF-28800F, Class 3 |
| Max Port Pressure | 10 PSI |
| Data Storage | 99 readings |
| Battery Life | 280 hrs (w/o backlight), 60 hrs (with backlight) |
| Power | 4 × AA batteries |
| Warranty | 2 years |
Tech Specs
| Anemometer Template | |
|---|---|
| Type | Pitot Tube |
| Measurement | ft/min, m/s |
| Air Velocity Max | 16000 ft/min |
| Air Velocity Min | 250 ft/min |
| Accuracy | ±2.5% at 2000 fpm |
| Temperature | Yes |
| Data Hold | Yes |
| Min/Max Display | Yes |
| Probe Options | Interchangeable |
| Manometer Template | |
| Type | Digital |
| Max Pressure | 400 mm H₂O |
| Input Type | Dual |
| Units | in H₂O, mm H₂O, psi |
| Measurement | Differential, Gauge |
| Min/Max/Hold | Yes |
| Anemometer Capability | Yes |
Test Equipment General Attributes
| Unique Features | Measures differential & static pressure, velocity, and airflow. User-defined duct shape/size for accuracy. Stores 99 readings. Min/Max/Average/Hold functions. Rugged with holster & strap. |
|---|---|
| Warranty | 2 Years |
| IP Rating | IP40 |
| Product Weight | 1.52 lbs |
| Product Height | 2.99 in |
| Product Length | 10.83 in |
| Product Width | 6.1 in |
| Data Logging | No |
| Calibration | Factory Calibration |
| Battery Type | AA |
| Power Supply | Battery Powered |
| Country of Origin | Taiwan |
| UPC | 095969355315 |
