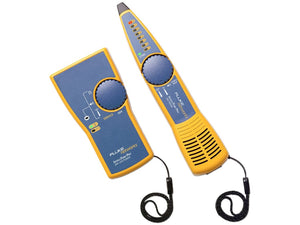

Fluke Networks MT-8200-60-KIT IntelliTone Pro 200 LAN Kit

Rating: 5 (6 Reviews)  |  Catalog: 4586068  |  UPC: 754082127444  |  Model: Fluke Networks MT-8200-60-KIT

Fluke Networks IntelliTone Pro 200 LAN Toner and Probe

Compare

SmartTone Analog & Digital Toning Kit

  • Finds the cables the others can’t
  • IntelliTone digital signal processing rejects noise and false signals
  • SmartTone analog signal precisely isolates individual wire pairs
  • Tones safely and clearly on active networks
  • Tests for continuity
  • Identifies and diagnoses 10/100/1 Gb Ethernet link connectivity with NIC/hub indication
  • Verifies twisted-pair installation with CableMap capability which identifies common cable miswire

Description

The Fluke Networks MT-8200-60-KIT IntelliTone Pro 200 LAN Kit ends cable location confusion with breakthrough digital and analog toning. It rejects noise and false signals, locates cables on active networks, isolates wiring in bundles, verifies continuity, and detects faults such as opens, shorts, and reversed pairs.

IntelliTone™ Pro is the first toner and probe to combine digital and analog toning in one tool, offering powerful cable location and verification technologies in any environment — even active networks. With SmartTone™ analog toning and LED indicators, it simplifies signal interpretation in noisy conditions.

Fluke Networks has applied decades of engineering expertise into IntelliTone technology — a synchronized digital signal-toning process that rapidly zeroes in on cables, helps isolate individual conductors, and verifies end-to-end continuity.

Manufacturer Specs

General

Operating Temperature 32 °F to 104 °F (0 °C to 40 °C)
Storage Temperature -4 °F to +140 °F (-20 °C to +60 °C)
Operating Relative Humidity 95% (10 °C to 35 °C), 75% (35 °C to 40 °C), <50% below 10 °C
Vibration Random, 2 g, 5 Hz – 500 Hz
Shock 1 m drop test with and without module
Safety IEC 61010 Category: None
Altitude 3000 m
EMC EN 61326-1
Battery Type and Life 9 V alkaline (NEDA 1604A / IEC 6LR61); ~20 hours
Applications Copper cabling (STP/UTP), 75/50 Ohm coaxial, 2-conductor control, security, and generic cabling. 10/100/1000 Base-T networks.

Toner

Dimensions 5.54 in x 2.94 in x 1.25 in (14.1 cm x 7.5 cm x 3.2 cm)
Display LED
Control Thumbwheel switch
Toner Interface Main Mod8 port (UTP/STP all 4 pairs), F connector (coax), Banana jacks (2) for 2-conductor wiring
Toner Frequency IntelliTone™ digital signal; Analog SmartTone: 500–1200 Hz, 4 songs
Output Power 5 V p-p
Auto Power Down After 2.5 hours of inactivity

Probe

Dimensions 8.73 in x 1.88 in x 1.26 in (22.2 cm x 4.8 cm x 3.2 cm)
Display (8) LED indicators, Synch LED indicator
Audio IntelliTone: Microprocessor audio files; Analog: Detected toner signal
Control Thumbwheel switch, volume wheel
Tone Detection Detects IntelliTone™ digital signal for Locate/Isolate/CableMap, Analog SmartTone (500–1200 Hz)
Probe Interface Main Mod8 port for CableMap on all 4 pairs UTP/STP
Auto Power Down After 1 hour of inactivity

Test Equipment General Attributes

Product Height 4.30 in
Product Length 11.80 in
Product Width 6.30 in
Shipping Weight 1.2 lbs
HTS/Schedule B Number 9030.33.3400
ECCN Number EAR99
Country of Origin Malaysia
Shipping Height 4.30 in
Shipping Length 11.80 in
Shipping Width 6.30 in
