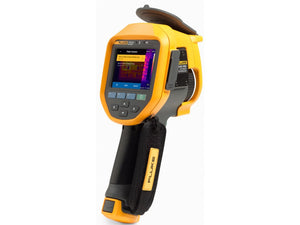

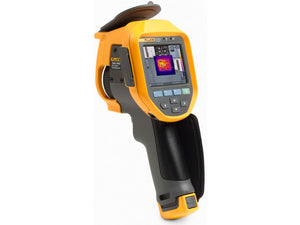

Fluke TI401-PRO 60HZ Thermal Imager
UPC: 095969909440 | Model: Fluke TI401-PRO 60HZ
Fluke TI401 PRO Thermal Imager
Compare
THERMAL IMAGER; HS1; 60 HZ
- Reduce the need to take notes in the field with IR-PhotoNotes and voice annotations
- Highlight out-of-range areas quickly with color alarms
- NETD sensitivity ≤ 0.075 °C at 30 °C target temp (75 mK)
- Sharper on-screen images with multiple rectangle markers and 9 color palettes
- Intuitive touch-screen interface with improved navigation
- Wireless sync with Fluke Connect® system for instant sharing and reporting
- MultiSharp Focus for clear images throughout the field of view
- LaserSharp® Auto Focus with built-in distance meter
- Rugged design built to withstand 2-meter drops
- 3.5-inch touchscreen display
Description
Fluke Ti401 PRO 60HZ Thermal Imager
The Fluke Ti401 PRO Thermal Imager delivers sharp images, intuitive navigation, and wireless connectivity for efficient inspections. Featuring LaserSharp Auto Focus, IR-PhotoNotes™, and Fluke Connect® compatibility, it ensures fast, accurate, and shareable thermal imaging results.
Engineered for industrial and building professionals, this imager combines ruggedness, advanced sensitivity, and multiple color palettes to help identify temperature issues quickly and reliably. With its 640 x 480 detector and intuitive workflows, the Ti401 PRO provides professional-grade imaging clarity and reporting efficiency.
Manufacturer Specifications
| General Specifications | Ti401 PRO | Ti450 PRO |
|---|---|---|
| Detector resolution | 640 x 480 (307,200 pixels) | 320 x 240 (76,800 pixels) or 640 x 480 with SuperResolution |
| SuperResolution | No | Yes, in software (4x data capture) |
| IFOV (Spatial Resolution) | 0.93 mRad, D:S 1065:1 | 1.31 mRad, D:S 753:1 |
| Field of view | 34° H x 24° V | 24° H x 17° V |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| MultiSharp™ Focus | No | Yes |
| LaserSharp® Auto Focus | Yes | |
| Laser distance meter | Yes | |
| Advanced manual focus | Yes | |
| Wireless connectivity | Yes (PC, iOS, Android, WiFi) | |
| Fluke Connect® compatibility | Yes, with upload and asset tagging | |
| IR-Fusion® technology | Yes | |
| Touchscreen display | 3.5 inch LCD, 640 x 480 | |
| Thermal sensitivity (NETD) | ≤ 0.075 °C (75 mK) | ≤ 0.025 °C (25 mK) |
| Digital zoom | No | 2x and 4x |
| Data storage | 4 GB microSD, 4 GB internal, USB, Fluke Connect® Cloud | |
| Image formats | BMP, JPEG, IS2 | |
| Software | SmartView® analysis and reporting software | |
| Voice annotation | Up to 60s per image | |
| IR-PhotoNotes™ | 2 images | 5 images |
| Video recording | No | Standard and radiometric |
| Remote control | Yes (via Fluke Connect) | Yes (via SmartView/Fluke Connect) |
| Auto capture | No | Yes |
| Battery | 2–3 hrs per pack | 3–4 hrs per pack |
| Battery charge time | 2.5 hrs | |
| Charging system | Two-bay charger or in-imager, 12V adapter | |
| AC operation | Yes, with included adapter | |
| Power saving | Selectable sleep/power off | |
| Temperature range | -20 °C to +650 °C (-4 °F to +1202 °F) | -10 °C to 1500 °C (14 °F to 2732 °F) |
| Accuracy | ± 2 °C or 2 % | |
| On-screen corrections | Emissivity, background temp, transmission | |
| Color palettes | 9 standard + 9 ultra-contrast | |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) | |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) | |
| Humidity | 10%–95% non-condensing | |
| Drop | 2 m (6.5 ft) | |
| Size (H × W × L) | 27.7 × 12.2 × 16.7 cm (10.9 × 4.8 × 6.5 in) | |
| Weight | 1.04 kg (2.3 lb) | |
| Enclosure rating | IP54 | |
| Warranty | 2 years (standard, extended available) | |
| Languages | Czech, Dutch, English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Turkish, more | |
| RoHS Compliant | Yes | |
Tech Specs
| Thermal Imagers / Building and Industrial Thermal Imagers Template | |
|---|---|
| Detector Size | 640 x 480 Sensor |
| Thermal Sensitivity | 75 mK (NETD) |
| Temperature Range Max | +1202 °F |
| Temperature Range Min | -4 °F |
| Image Frequency | 60 Hz |
| Field of View | 34° × 24° |
| Screen Size | 3.5 IN |
| IR/Overlay Fusion | Yes |
| Video Output | No |
| Focus | Auto Focus |
| Laser Spot | Yes |
| Picture in Picture | Yes |
| Video Recording | No |
| Touchscreen Display | Yes |
| Minimum Focus Distance | 6 IN (0.152 M) |
| Accuracy | ± 2 °C or 2 % |
| Battery Operating Time | ~3 hours |
| Camera Light | Yes |
| IR Digital Zoom | No |
| Voice Annotation | Yes |
| Intrinsically Safe | No |
| Data Logging | Yes |
Test Equipment General Attributes
| Unique Features | LaserSharp™ Auto Focus, Smart Lenses, IR-Fusion™ technology, One-handed operation, IR-PhotoNotes™ (2 images), 9 standard palettes, Expandable measurement box, Rugged hard case, 2 m drop tested |
|---|---|
| Warranty | 2 YEARS |
| Warranty Details | Extended warranties available |
| Safety Approval | RoHS |
| Interfaces I/O | HDMI, USB |
| Storage | Micro SD |
| IP Rating | IP54 |
| Product Weight | 2.3 LBS |
| Product Height | 10.9 IN |
| Product Length | 6.5 IN |
| Product Width | 4.8 IN |
| HTS/Schedule B Number | 9027504020 |
| ECCN Number | 6A003.b.4.b |
| Calibration Included | None |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Dimensions | 15.35 × 12.20 × 11.02 IN |
