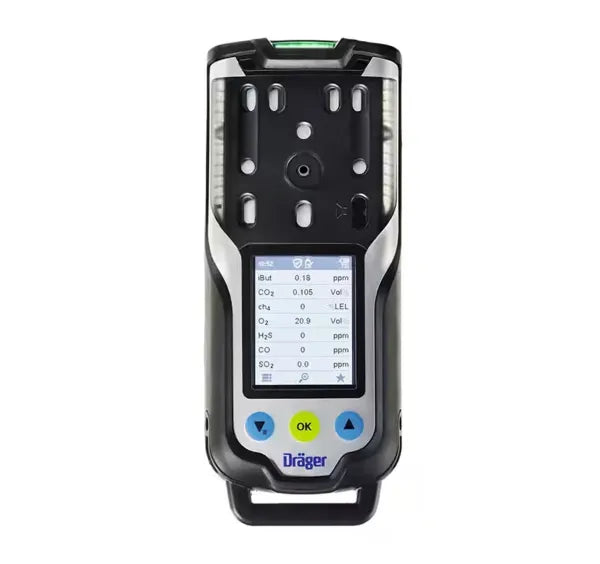

Draeger X-AM 8000 Multi Gas Detector
The Draeger X-AM 8000 Multi Gas Detector is a handheld multi-gas monitor for teams that need to verify air conditions prior to any individual entering the tank, vessel, or pit. This tool checks up to seven different gas types simultaneously, including flammable gases, oxygen, toxic gases, and volatile organic compounds. Thus, this device is capable of fulfilling what used to require two or three different units.
This instrument uses an internal pump to take samples up to 45 meters away via a hose. Thanks to this design feature, it allows the user to remain outside of the area being tested. This housing is protected from dust and water by IP68 rating. Also, this unit features a three-key control scheme, designed for use with one gloved hand. Charging system is inductive, meaning that there are no metal contacts prone to corrosion. This is important in Gulf Coast working environments.
Standard Features
- Up to seven gases detected simultaneously via 5 gas sensors
- Integrated pump draws sample via hose up to 45 m (about 148 ft)
- Quick change between modes (pump and diffusion mode)
- Three buttons make possible one-hand operation
- Color screen which is visible in daylight conditions
- User profiles and masking of unused channels
- Automatic range adjustment for methane
- PID and Infrared sensors for measuring total hydrocarbons and VOCs
- Housing with IP68 protection against dust, splashes and washing
- Terminal corrosion-proof contactless inductive charging
- Bump test and calibration via Dräger X-dock®
Advanced Technology Benefits
- Pre-entry scanning technology that assists in determining if the environment is safe enough for the team to enter
- Pre-tube technology specifically designed for detecting benzene
- Logging of events with locked data, which will come in handy in case of investigation
- Red, yellow, and green status indicators that are clearly visible
- Horn, visual alarm, and vibration that ensure that an alarm will not go unnoticed
- In-built memory that keeps track of about 400 hours of operation
The Draeger X-AM 8000 is engineered for industries such as petrochemical, chemical, oil & gas, and confined space monitoring, where a reliable, portable multi-gas detector is essential. As a professional multi gas monitor, its durability, precision, and ease of use make this Draeger gas detector one of the most trusted multi-gas detection device solutions for ensuring workplace safety across demanding industrial environments.
Specifications
| Type | Multi-Gas Detector |
| Gases Detected | Up to 7 (O₂, toxic gases, combustible gases, VOCs) |
| Dimensions | 179 x 77 x 42 mm |
| Weight | Approx. 495–550 g (depending on configuration) |
| Operating Temperature | -20 °C to +50 °C |
| Pressure Range | 700–1300 hPa |
| Humidity Range | 10–90 % RH (short term up to 95%) |
| Alarms | Visual (LEDs), Audible (100 dB), Vibrating |
| Ingress Protection | IP68 |
| Battery | Rechargeable Lithium-ion, inductive charging |
| Data Storage | 24 MB (~400 hours) |
| Pump Operation | Max. hose length 45 m |
| Approvals | ATEX / IECEx, EAC, cCSAus, ANZEx, DNV GL |
| Warranty | 3 Years |
Why Buy the Dräger X-am 8000 from Guardian Safety Supply?
If you are looking to buy a Dräger X-am 8000, Guardian Safety Supply gives you a real quote built around your gas list, not a generic price. Tell us whether you need PID for VOCs or benzene, IR for hydrocarbons, or standard toxic sensors, and we will configure the multi gas detector to match. Refineries, chemical plants, and confined space teams across Texas, Louisiana, and the rest of the country trust the X-am 8000 as their top-tier portable gas detector with pump.
Request a Quote: Email sales@guardiansafetysupply.com or call 302-786-5351 with your sensor list and quantity. We ship across the USA and to Muscat and Oman.
FAQ
What Buyers Ask About the Dräger X-am 8000
What is the price of the Dräger X-am 8000?
It varies according to the type of sensors used, be it a PID sensor or an infrared sensor. We quote on request. Send us your list of gases and their quantity at Guardian Safety Supply and get a quote.
How many gases can this device measure at one time?
Up to seven gases at one time. It has a capacity of five sensors, which allows measuring flammables, oxygen, toxics and VOCs all at once.
What is the maximum hose length that can be attached with the pump?
It uses the inbuilt pump to handle up to a 45-meter hose. The pump/diffusion mode changes allow using the device for both remote pre-entry sampling and regular personal detection.
How often does it require calibration?
This depends on the type of sensors used as well as your workplace procedures. Some groups perform complete calibrations once every 6 to 12 months, with bump tests done before each shift. Both of these can be automated using a Dräger X-dock.
Is the X-am 8000 able to withstand extreme temperatures?
Yes. It is designed for harsh industrial environments and operates across a wide temperature range, depending on the sensors installed. Please contact us to confirm the exact limits for your sensor configuration.
Please Note: The Draeger X-AM 8000 is a professional instrument for measuring safety parameters. Please conduct regular bump tests and calibration of the device; preferably, using the Dräger X-dock. Ensure that your configuration has the proper approvals. As a calibrated device, it cannot be returned.
Please contact us if you require assistance or cannot find the configuration you need.Ships from the U.S. to all 50 states, including Houston, Baton Rouge, and Lake Charles. We also ship to Muscat and across Oman.
Draeger X-AM 8000 Multi Gas Detector
The Draeger X-AM 8000 Multi Gas Detector is a handheld multi-gas monitor for teams that need to verify air conditions prior to any individual entering the tank, vessel, or pit. This tool checks up to seven different gas types simultaneously, including flammable gases, oxygen, toxic gases, and volatile organic compounds. Thus, this device is capable of fulfilling what used to require two or three different units.
This instrument uses an internal pump to take samples up to 45 meters away via a hose. Thanks to this design feature, it allows the user to remain outside of the area being tested. This housing is protected from dust and water by IP68 rating. Also, this unit features a three-key control scheme, designed for use with one gloved hand. Charging system is inductive, meaning that there are no metal contacts prone to corrosion. This is important in Gulf Coast working environments.
Standard Features
- Up to seven gases detected simultaneously via 5 gas sensors
- Integrated pump draws sample via hose up to 45 m (about 148 ft)
- Quick change between modes (pump and diffusion mode)
- Three buttons make possible one-hand operation
- Color screen which is visible in daylight conditions
- User profiles and masking of unused channels
- Automatic range adjustment for methane
- PID and Infrared sensors for measuring total hydrocarbons and VOCs
- Housing with IP68 protection against dust, splashes and washing
- Terminal corrosion-proof contactless inductive charging
- Bump test and calibration via Dräger X-dock®
Advanced Technology Benefits
- Pre-entry scanning technology that assists in determining if the environment is safe enough for the team to enter
- Pre-tube technology specifically designed for detecting benzene
- Logging of events with locked data, which will come in handy in case of investigation
- Red, yellow, and green status indicators that are clearly visible
- Horn, visual alarm, and vibration that ensure that an alarm will not go unnoticed
- In-built memory that keeps track of about 400 hours of operation
The Draeger X-AM 8000 is engineered for industries such as petrochemical, chemical, oil & gas, and confined space monitoring, where a reliable, portable multi-gas detector is essential. As a professional multi gas monitor, its durability, precision, and ease of use make this Draeger gas detector one of the most trusted multi-gas detection device solutions for ensuring workplace safety across demanding industrial environments.
Specifications
| Type | Multi-Gas Detector |
| Gases Detected | Up to 7 (O₂, toxic gases, combustible gases, VOCs) |
| Dimensions | 179 x 77 x 42 mm |
| Weight | Approx. 495–550 g (depending on configuration) |
| Operating Temperature | -20 °C to +50 °C |
| Pressure Range | 700–1300 hPa |
| Humidity Range | 10–90 % RH (short term up to 95%) |
| Alarms | Visual (LEDs), Audible (100 dB), Vibrating |
| Ingress Protection | IP68 |
| Battery | Rechargeable Lithium-ion, inductive charging |
| Data Storage | 24 MB (~400 hours) |
| Pump Operation | Max. hose length 45 m |
| Approvals | ATEX / IECEx, EAC, cCSAus, ANZEx, DNV GL |
| Warranty | 3 Years |
Why Buy the Dräger X-am 8000 from Guardian Safety Supply?
If you are looking to buy a Dräger X-am 8000, Guardian Safety Supply gives you a real quote built around your gas list, not a generic price. Tell us whether you need PID for VOCs or benzene, IR for hydrocarbons, or standard toxic sensors, and we will configure the multi gas detector to match. Refineries, chemical plants, and confined space teams across Texas, Louisiana, and the rest of the country trust the X-am 8000 as their top-tier portable gas detector with pump.
Request a Quote: Email sales@guardiansafetysupply.com or call 302-786-5351 with your sensor list and quantity. We ship across the USA and to Muscat and Oman.
FAQ
What Buyers Ask About the Dräger X-am 8000
What is the price of the Dräger X-am 8000?
It varies according to the type of sensors used, be it a PID sensor or an infrared sensor. We quote on request. Send us your list of gases and their quantity at Guardian Safety Supply and get a quote.
How many gases can this device measure at one time?
Up to seven gases at one time. It has a capacity of five sensors, which allows measuring flammables, oxygen, toxics and VOCs all at once.
What is the maximum hose length that can be attached with the pump?
It uses the inbuilt pump to handle up to a 45-meter hose. The pump/diffusion mode changes allow using the device for both remote pre-entry sampling and regular personal detection.
How often does it require calibration?
This depends on the type of sensors used as well as your workplace procedures. Some groups perform complete calibrations once every 6 to 12 months, with bump tests done before each shift. Both of these can be automated using a Dräger X-dock.
Is the X-am 8000 able to withstand extreme temperatures?
Yes. It is designed for harsh industrial environments and operates across a wide temperature range, depending on the sensors installed. Please contact us to confirm the exact limits for your sensor configuration.
Please Note: The Draeger X-AM 8000 is a professional instrument for measuring safety parameters. Please conduct regular bump tests and calibration of the device; preferably, using the Dräger X-dock. Ensure that your configuration has the proper approvals. As a calibrated device, it cannot be returned.
Please contact us if you require assistance or cannot find the configuration you need.Ships from the U.S. to all 50 states, including Houston, Baton Rouge, and Lake Charles. We also ship to Muscat and across Oman.
