Fluke 289/FVF - Fluke View Forms Combo Kit with 289 Multimeter
Rating: 5 (31 Reviews) | Catalog: 3036206 | UPC: 095969417143 | Model: Fluke 289/FVF
Fluke 289/FVF Digital Multimeter Kit
Compare
Fluke 289/FVF True-RMS Industrial Logging Digital Multimeter Combo Kit with TrendCapture and FlukeView Software

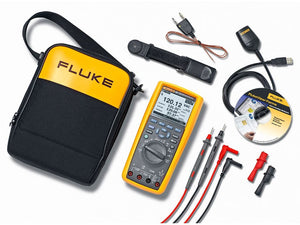

- Package with Fluke 289 and FlukeView Forms software

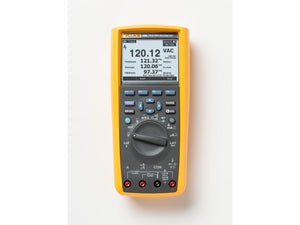

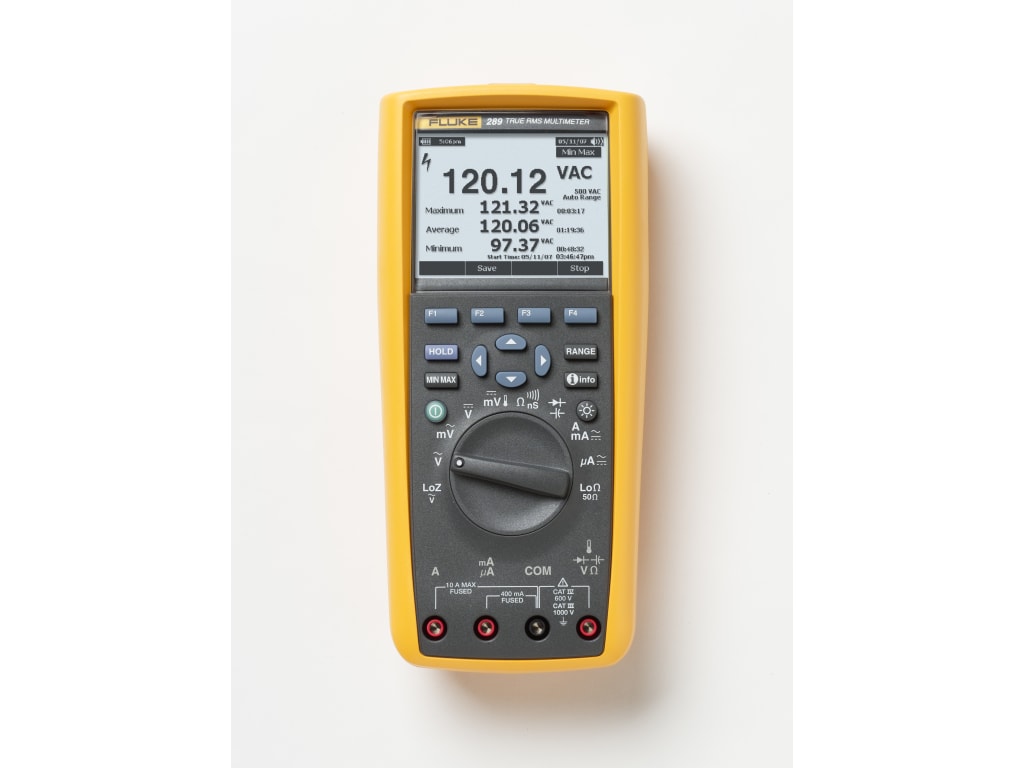

- Fluke 289 is a high performance industrial logging multimeter
- Low ohm capability - useful for measuring and comparing differences in motor winding or contact resistance
- LoZ volts - Low impedance voltage function for eliminating ghost voltages
- Low Pass filter for adjustable speed motor drives and noisy equipment
- Communicates with Fluke Connect via IR3000FC connector (sold separately)
- FlukeView Forms software: create professional reports, graphs and tables
- Overlay logged data from six meters or time periods for analysis
Description
Fluke 289/FVF
This combo kit includes the powerful Fluke 289 Industrial Logging Multimeter and FlukeView Forms software. The 289 provides advanced logging, low impedance voltage (LoZ) to eliminate ghost voltages, and a low-pass filter for accurate readings on adjustable speed drives. With FlukeView Forms, users can transform captured data into professional reports, overlay data sets, and analyze trends. Ideal for industrial applications, troubleshooting, and long-term monitoring.
Manufacturer Specs
| DC Volts | 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V @ 0.025% accuracy |
|---|---|
| AC Volts | 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V @ 0.4% accuracy (true-RMS) |
| DC Current | 500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A @ 0.15% accuracy |
| AC Current | 500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A @ 0.7% accuracy (true-RMS) |
| Temperature | -200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F) @ 1.0% accuracy (excluding probe) |
| Resistance | 50.000 Ω (289 only), 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ @ 0.05% accuracy |
| Capacitance | 1.000 nF to 100.00 mF @ 1.0% accuracy |
| Frequency | 99.999 Hz to 999.99 kHz @ 0.005% + 1 accuracy |
Tech Specs
Multimeters Template
| Style | Hand-Held |
|---|---|
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 1 µV (0.001 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 µV (0.001 mV) |
| Maximum Current AC | 10 A |
| Minimum Current AC | 0.01 µA (0.00001 mA) |
| Resolution AC Current | 0.01 µA (0.00001 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 0.01 µA (0.00001 mA) |
| Resolution DC Current | 0.01 µA (0.00001 mA) |
| Basic Accuracy V DC | 0.025% |
| # Digit Display | 4.5 |
| Counts | 50000 |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | Yes |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1000 V |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
Test Equipment General Attributes
| Unique Features | • Logging with TrendCapture: store 10,000+ readings for 200+ hours • LoZ mode eliminates ghost voltages • Low-Pass Filter for noisy motor drives • Overlay logged data from up to 6 meters or time ranges • FlukeView Forms software integration |
|---|---|
| Warranty | 10 YEARS (Limited Lifetime Warranty) |
| Safety Approval | CSA |
| Interfaces I/O | IR |
| Storage | Internal Memory |
| Product Weight | 1.6 LBS |
| Product Height | 2.38 IN |
| Product Length | 8.75 IN |
| Product Width | 4.03 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030.32.0000 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
